Front Bumper: Front: Components

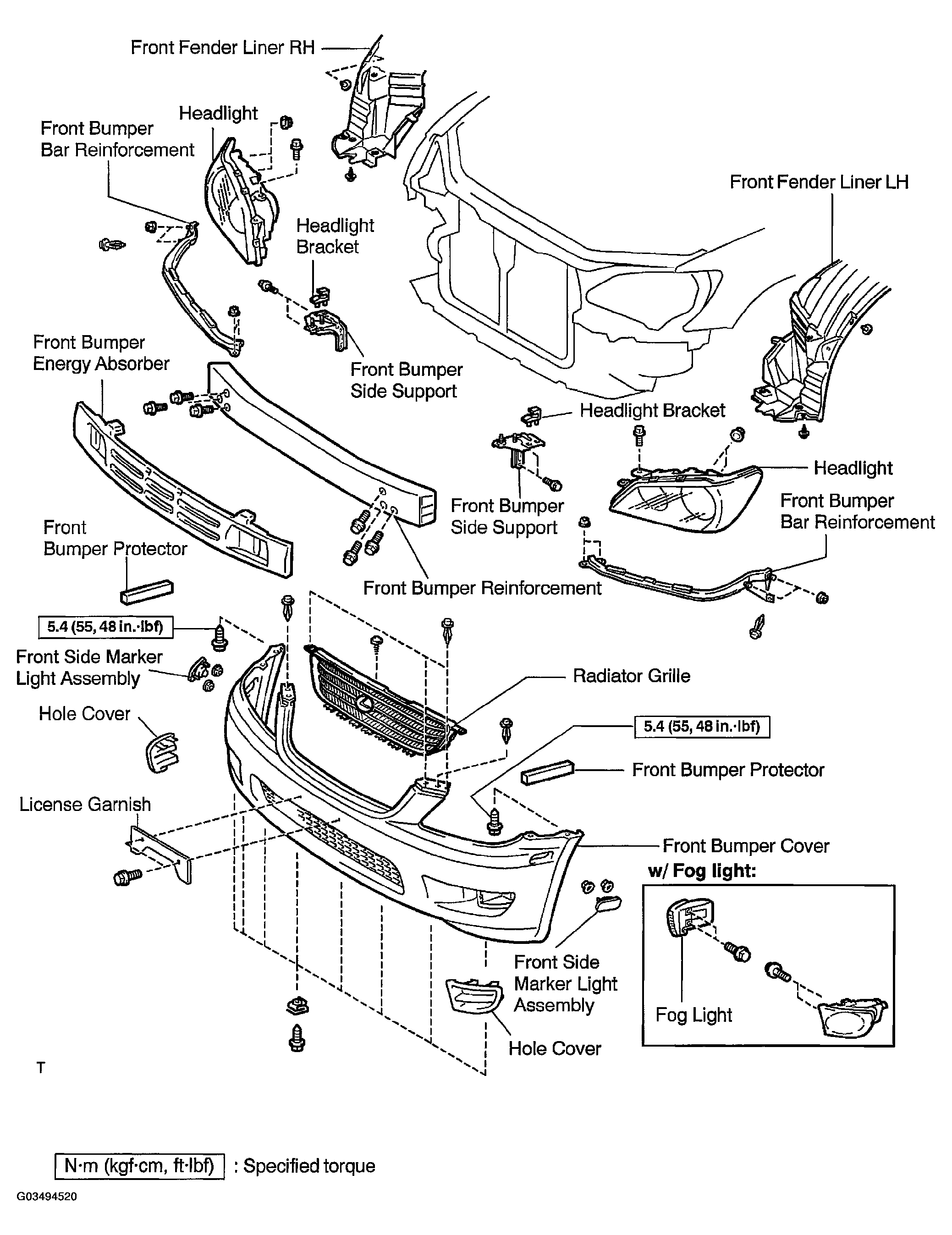

Fig 1: Identifying Front Bumper Components (Sedan Type)
G03494520Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

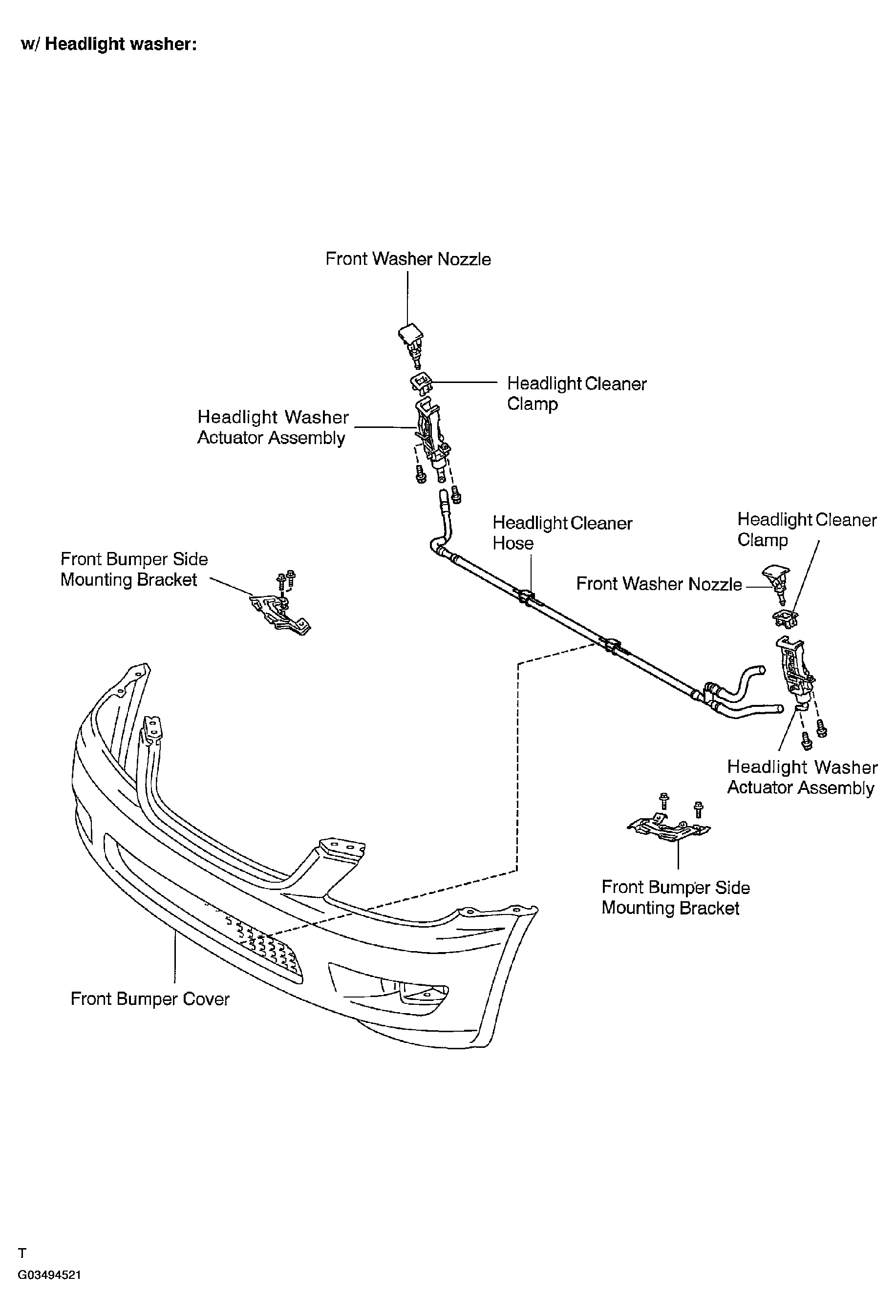

Fig 2: Identifying Front Bumper Components (W/Head Light Washer)
G03494521Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

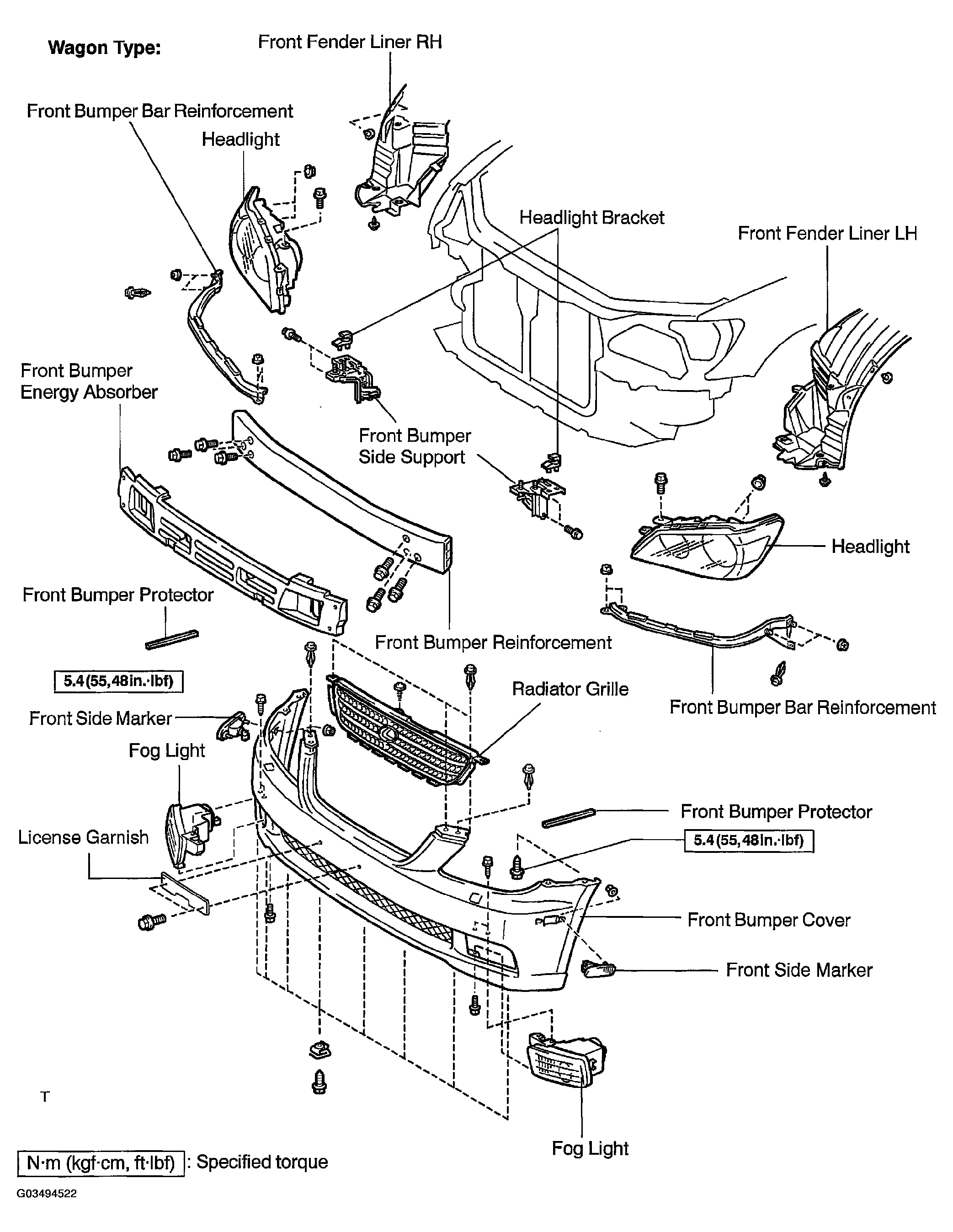

Fig 3: Identifying Front Bumper Components (Wagon Type)
G03494522Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

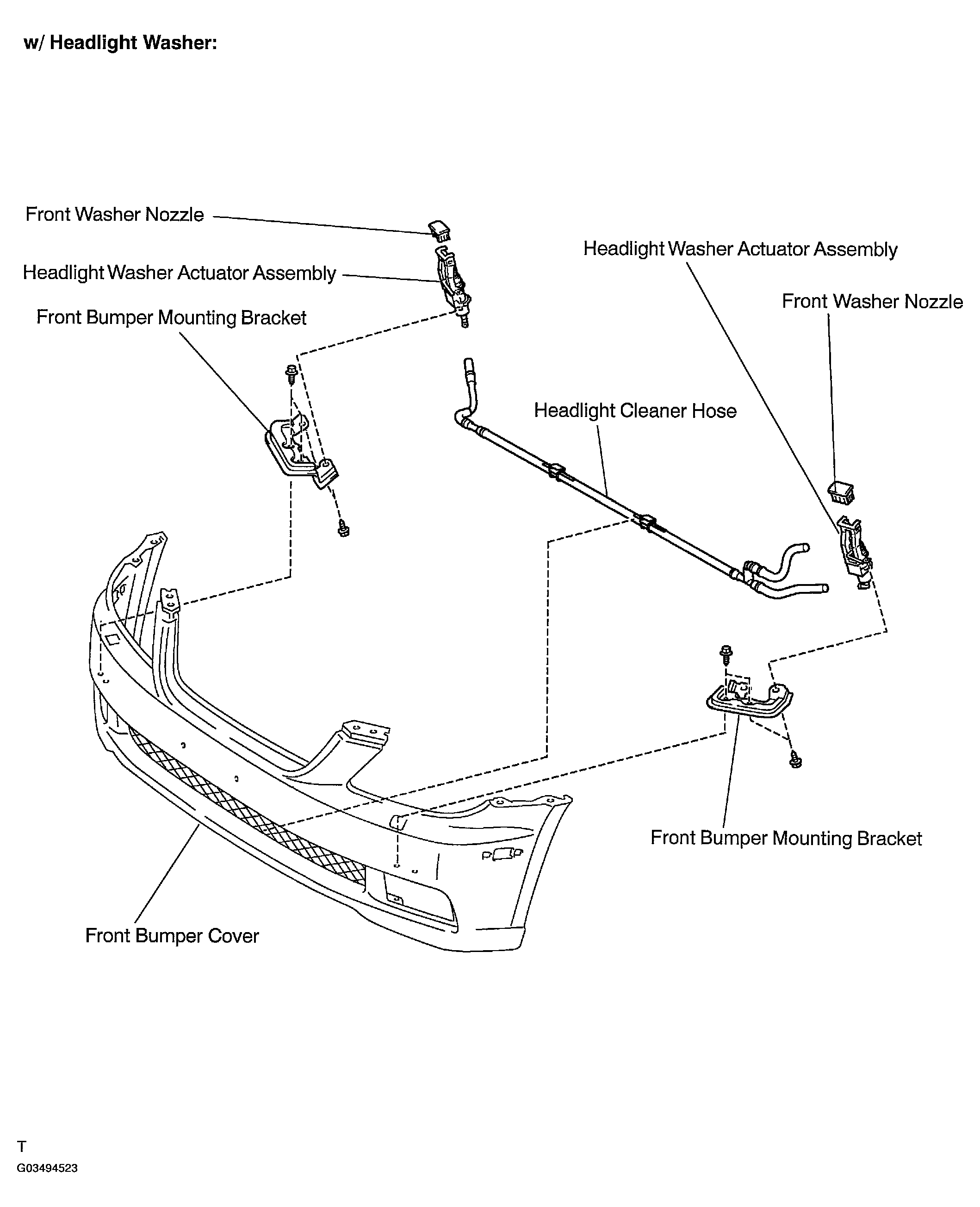

Fig 4: Identifying Front Bumper Components (W/Head Light Washer)
G03494523Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
