Park/Neutral Position Switch ASSY: Replacement

1. Using a screwdriver, unstake the lock washer.
2. Remove the nut, lock washer and grommet.
3. Remove the bolt and park/neutral position switch.

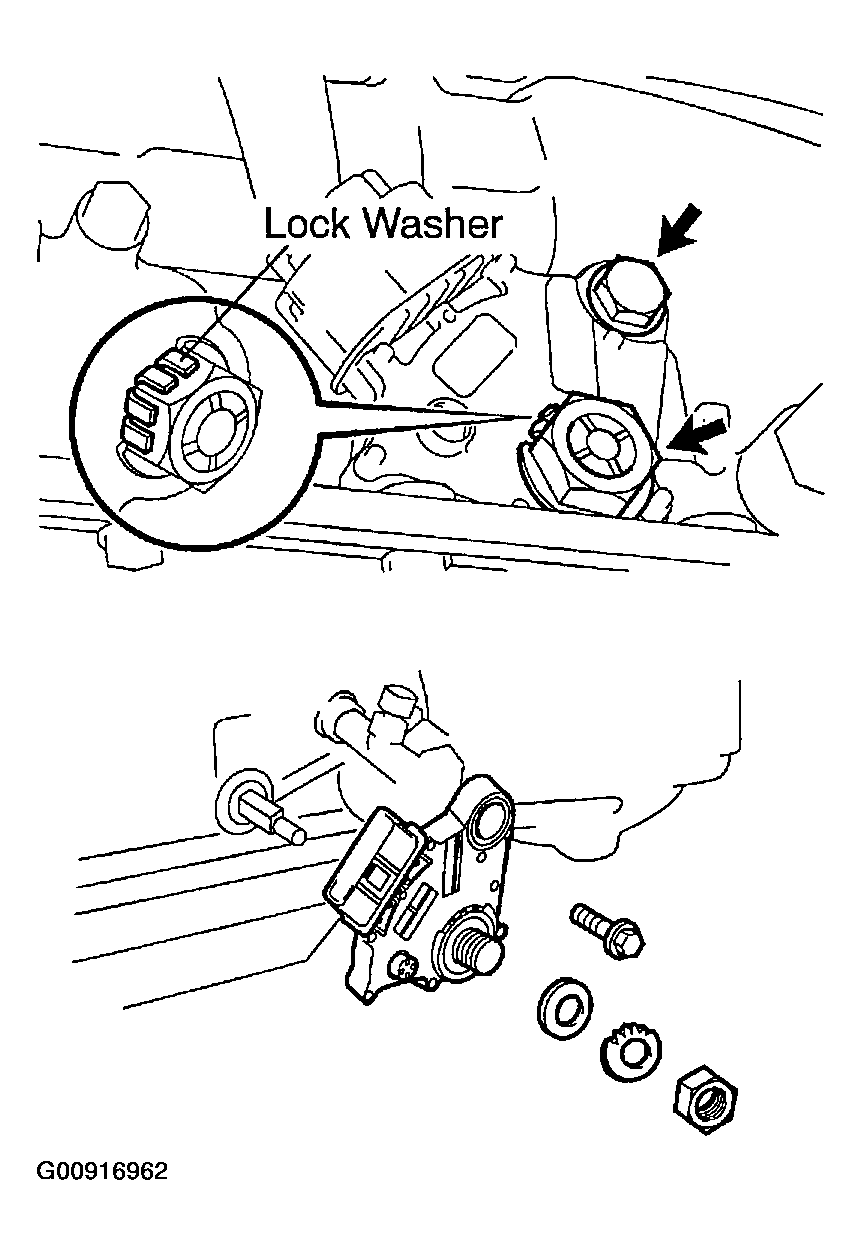

Fig 2: Installing Park/Neutral Position Switch Assy

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the park/neutral position switch onto the manual valve lever shaft and temporarily tighten the adjusting bolt.
2. Install the grommet and a new lock washer. Install the nut.
   1. Torque: 6.9 N.m (70 kgf-cm, 61 ft-lbf)
3. Using the manual valve lever shaft, fully turn the manual lever shaft back and back off 2 notches. It is now in neutral.
4. Align the neutral basic line with the switch groove, and tighten the adjusting bolt.
   1. Torque: 13 N.m (130 kgf-cm, 9 ft-lbf)
5. Bend the tabs of the lock washer.

HINT:

Bend at least 2 of the lock washer tabs.
