Floor Shift ASSY: Components

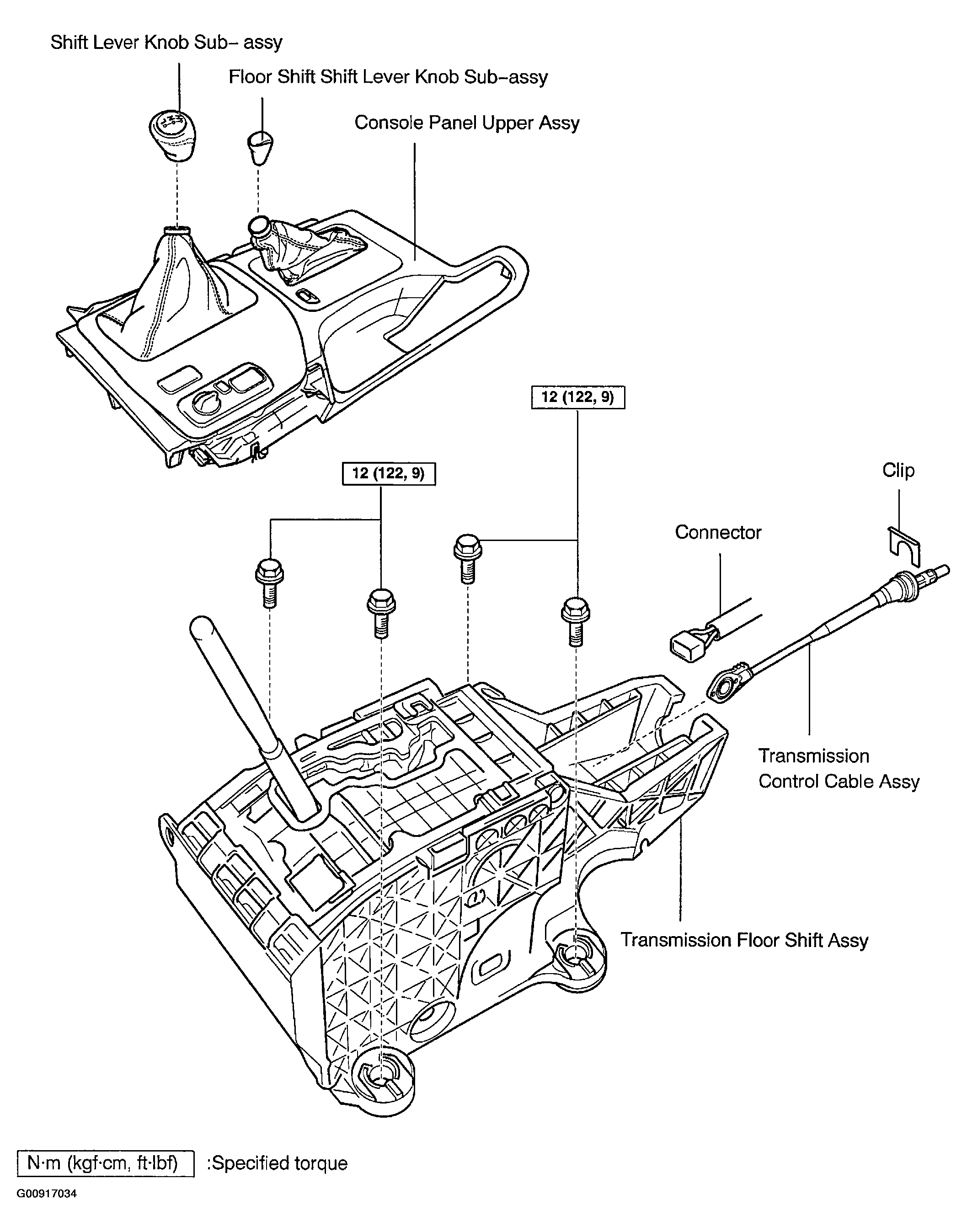

Fig 1: Identifying Components Of Floor Shift Assy (1 Of 2)
G00917034Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

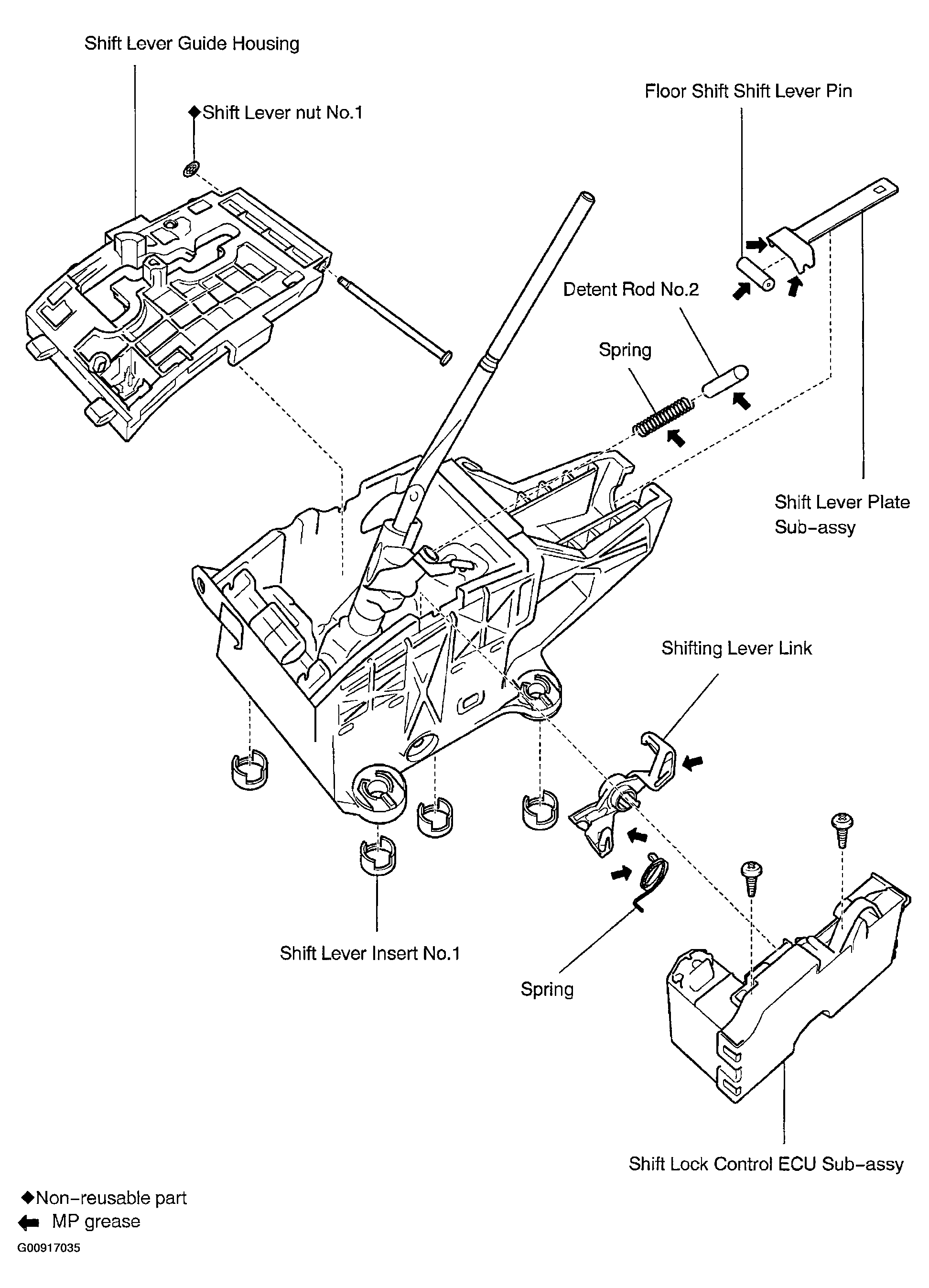

Fig 2: Identifying Components Of Floor Shift Assy (2 Of 2)
G00917035Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
