Suspension Control System: Components

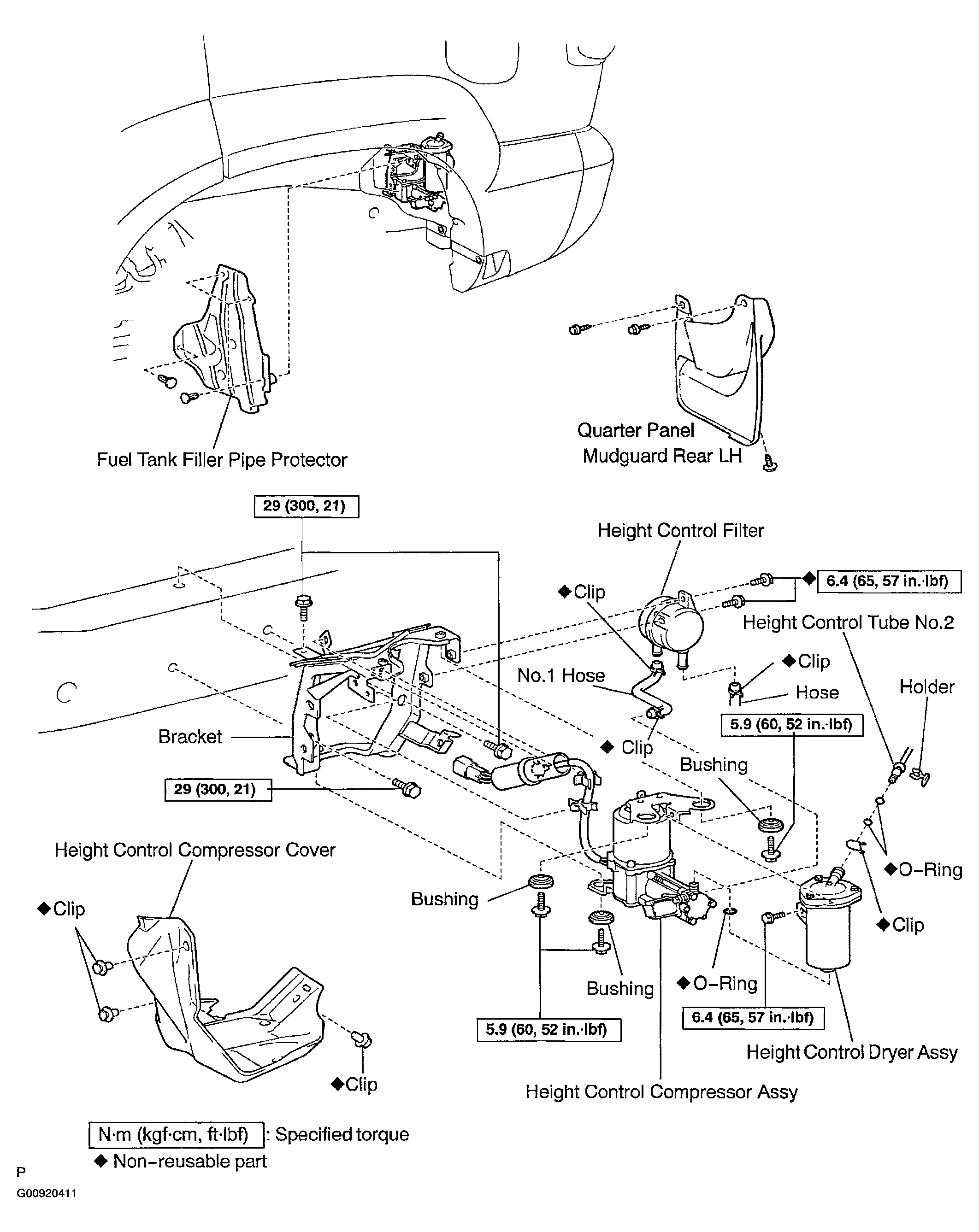

Fig 1: Identifying Suspension Control System Components (1 Of 3)
G00920411Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

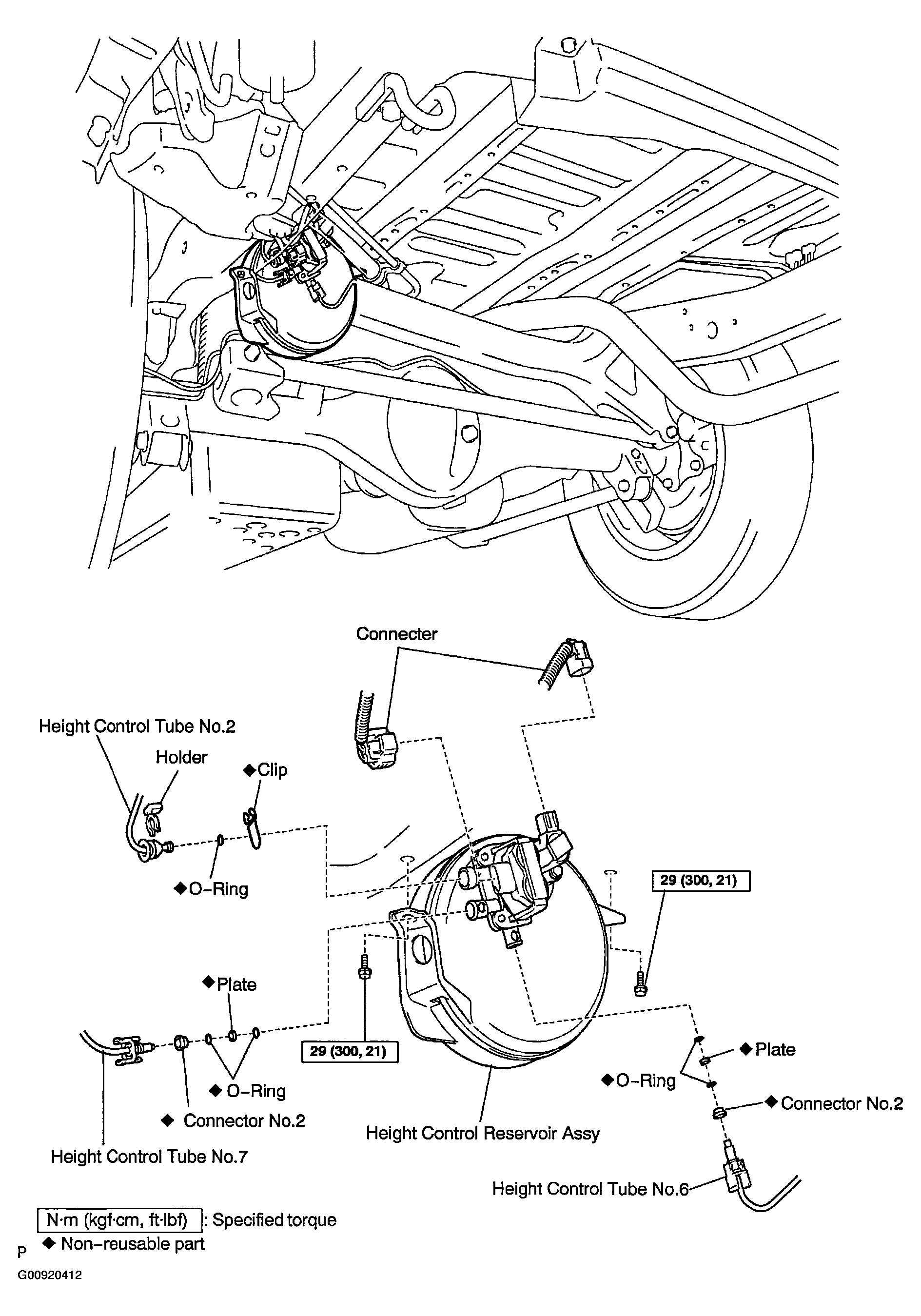

Fig 2: Identifying Suspension Control System Components (2 Of 3)
G00920412Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

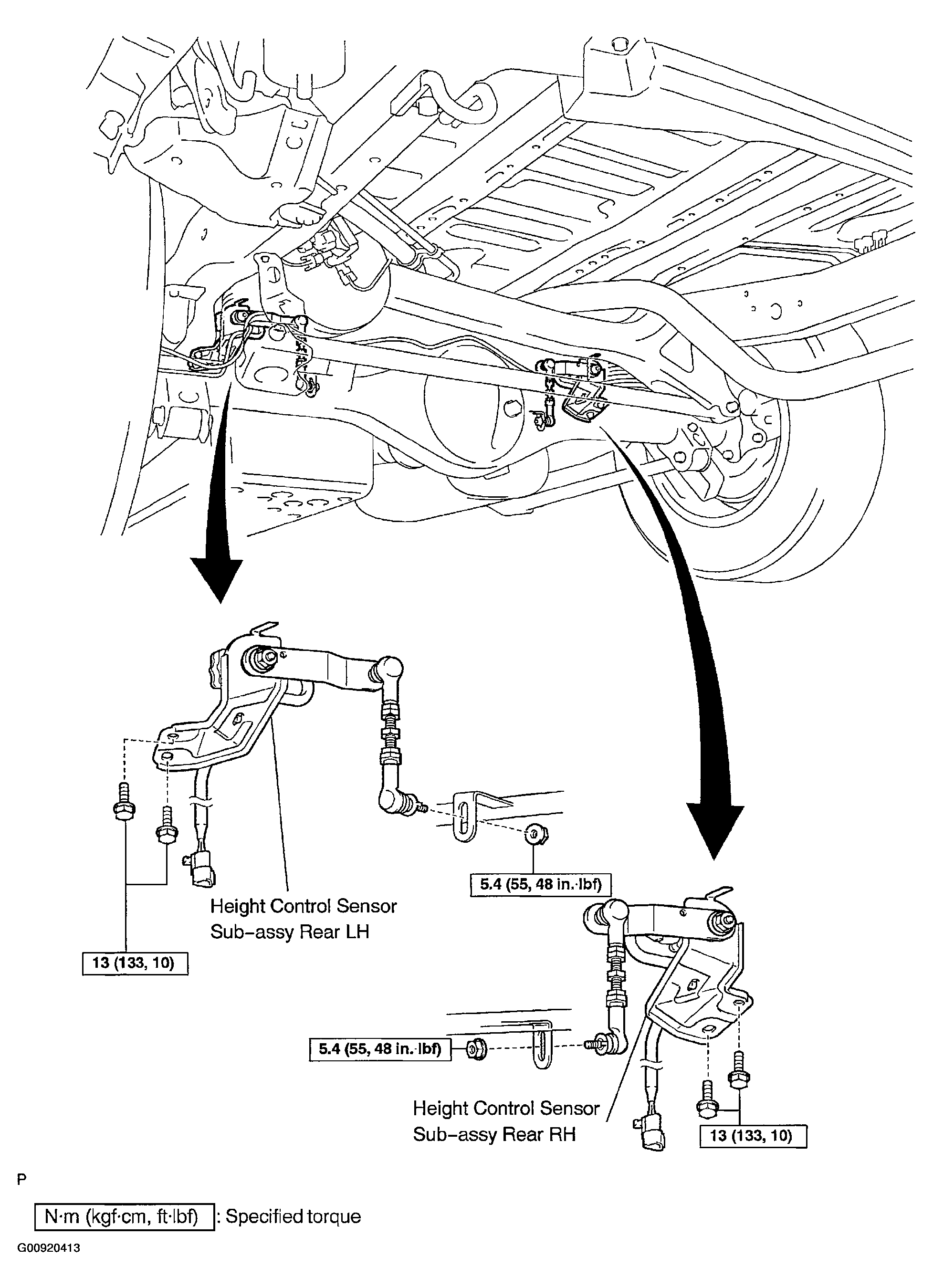

Fig 3: Identifying Suspension Control System Components (3 Of 3)
G00920413Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
