Multiplex Tilt & Telescopic Ecu: Replacement

  1. REMOVE INSTRUMENT PANEL SAFETY PAD SUB-ASSY
  2. REMOVE INSTRUMENT PANEL LOWER LH
  3. REMOVE MULTIPLEX TILT & TELESCOPIC ECU
    1. Remove the 2 screws and multiplex tilt & telescopic ECU.

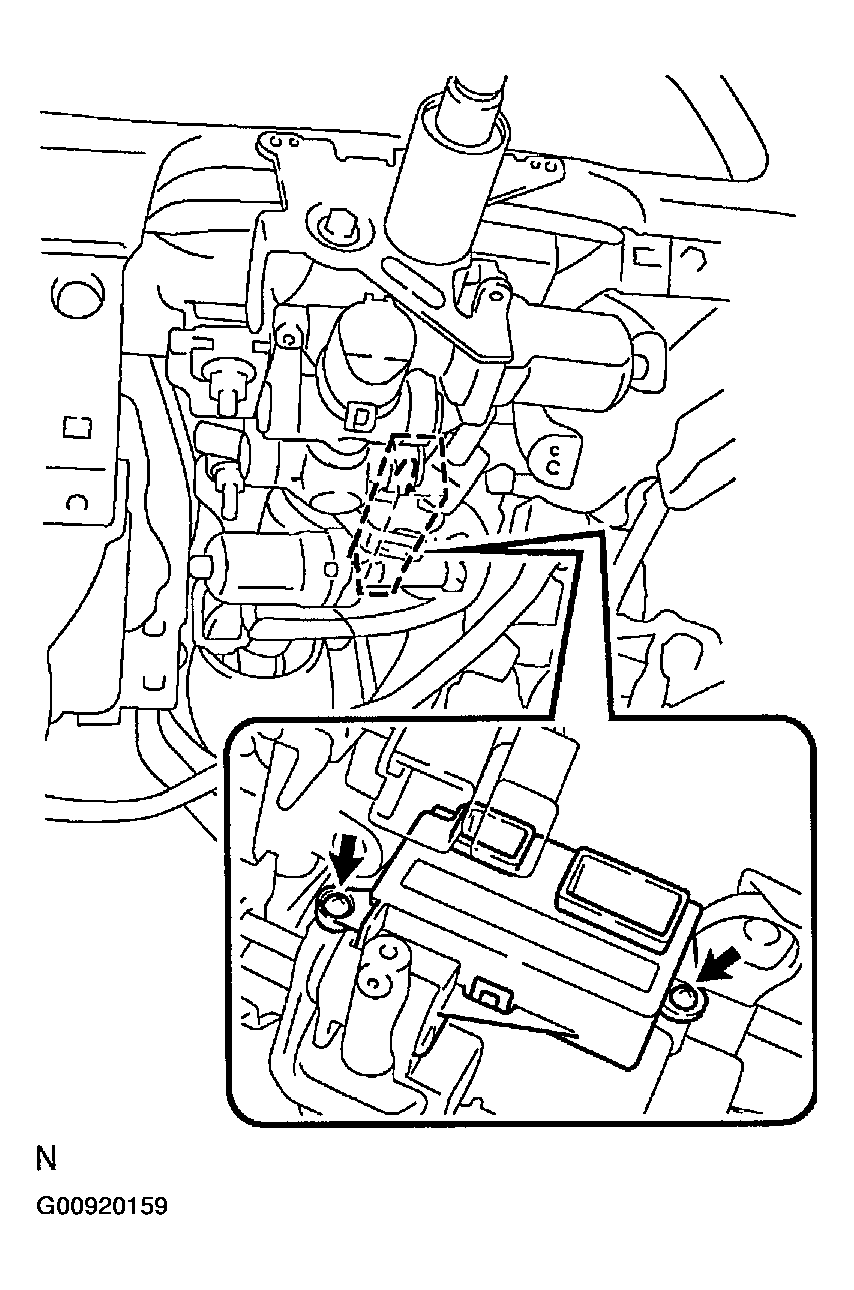

      Fig 1: Removing Multiplex Tilt & Telescopic ECU
      G00920159Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL MULTIPLEX TILT & TELESCOPIC ECU
    1. Install the multiplex tilt & telescopic ECU with the 2 Torx screws.
  5. INSTALL INSTRUMENT PANEL LOWER LH
  6. INSTALL INSTRUMENT PANEL SAFETY PAD SUB-ASSY
