Throttle W/Motor Body ASSY (2UZ-FE): Components

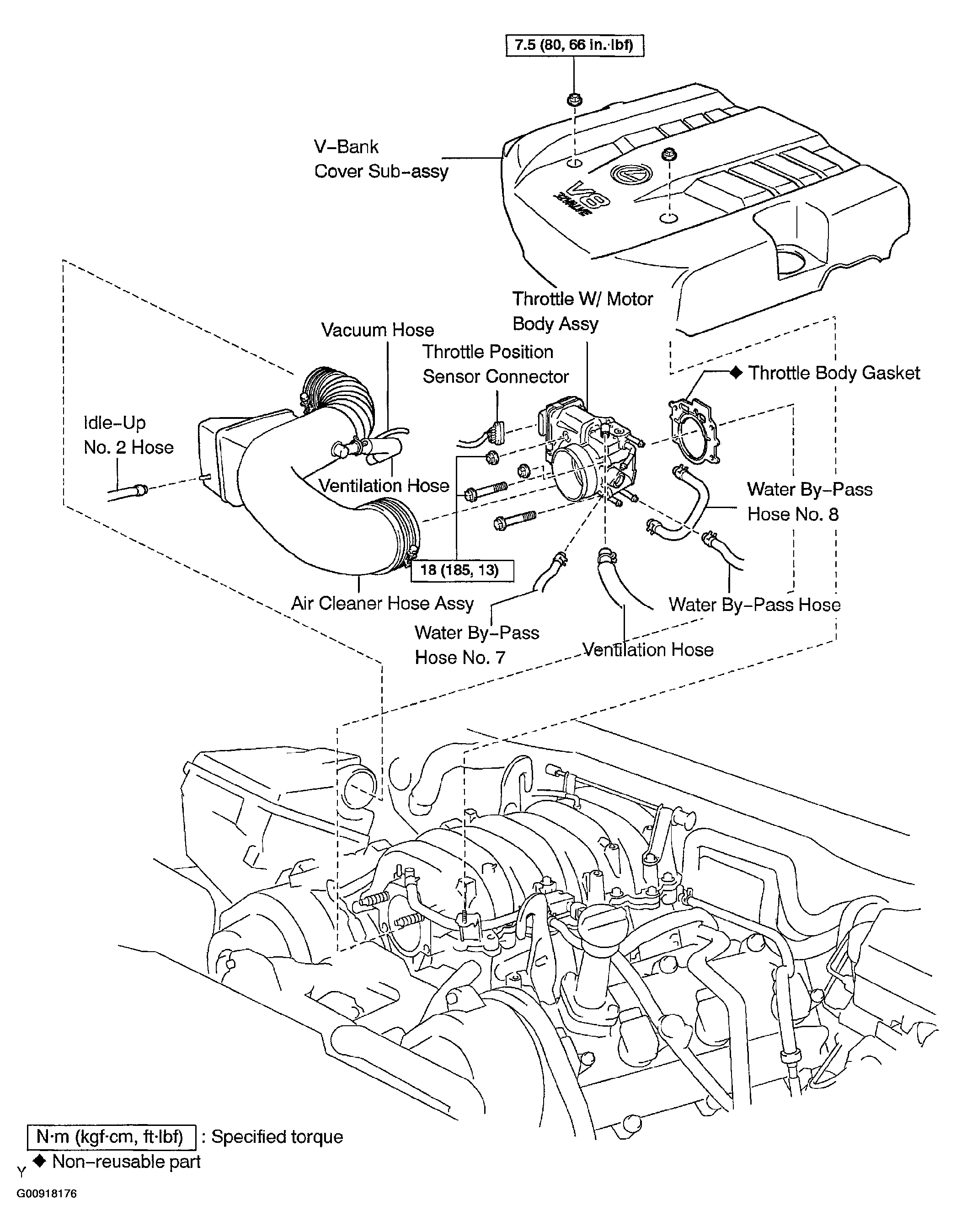

Fig 1: Identifying Throttle W/Motor Body Assembly Components

G00918176

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
