SFI System (2UZ-FE) (Diagnostics): Location

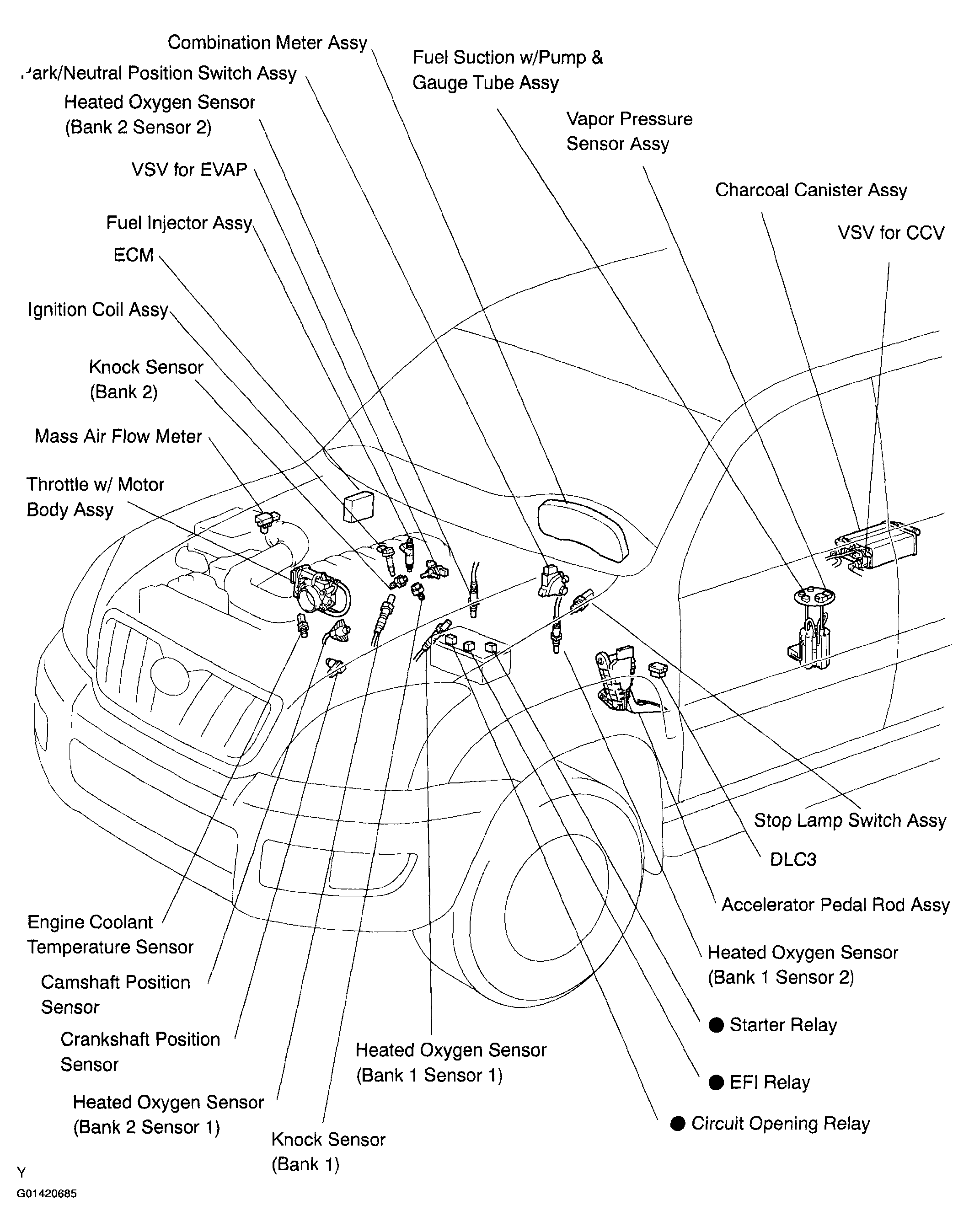

Fig 1: Identifying Location Of SFI System Components

G01420685

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
