Fail-Safe Chart

If any of the following codes are recorded, the ECM enters the fail-safe mode.

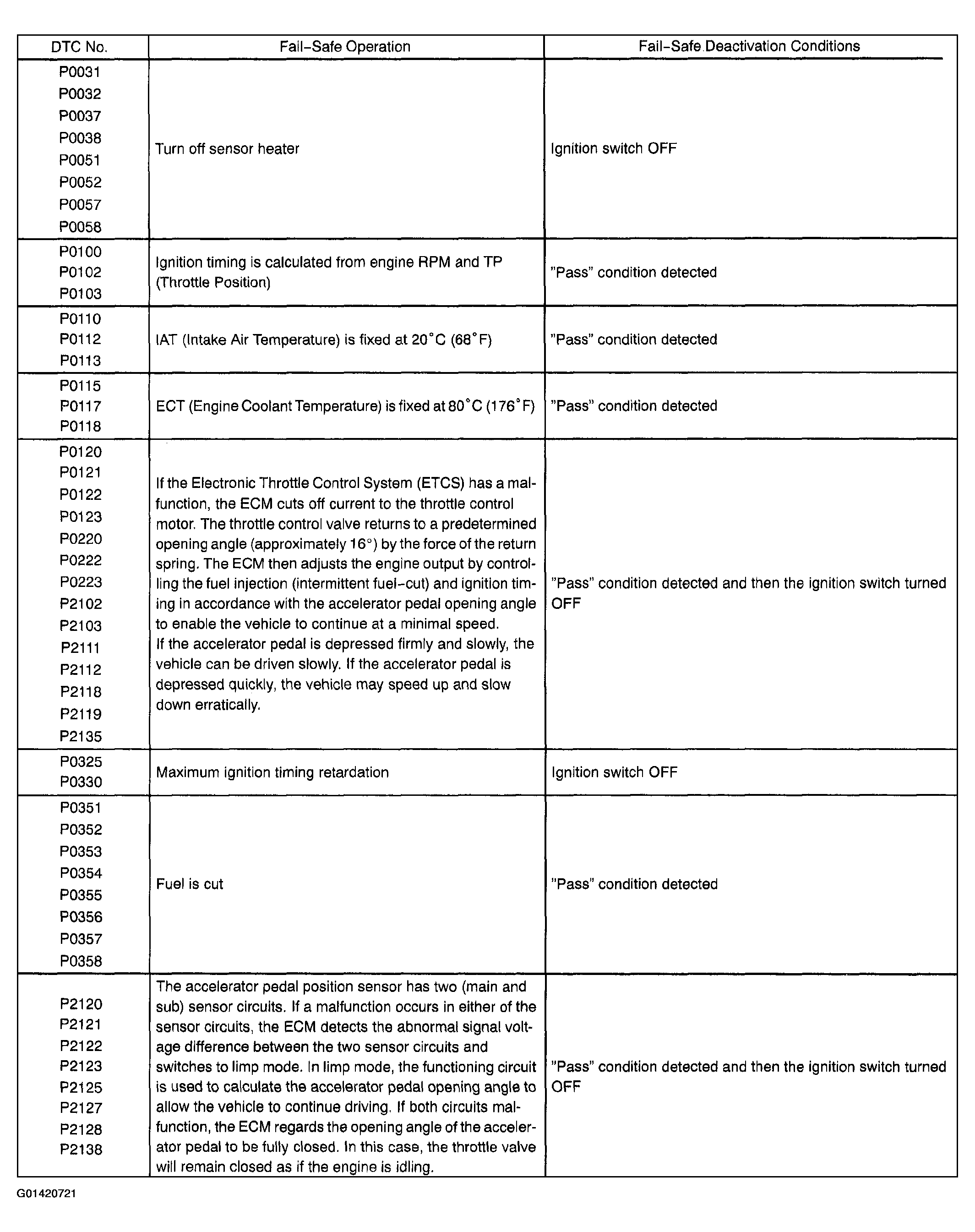

Fig 1: Identifying Fail-Safe Chart

G01420721

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
