Power Window Control System - Diagnosis: Location

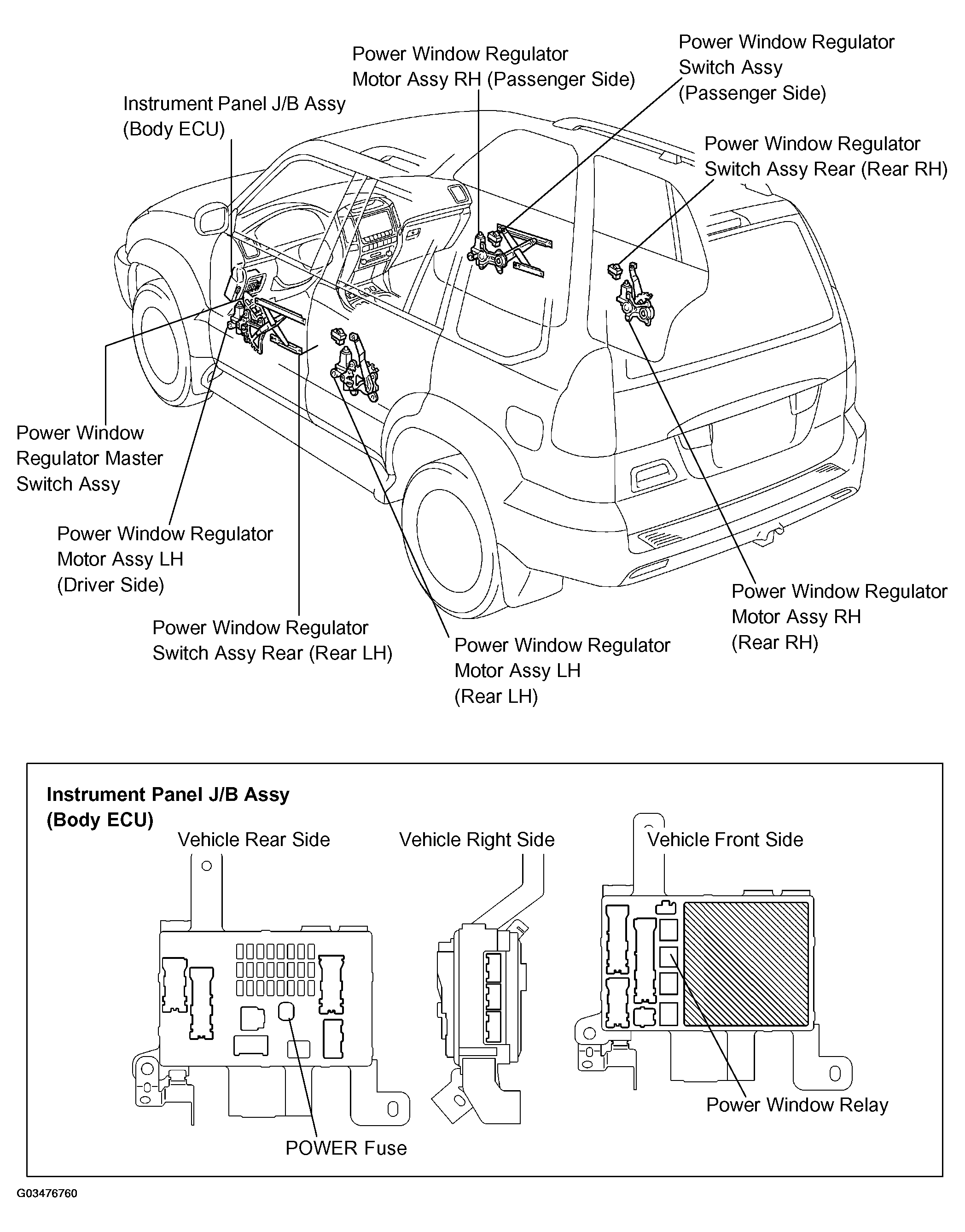

Fig 1: Identifying Power Window Control System Components Location

G03476760

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
