Inner Rear View Mirror: Inspection

1. Inspect operation of the electrochromatic inner mirror.
   1. Connect the positive (+) lead from the battery to terminal 1 and the negative (-) lead to terminal 2.
   2. Attach black colored tape to the forward sensor to prevent it from sensing.
   3. Light up the mirror with an electric light, and check that the mirror surface changes from bright to dark.

If the result is not as specified, replace the mirror assy.

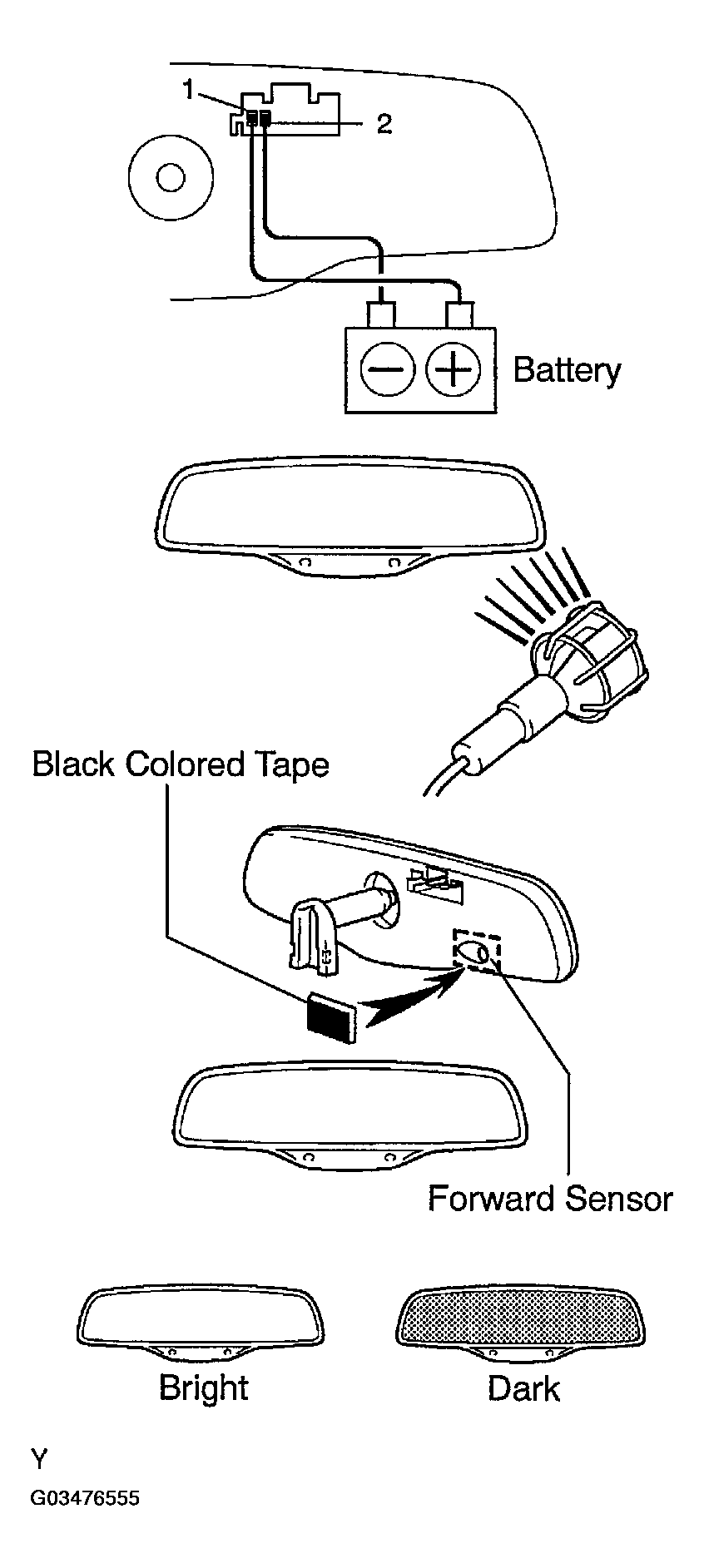

Fig 1: Inspecting Inner Rear View Mirror Assy

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
