Back Door Components

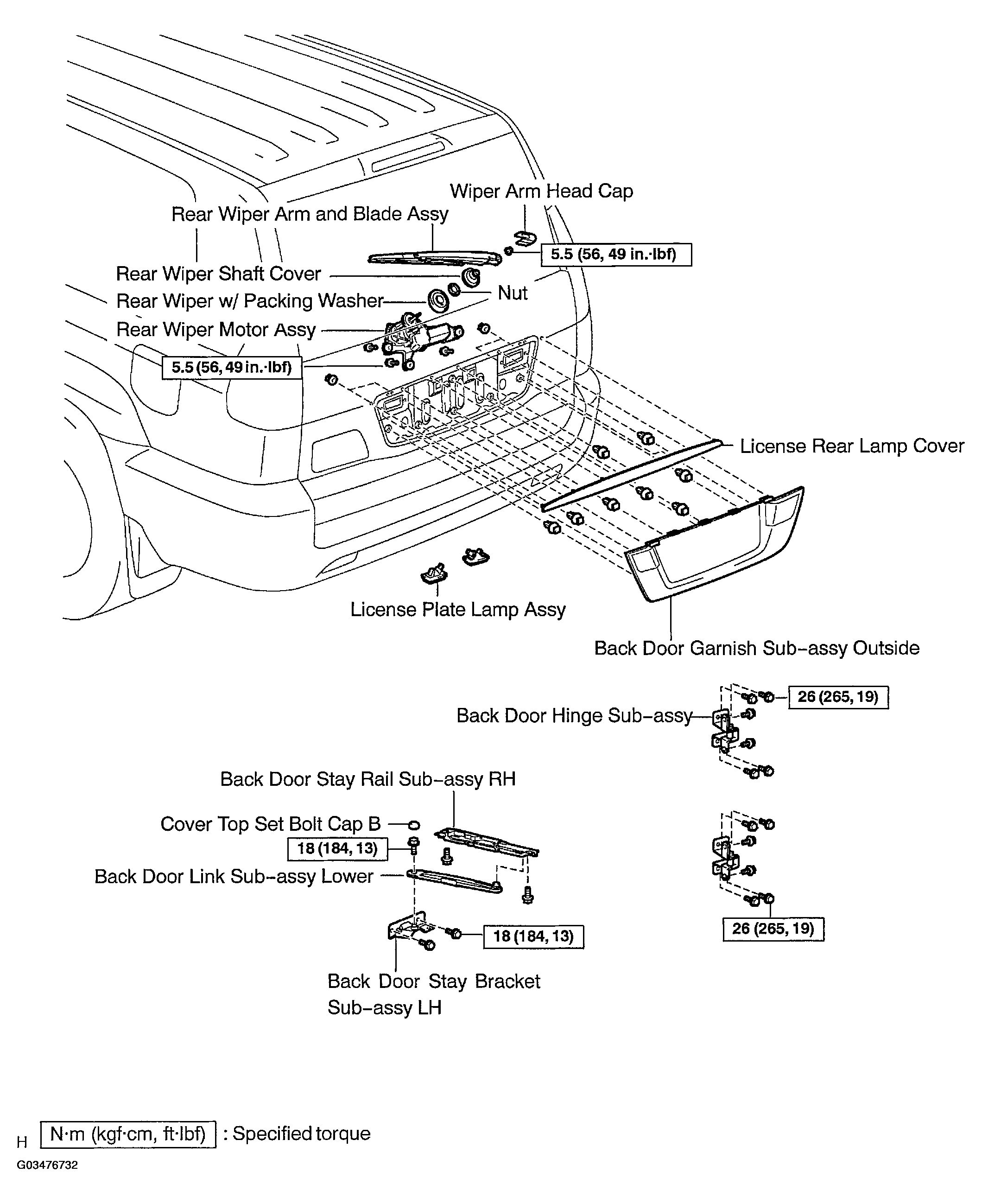

Fig 1: Identifying Back Door Components (1 Of 2)
G03476732Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

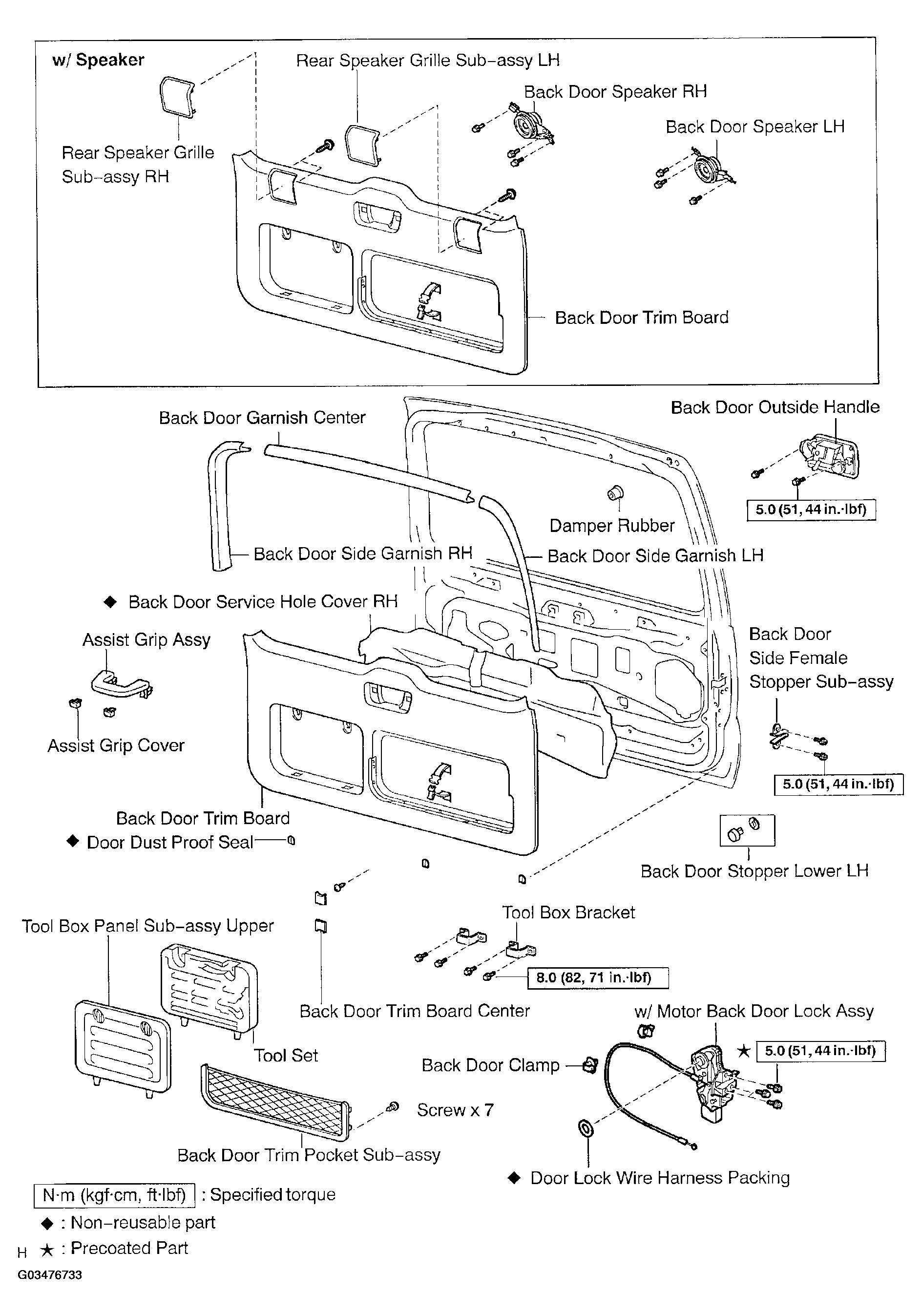

Fig 2: Identifying Back Door Components (2 Of 2)
G03476733Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
