Mayday Switch ASSY: Replacement

HINT:

The installation is in the reverse order of the removal. However, when there is a special point concerning the installation, it is indicated.

1. REMOVE MAYDAY SWITCH ASSY
   1. Using a screwdriver, disengage the 2 clips and 3 claws, and remove the Mayday switch assy, then disconnect the connector.

      HINT:

      Tape the screwdriver tip before use.

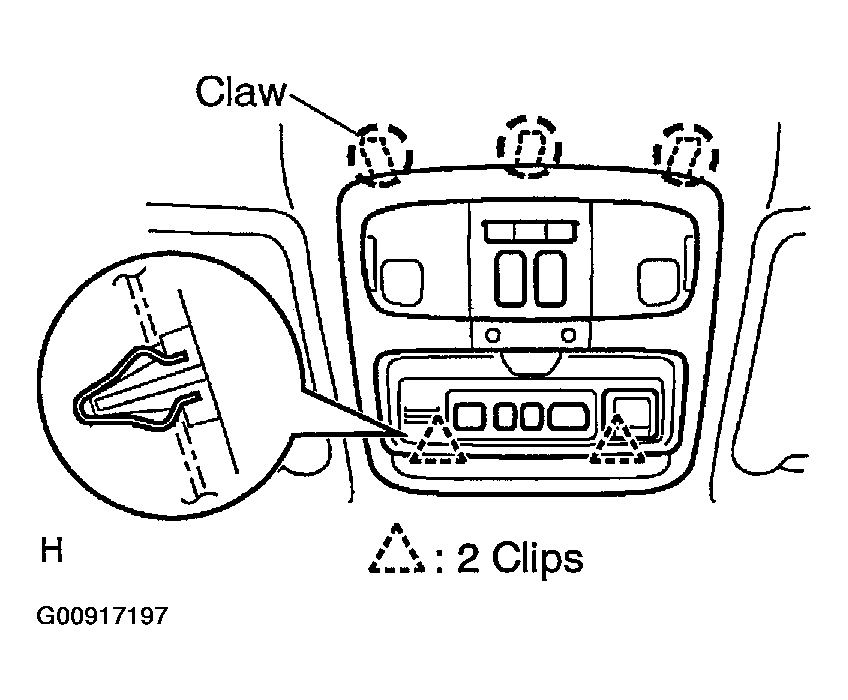

   Fig 1: Remove Mayday Switch Assy

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
