Mayday ASSY: Components

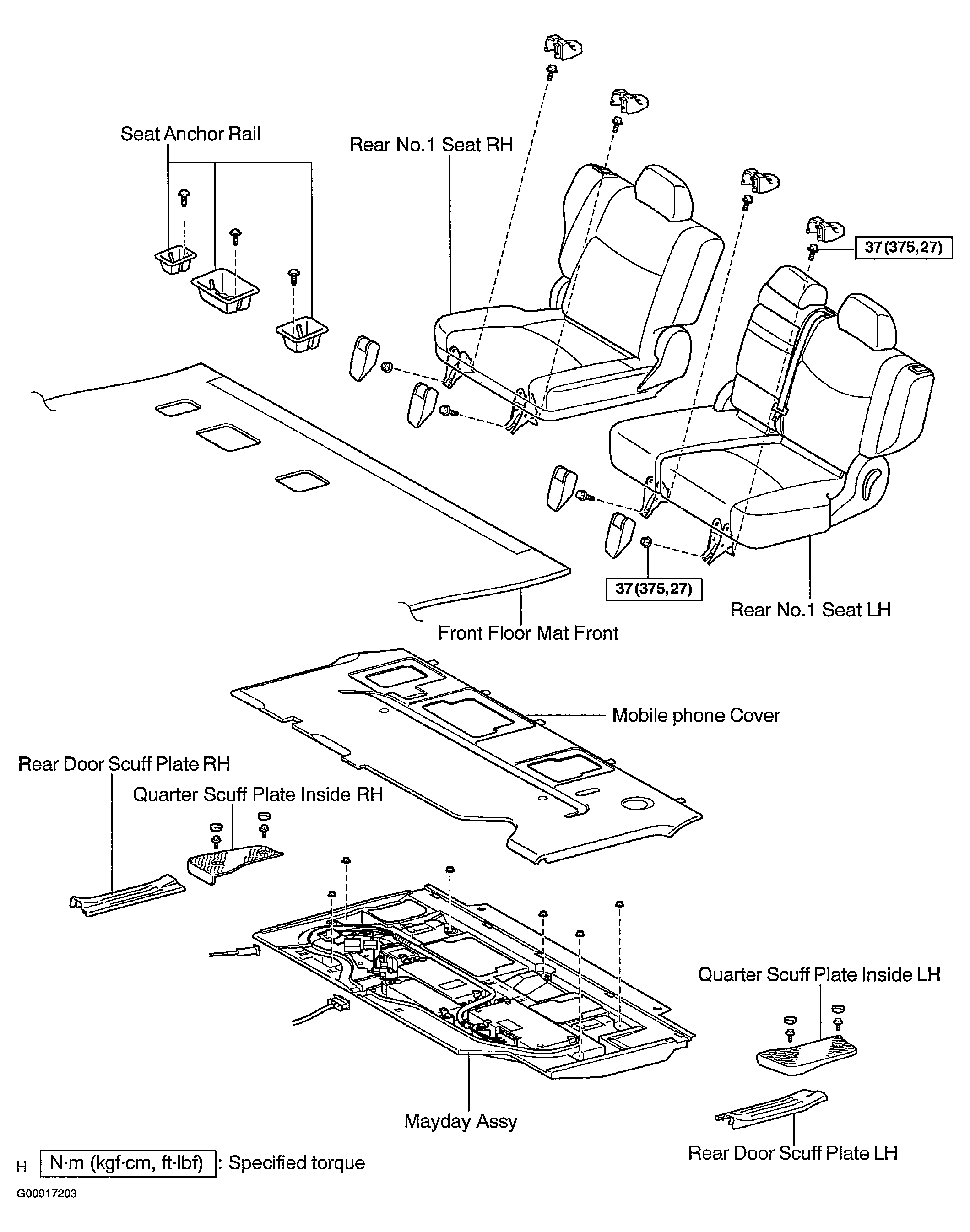

Fig 1: Identifying Components Of MAYDAY Assy (1 Of 2)
G00917203Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

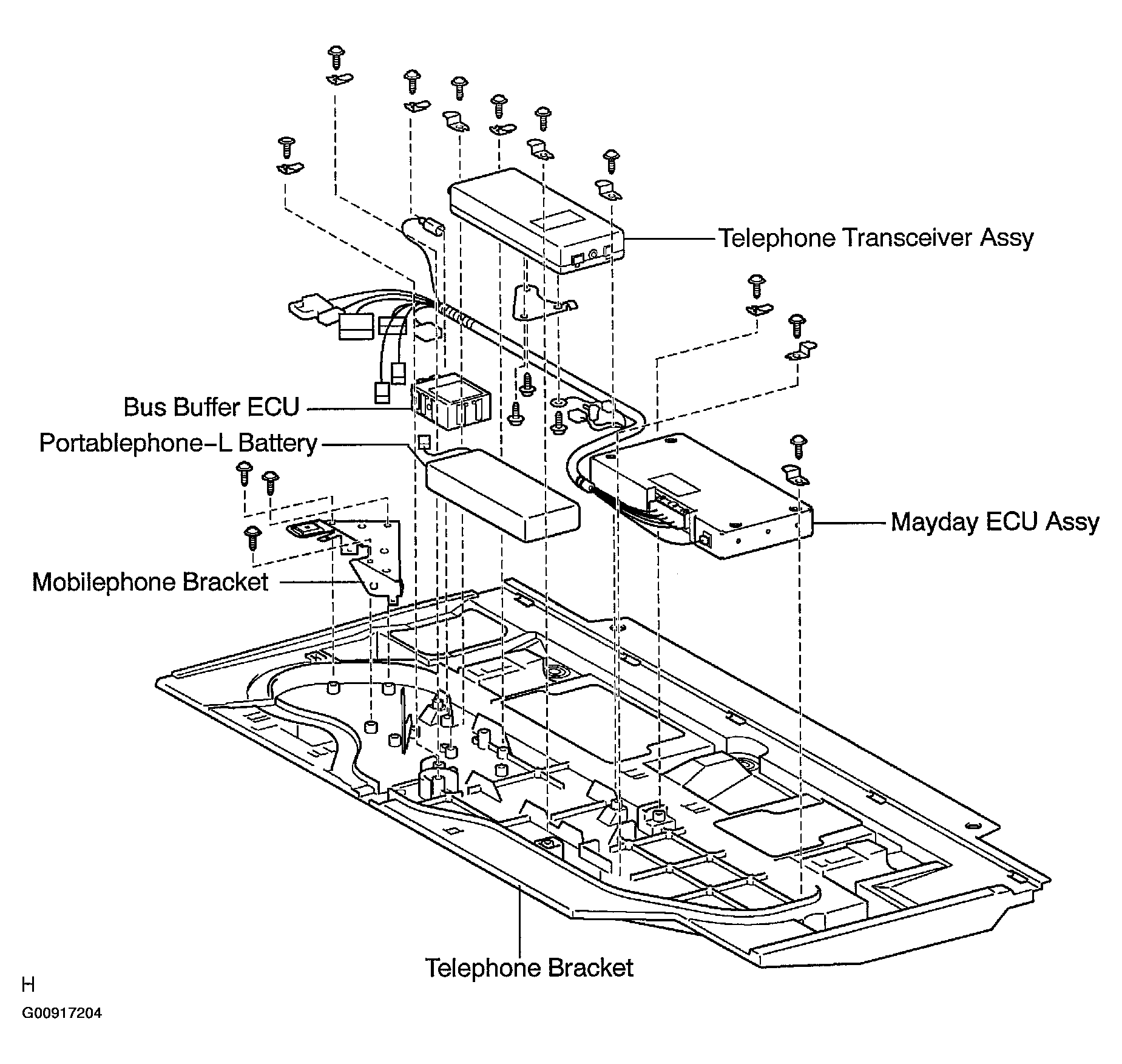

Fig 2: Identifying Components Of MAYDAY Assy (2 Of 2)
G00917204Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
