O2S Test Result

Refer to O2S TEST RESULT  detailed information.

Front O2S voltage monitor

If the time required to change is out of the standard value, the ECM interprets this as a malfunction.

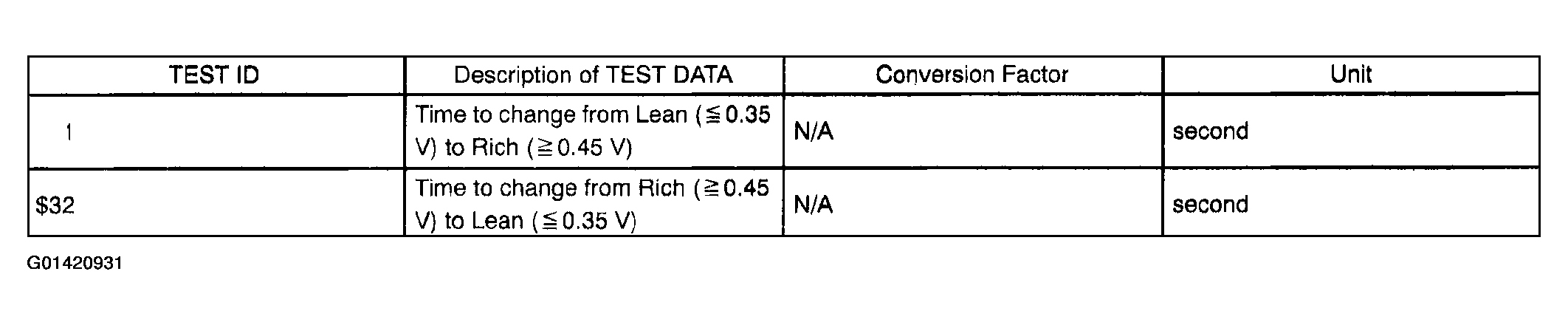

Fig 1: O2S Test Result Table

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Front O2S frequency monitor during engine idling

If the $38 is out of the standard value, the ECM interprets this as a malfunction.

Fig 2: O2S Test Result Table (Front O2S Frequency Monitor During Engine Idling)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Front O2S frequency monitor during vehicle running

If the $90 is out of the standard value, the ECM interprets this as a malfunction.

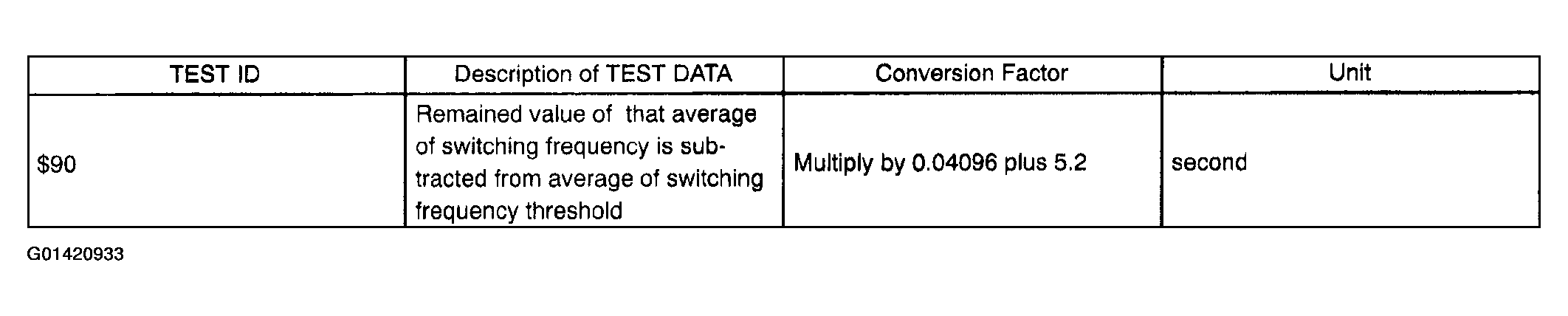

Fig 3: O2S Test Result Table (Front O2S Frequency Monitor During Vehicle Running)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
