DTC 2 (Two): "Code 2. Button Module Failure": Wiring Diagram

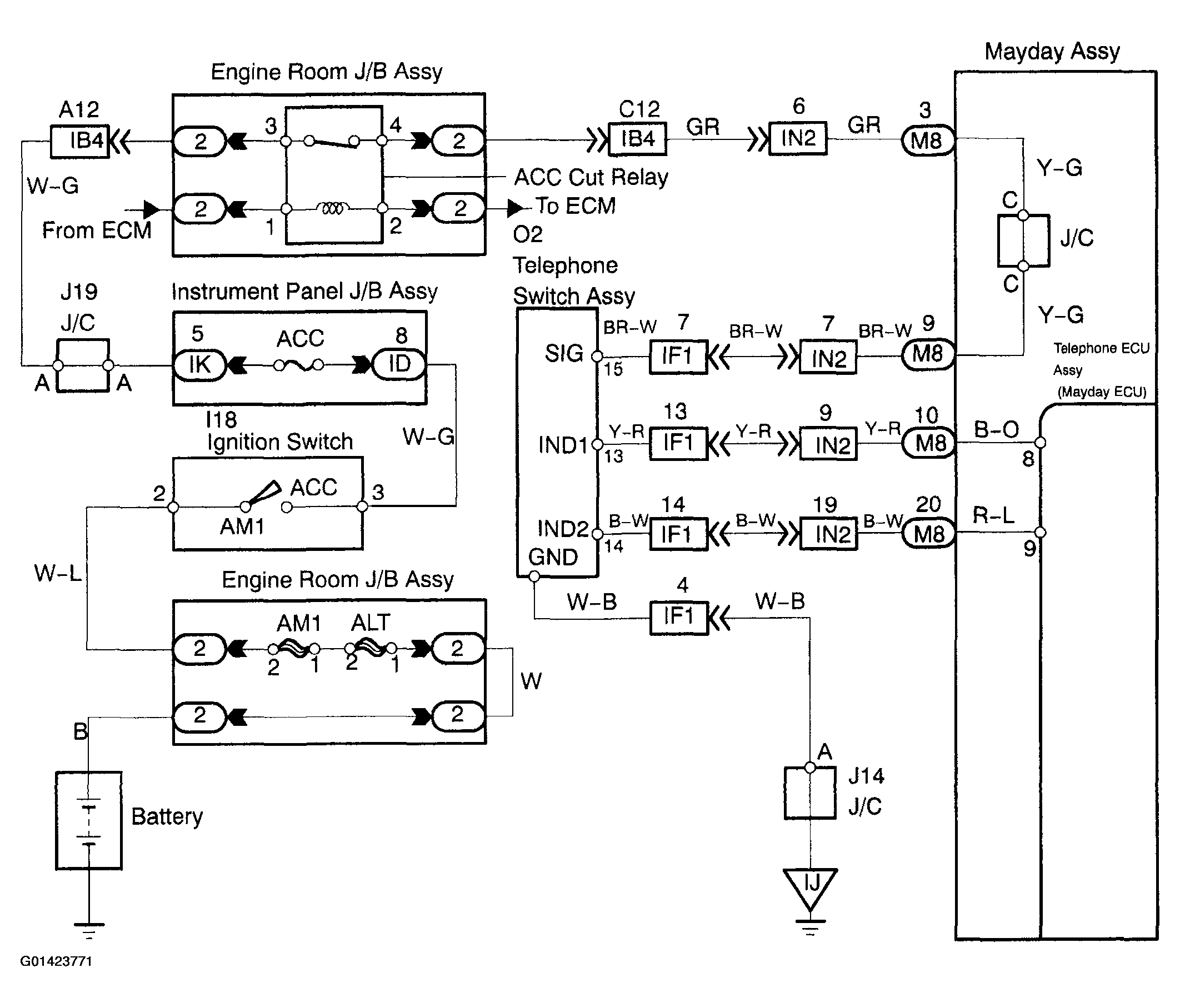

Fig 1: DTC 2 (Two) "Code 2. Button Module Failure" Wiring Diagram

G01423771

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
