Parts Location

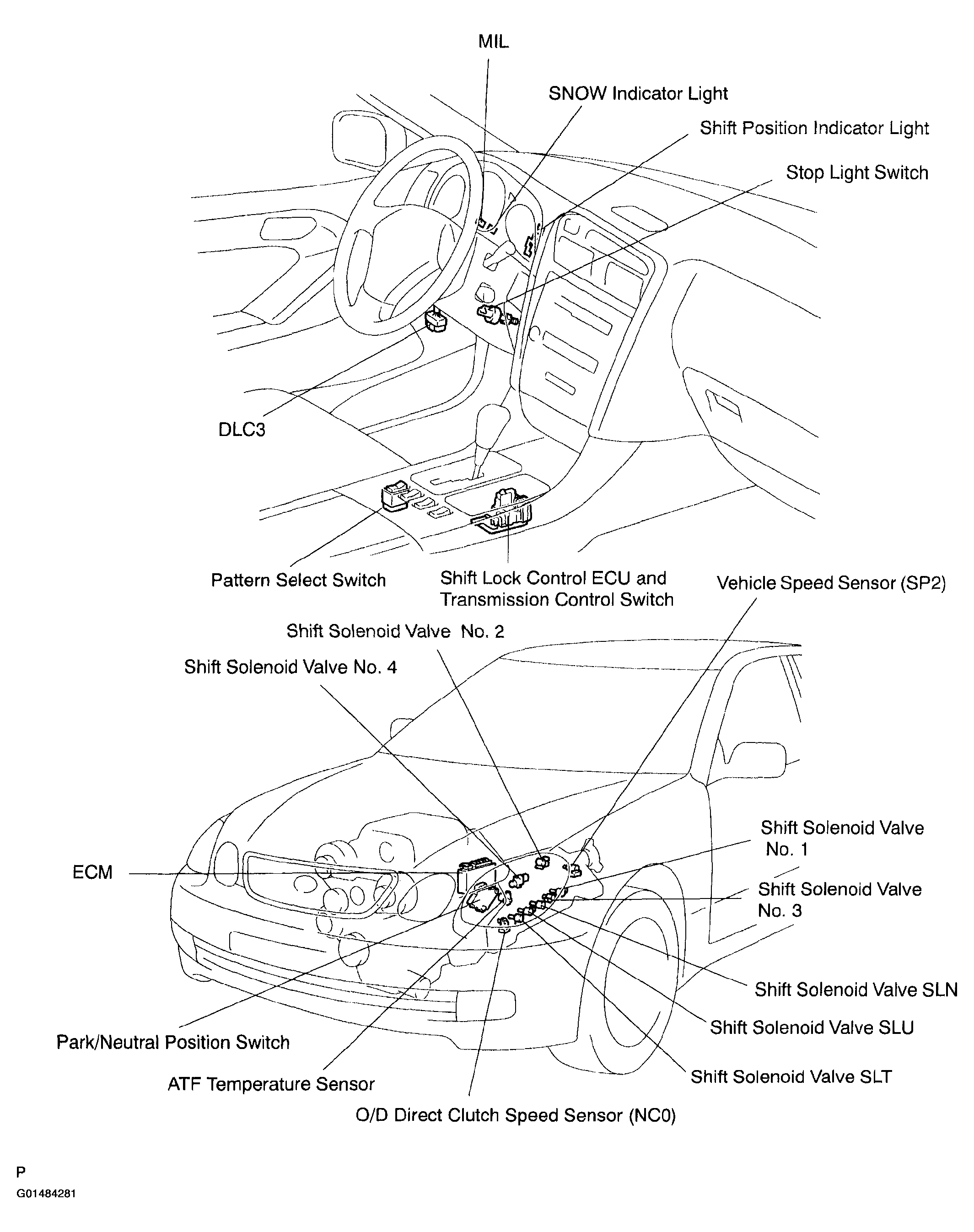

Fig 1: Locating Components

G01484281

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
