Condenser Fan: Components

WARNING: This page is about a different car, the 2005 Lexus GS 430 and 2005 Lexus GS 300. However, it is still accessible from the selected car via links, so may be relevant.

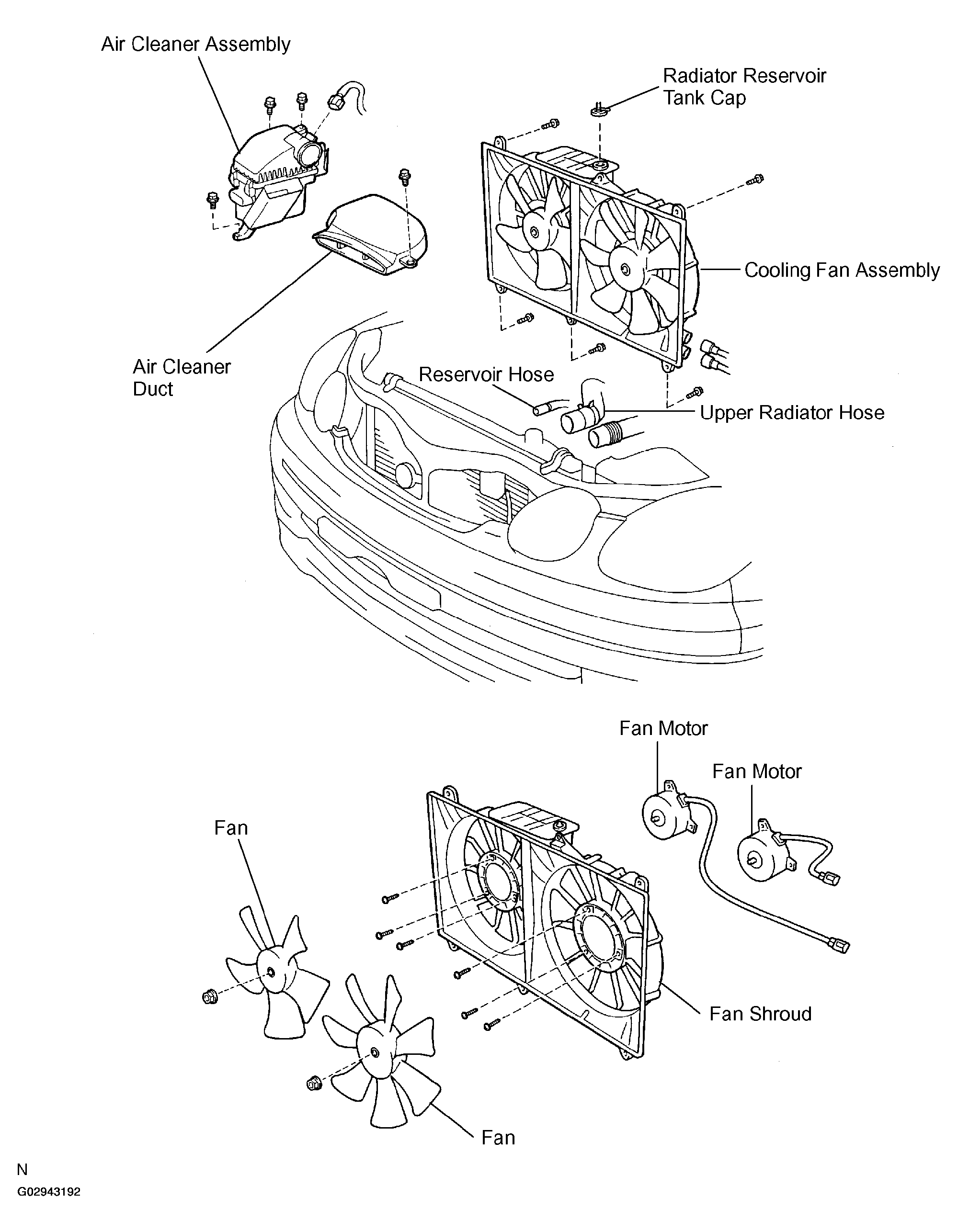

Fig 1: Locating Condenser Fan Components
G02943192Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
