Headphone Terminal Replacement

WARNING: This page is about a different car, the 2004 Lexus GX 470. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

COMPONENTS: See LOCATION .

REMOVE CONSOLE REAR END PANEL SUB-ASSY (SEE REPLACEMENT )
REMOVE HEADPHONE TERMINAL

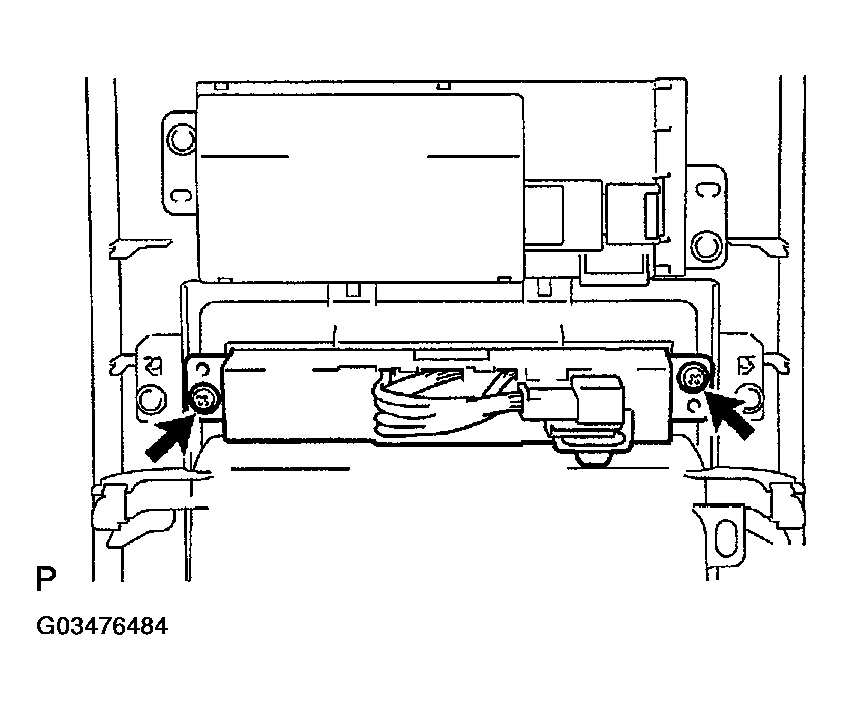

1. Remove the 2 screws and headphone terminal.
Fig 1: Removing Console Rear End Panel Sub-Assembly
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
