Towing Converter Relay Replacement

WARNING: This page is about a different car, the 2004 Lexus GX 470. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE REAR NO. 2 SEAT ASSY LH (See  REAR NO. 2 SEAT  )
  2. REMOVE QUARTER SCUFF PLATE INSIDE LH (See  REPLACEMENT  )
  3. REMOVE REAR DOOR SCUFF PLATE LH (See  REPLACEMENT  )
  4. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP RH
  5. REMOVE BACK DOOR WEATHERSTRIP
  6. REMOVE REAR FLOOR MAT SUPPORT PLATE REAR (See  REPLACEMENT  )
  7. REMOVE PACKAGE TRAY TRIM PANEL ASSY (See  REPLACEMENT  )
  8. REMOVE QUARTER INSIDE TRIM BOARD LH (See  REPLACEMENT  )
  9. REMOVE ROOF SIDE GARNISH INNER LH (See  REPLACEMENT  )
  10. REMOVE TOWING CONVERTER RELAY
    1. Disconnect the connector.
    2. Remove the bolt and the towing converter relay.

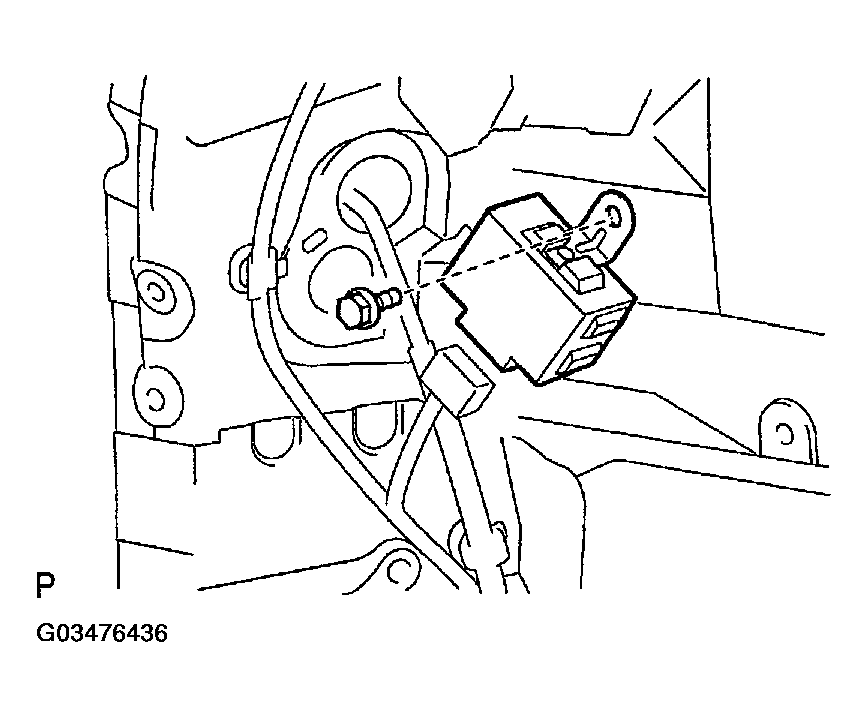

    Fig 1: Removing Towing Converter Relay
    G03476436Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. INSTALL ROOF SIDE GARNISH INNER LH (See  REPLACEMENT  )
  12. INSTALL REAR NO. 2 SEAT ASSY LH (See  REAR NO. 2 SEAT  )
