Section 387 (Tire Pressure Monitor Receiver): Replacement

HINT:

COMPONENTS: See WHEEL AND TIRE SYSTEM (FROM NOVEMBER, 2003) .

1. DISCONNECT BATTERY NEGATIVE TERMINAL
2. REMOVE REAR NO.2 SEAT ASSY LH (See  REAR NO. 2 SEAT  )
3. REMOVE REAR NO.2 SEAT ASSY RH

   HINT:

   Remove the RH side following the same procedures as with the LH side.

4. REMOVE ROOF HEADLINING ASSY (See page 74-8)

   HINT:

   Refer to the instructions for removal of the roof headlining assy.

5. REMOVE TIRE PRESSURE MONITOR RECEIVER ASSY
   1. Disconnect the connector.
   2. Remove the 2 bolts and receiver assy.

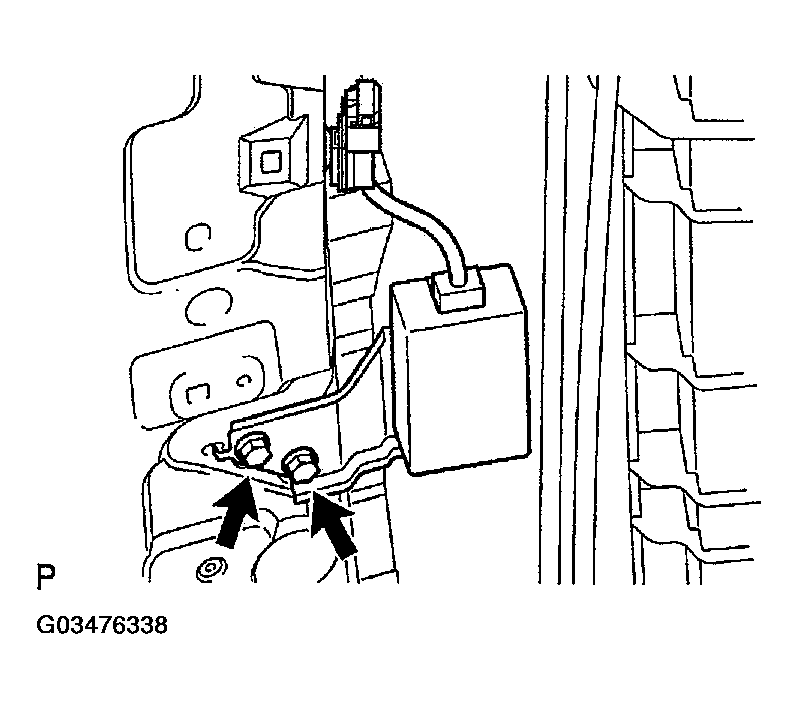

   Fig 1: Removing Tire Pressure Monitor Receiver Assembly

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. INSTALL TIRE PRESSURE MONITOR RECEIVER ASSY
   1. Install the receiver assy with the 2 bolts.

      Torque: 6.8 N.m (69 kgf.cm, 60 in..lbf)

   2. Connect the connector.

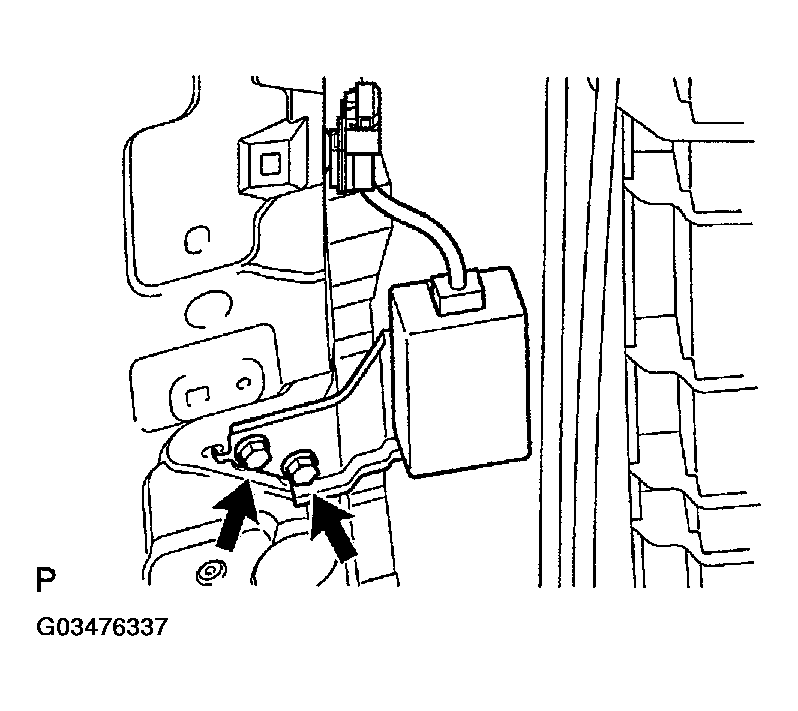

   Fig 2: Installing Tire Pressure Monitor Receiver Assembly

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
7. INSTALL ROOF HEADLINING ASSY
8. INSTALL REAR NO.2 SEAT ASSY LH (See  REAR NO. 2 SEAT  )
9. INSTALL REAR NO.2 SEAT ASSY RH

   HINT:

   Install the RH side following the same procedures as with the LH side.

10. CONNECT BATTERY NEGATIVE TERMINAL
11. INSPECT TIRE PRESSURE WARNING SYSTEM (See page 05-557)

    SST 09843-18040
