Air Conditioning Control ASSY: Components

WARNING: This page is about a different car, the 2004 Lexus GX 470. However, it is still accessible from the selected car via links, so may be relevant.

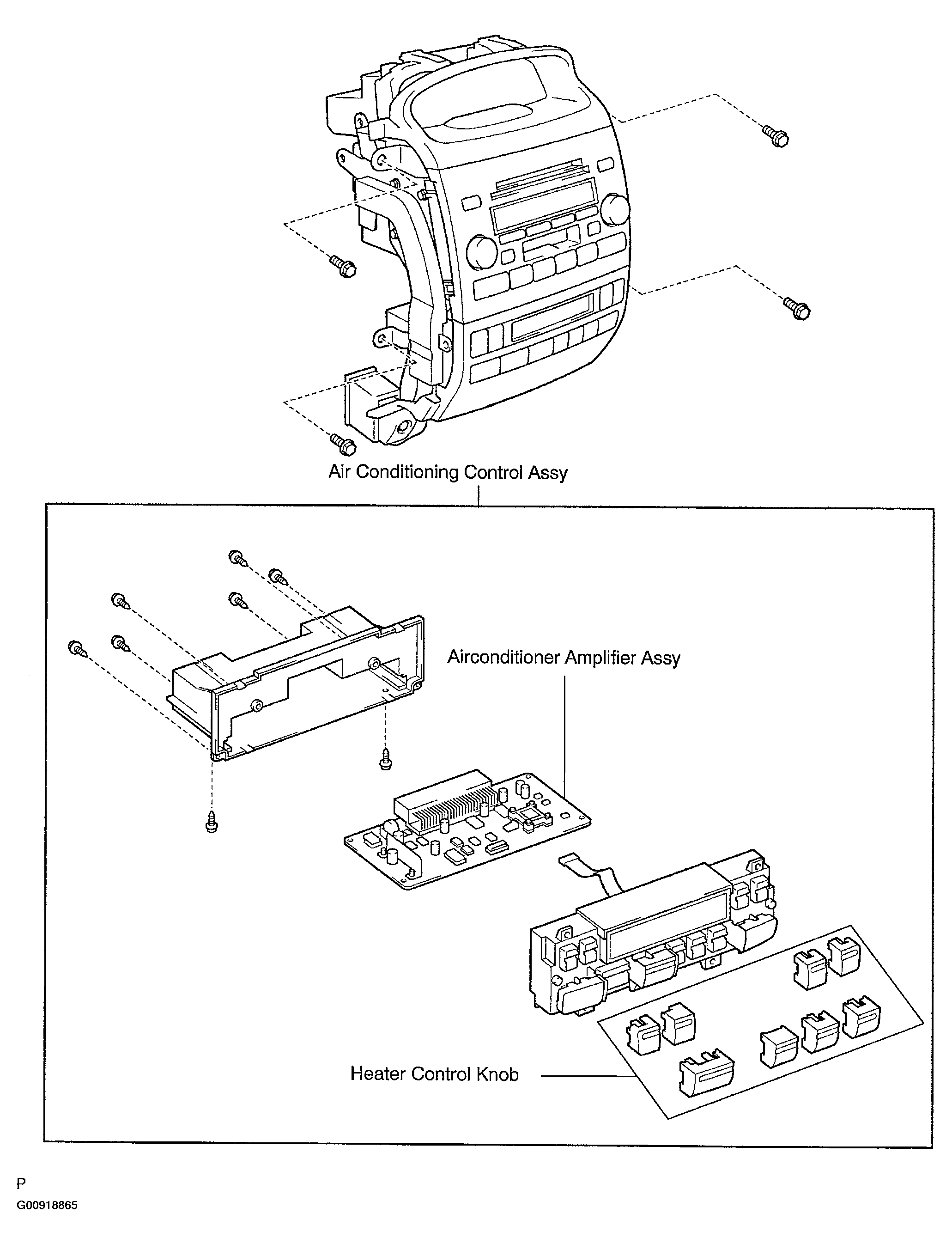

Fig 1: Identifying Components Of Air Conditioning Control Assy
G00918865Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
