Stabilizer Control Ecu (KDSS): Replacement

WARNING: This page is about a different car, the 2004 Lexus GX 470. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

LOCATION: See LOCATION .

DISCONNECT BATTERY NEGATIVE TERMINAL
REMOVE ROOF SIDE GARNISH INNER LH (SEE REPLACEMENT )
HINT:

Refer to the procedures up to remove roof side garnish inner LH.
REMOVE STABILIZER CONTROL ECU
1. Disconnect the connector.
2. Remove the 2 bolts and stabilizer control ECU.
NOTICE:
- Avoid any impact to the stabilizer control ECU.
- Replace the stabilizer control ECU with a new one if it is dropped.

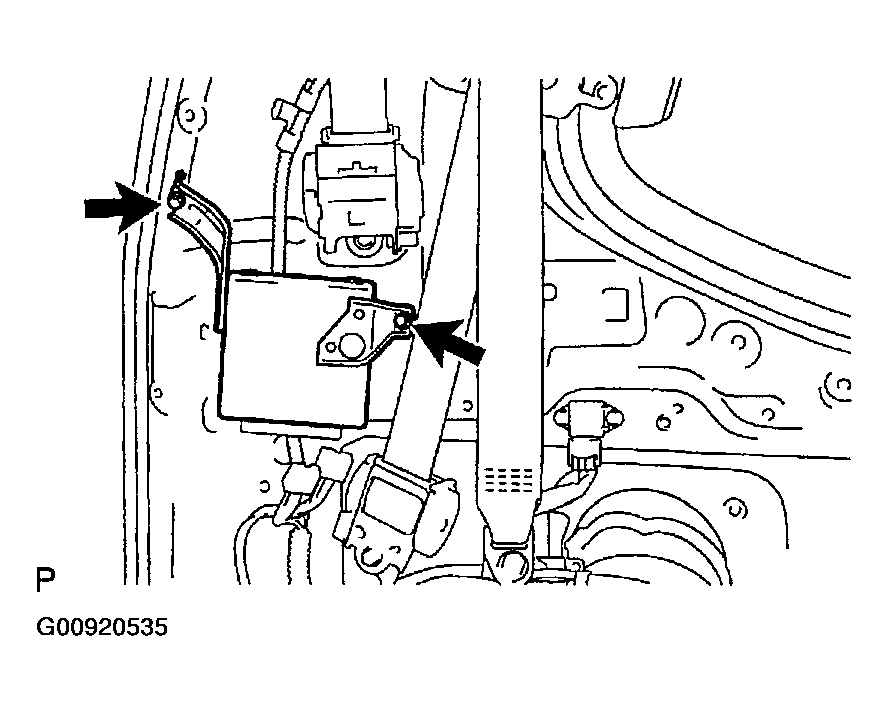

Fig 1: Removing Bolts
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL STABILIZER CONTROL ECU
1. Install the stabilizer control ECU with the 2 bolts.
  1. Torque: 7.8 N.m (80 kgf.cm, 69 in..lbf)
2. Connect the connector.

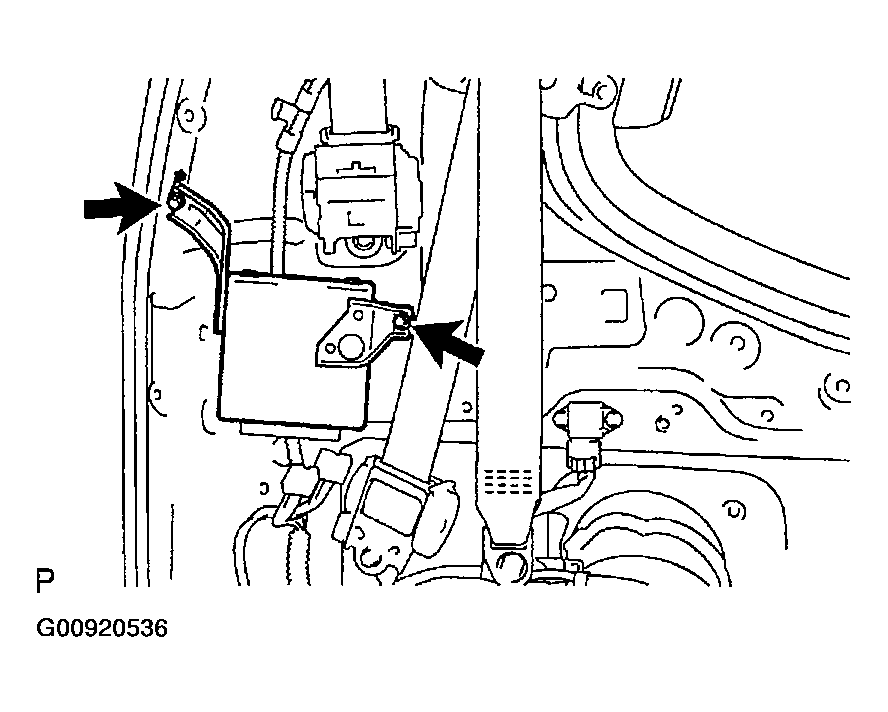

Fig 2: Installing Stabilizer Control ECU With Bolts
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL ROOF SIDE GARNISH INNER LH (SEE REPLACEMENT )
HINT:

Refer to the procedures from install roof side garnish inner LH.
CONNECT BATTERY NEGATIVE TERMINAL
PERFORM ACCELERATION SENSOR ASSY ZERO POINT CALIBRATION (SEE CALIBRATION )
