Front Stabilizer (KDSS): Components

WARNING: This page is about a different car, the 2004 Lexus GX 470. However, it is still accessible from the selected car via links, so may be relevant.

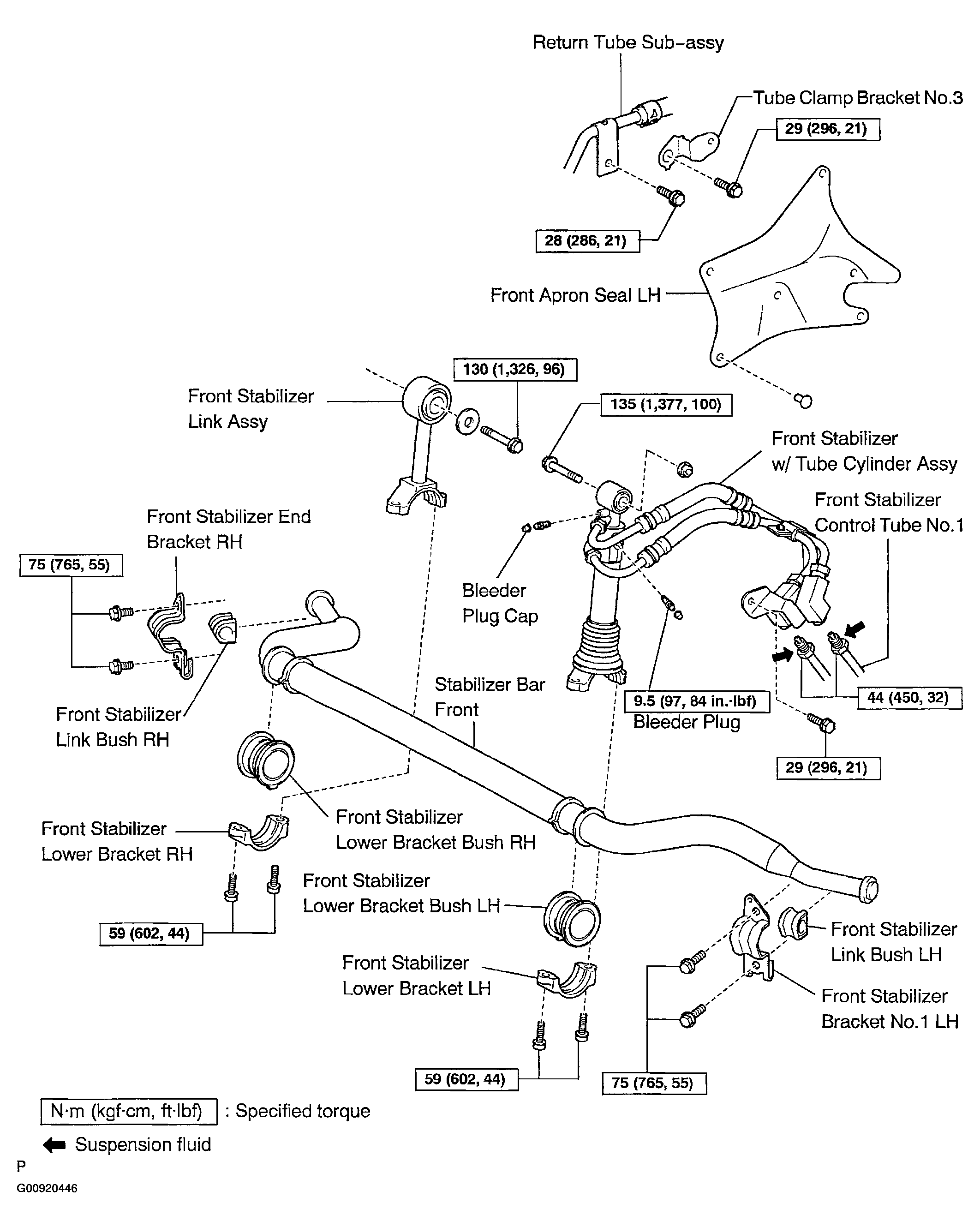

Fig 1: Identifying component Of Front Stabilizer (KDSS)
G00920446Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
