Joint Angle: Inspection

WARNING: This page is about a different car, the 2003 Lexus GS 430 and 2003 Lexus GS 300. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: When performing operations which Involve the removal and installation of the propeller shaft, always check the joint angle. Make adjustments if necessary.
  1. STABILIZE PROPELLER SHAFT AND DIFFERENTIAL
    1. Turn the propeller shaft several times by hand to stabilize the center support bearing and flexible couplings.

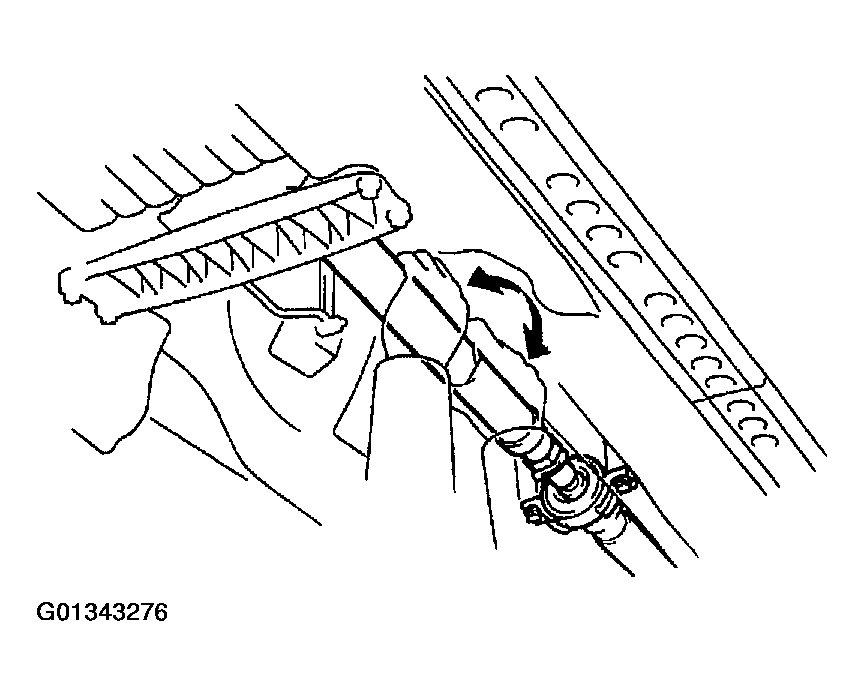

      Fig 1: Turning Propeller Shaft To Stabilize Center Support Bearing And Flexible Couplings
      G01343276Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using a jack, raise and lower the differential to stabilize the differential mounting cushion.

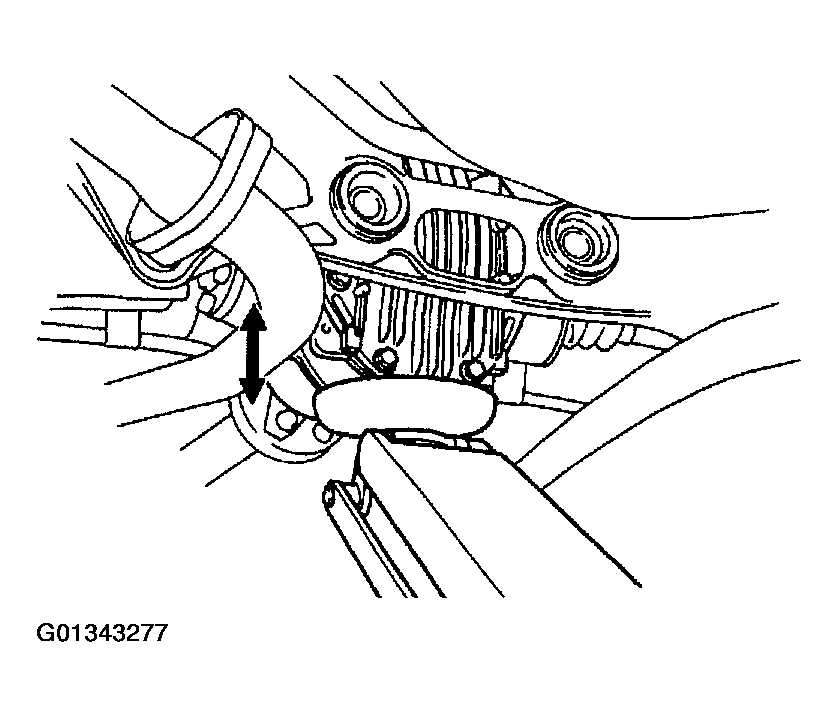

      Fig 2: Raising And Lowering Differential To Stabilize Differential Mounting Cushion
      G01343277Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. CHECK NO. 2 AND NO. 3 JOINT ANGLE
    1. Using SST measure the installation angle of the intermediate shaft and propeller shaft.

      SST 09370-50010

      HINT:

      The SST should be directly underneath the tube.

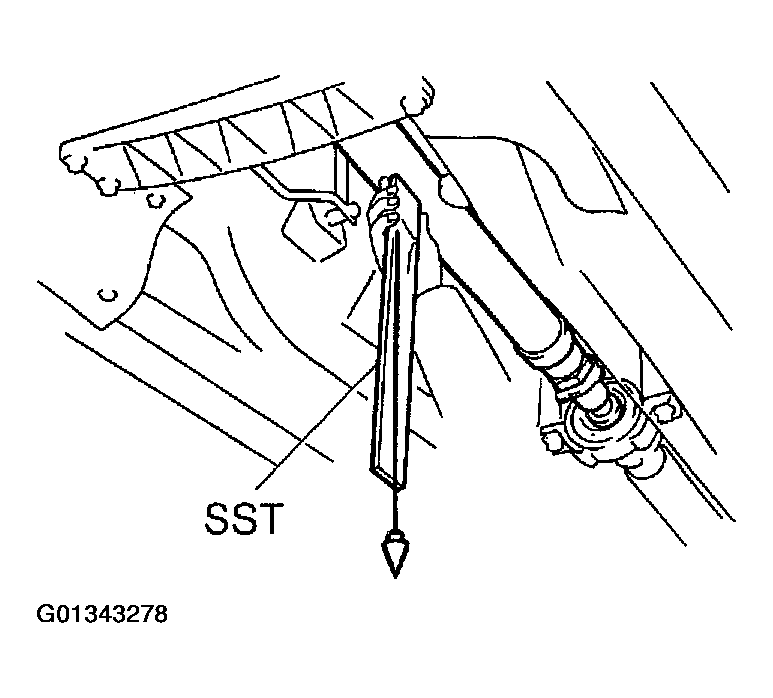

      Fig 3: Measuring Installation Angle Of Intermediate Shaft And Propeller Shaft
      G01343278Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using SST, measure the installation angle of the differential.

      SST 09370-50010

      HINT:

      Measure the installation angle by placing the SST in the position, as shown in the illustration.

      Fig 4: Measuring Installation Angle
      G01343279Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Calculate the No. 2 joint angle.

      No. 2 joint angle:

      A-B= -1°01' +/- 37'

      A: Intermediate shaft installation angle

      B: Propeller shaft installation angle

    4. Calculate the No. 2 joint angle.

      No. 3 joint angle:

      B-C= 1°14'+/- 42'

      B: Propeller shaft installation angle

      C: Differential installation angle.

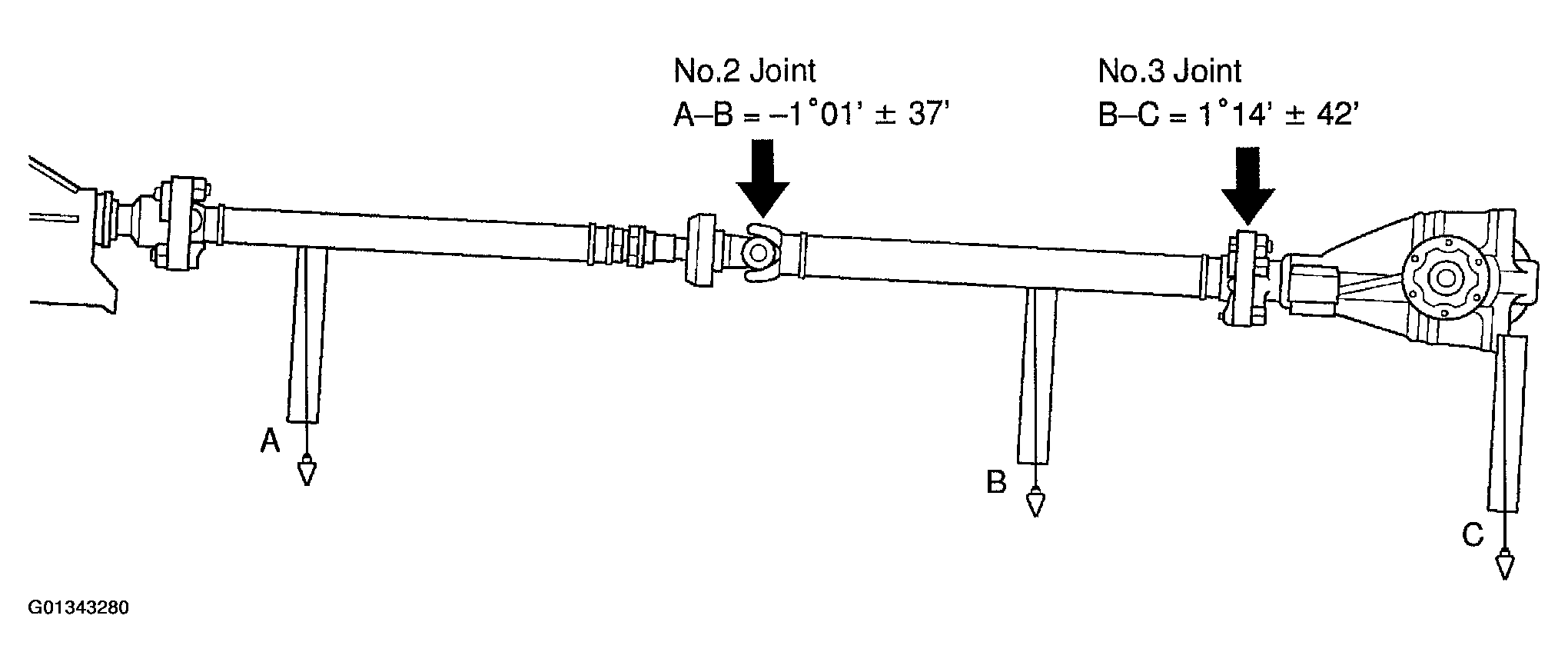

      Fig 5: Checking No.2 And No.3 Joint Angel
      G01343280Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      If the measured angle is not within the specification, adjust it with the center support bearing adjusting washer.

  3. ADJUST NO. 2 JOINT ANGLE

    Select the proper shaft center support bearing adjusting washer for adjustment.

    Fig 6: Adjusting Washer Specification Table
    G01343281Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

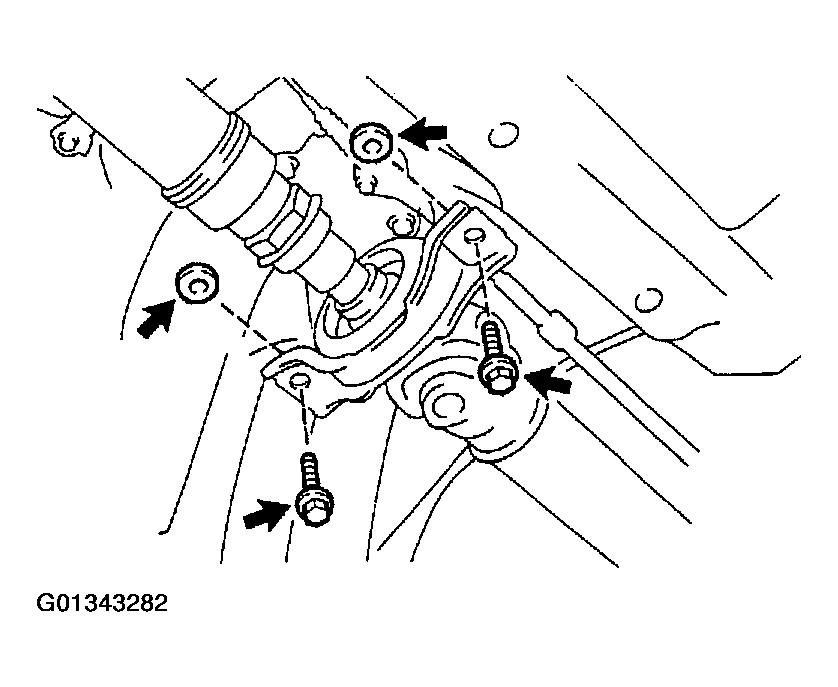

    Fig 7: Installing Proper Shaft Center Support Bearing Adjusting Washers
    G01343282Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    HINT:

    • Left and right washers should be the same thickness.
    • 2 washers should not be assembled together.
