Parts Location

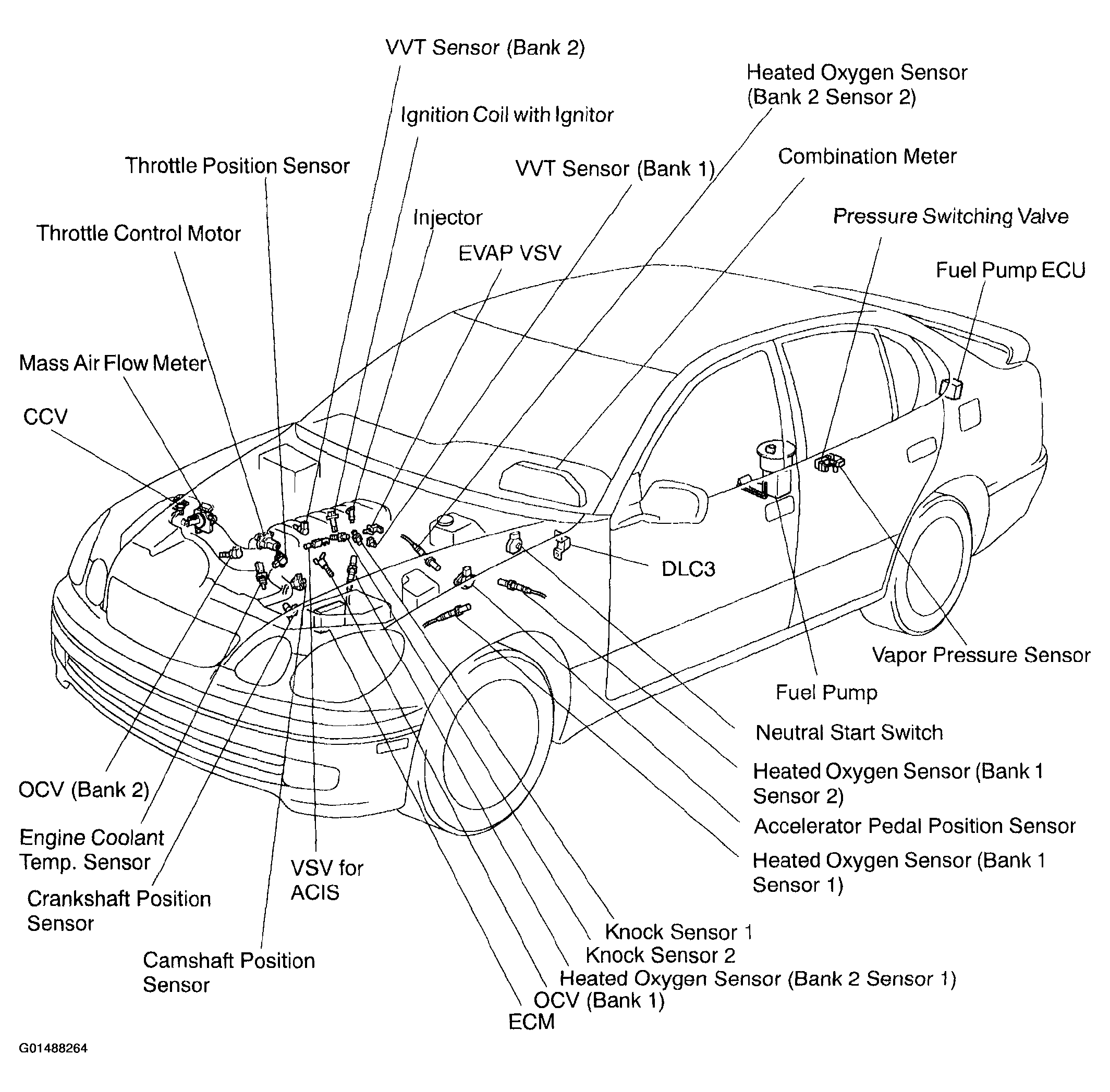

Fig 1: Identifying Engine Parts Location (3UZ-FE)

G01488264

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
