ECM Power Source Circuit: Wiring Diagram

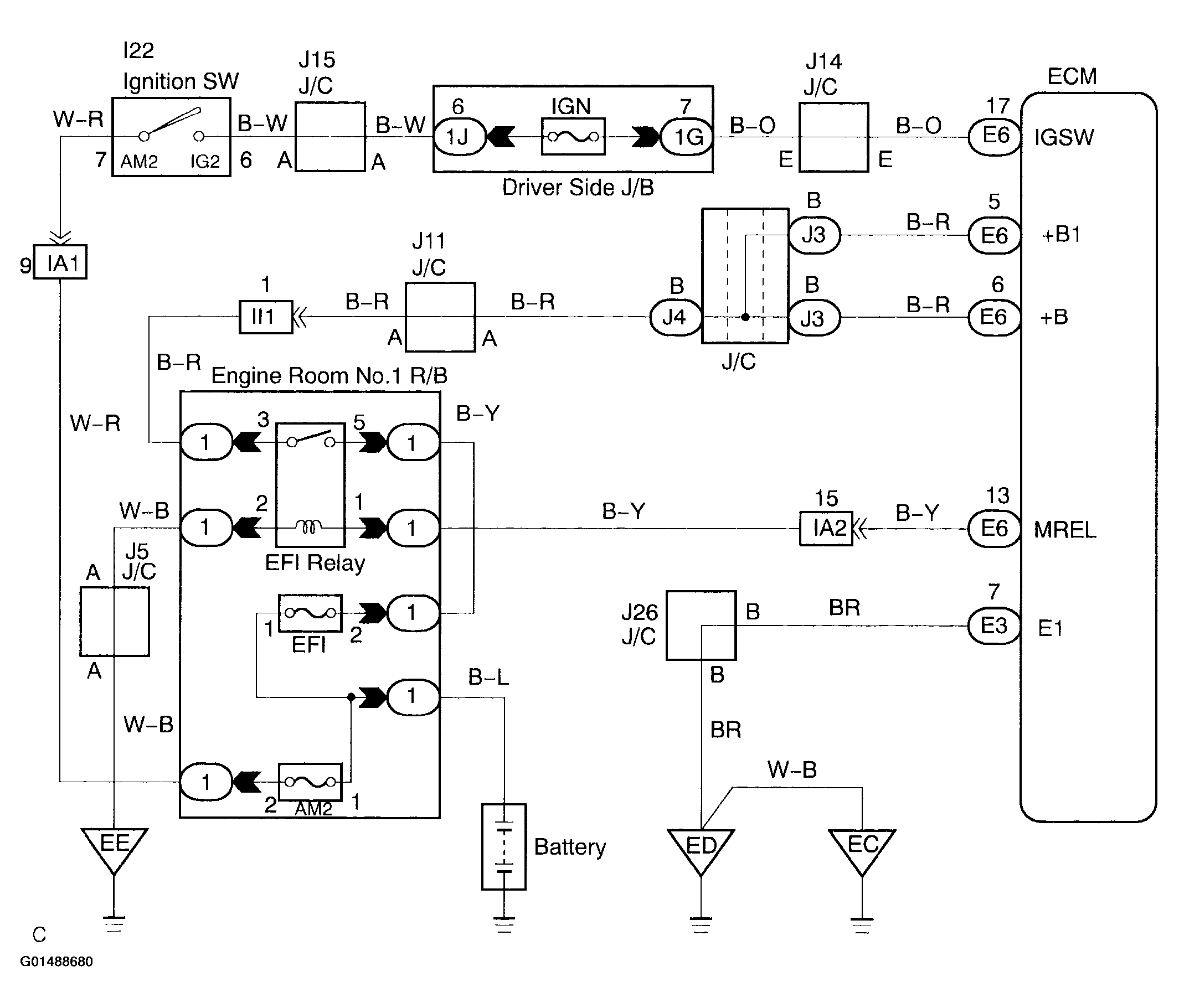

Fig 1: ECM Power Source Circuit Wiring Diagram

G01488680

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
