Throttle Body: Installation

  1. INSTALL THROTTLE BODY

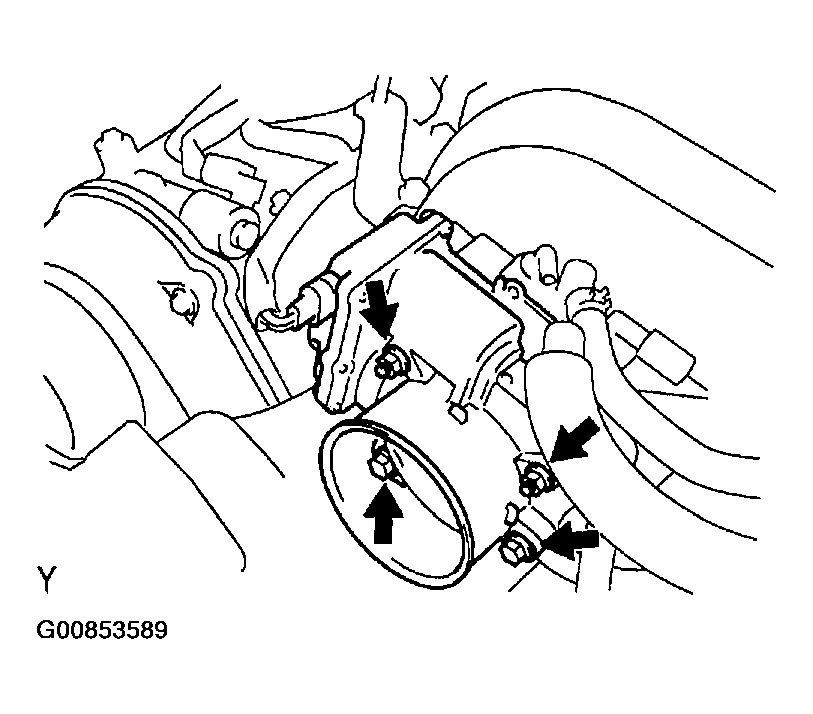

    Fig 1: Installing Throttle Body
    G00853589Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Connect the water bypass hose to the manifold thermostat on the throttle body.
    2. Install a new gasket and the throttle body with the 2 bolts and 2 nuts.

      Torque: 18 N.m (185 kgf.cm, 13 ft.lbf)

    3. Connect the water bypass hose to the No. 5 water bypass pipe on the throttle body.
    4. Connect the connector.
  2. INSTALL INTAKE AIR CONNECTOR PIPE
  3. FILL WITH ENGINE COOLANT (See  REPLACEMENT  )
  4. START ENGINE AND CHECK FOR ENGINE COOLANT LEAKS
  5. INSTALL V-BANK COVER
