Throttle Body: Components

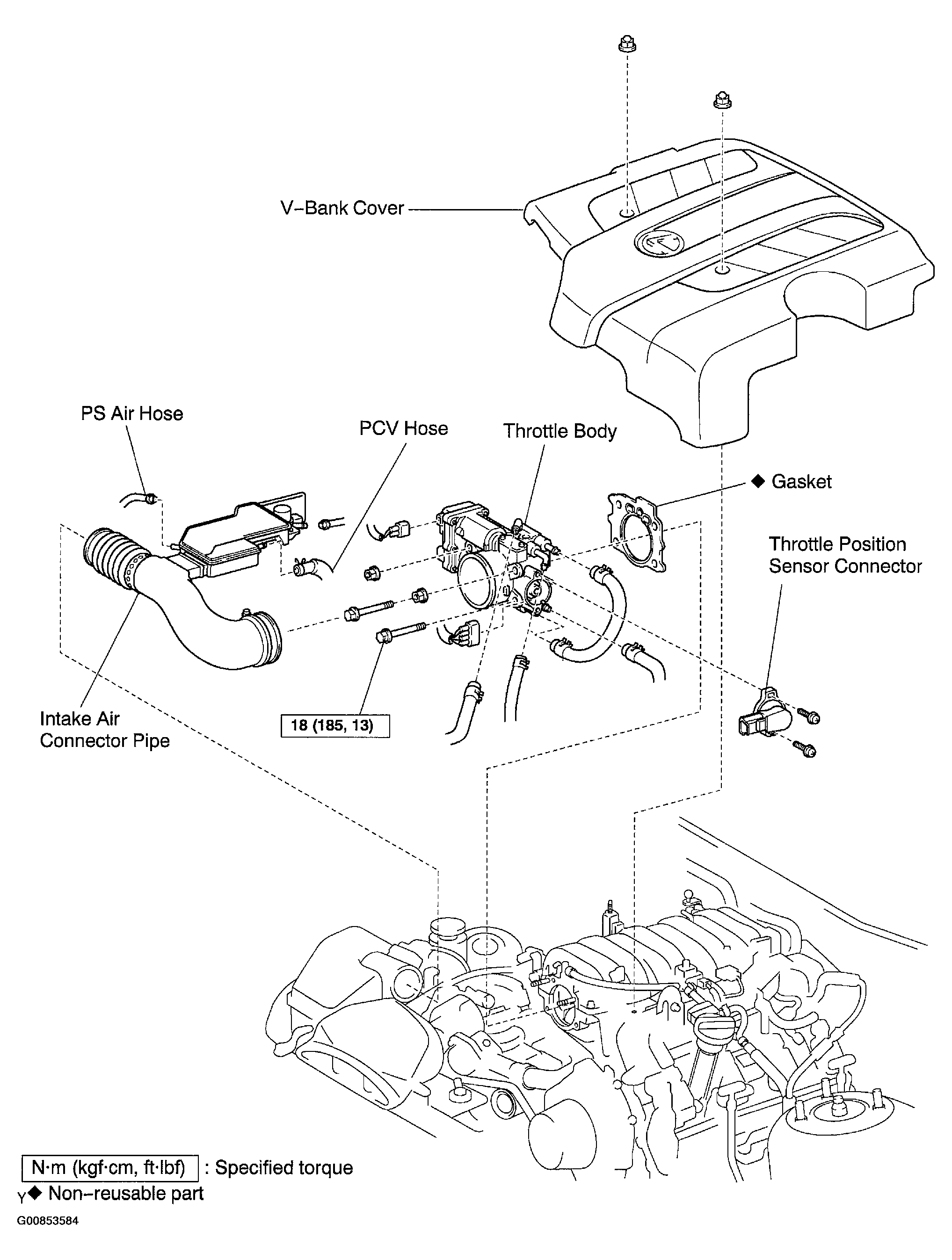

Fig 1: Identifying Throttle Body Components

G00853584

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
