Fuel Pump: Installation

INSTALL FUEL SENDER GAGE ASSEMBLY
Slide the fuel sender gage assembly into the fuel suction plate, and connect the connector.
INSTALL FUEL FILTER ASSEMBLY AND FUEL PUMP ASSEMBLY WITH FILTER
1. Push in the fuel pump assembly with filter.
2. Apply a light coat of gasoline to a new O-ring, and install it to the fuel port of the fuel suction plate.
3. Connect the fuel pump connector.
4. Push the fuel filter assembly, and attach the 4 snap claws to the claw holes.

  Fig 1: Attaching Snap Claws To Claw Holes
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FUEL PRESSURE REGULATOR AND FUEL RETURN JET TUBE ASSEMBLY (See INSTALLATION )
INSTALL NO. 2 FUEL SUCTION SUPPORT (See INSTALLATION )
INSTALL FUEL PUMP AND SENDER GAUGE ASSEMBLY TO FUEL TANK
1. Install a new gasket to the fuel suction plate.

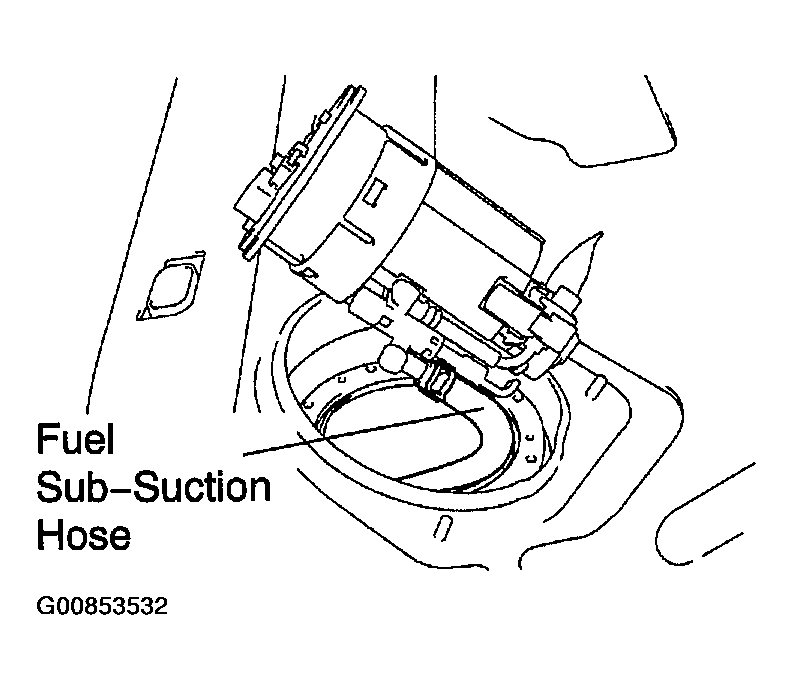

2. Connect the fuel sub-suction hose to the fuel return jet tube.
3. Attach the fuel pump and sender gauge assembly to the fuel tank.
4. Install the fuel tank vent tube set plate with the 8 bolts.
  Torque: 3.5 N.m (36 kgf.cm, 31 in.lbf)

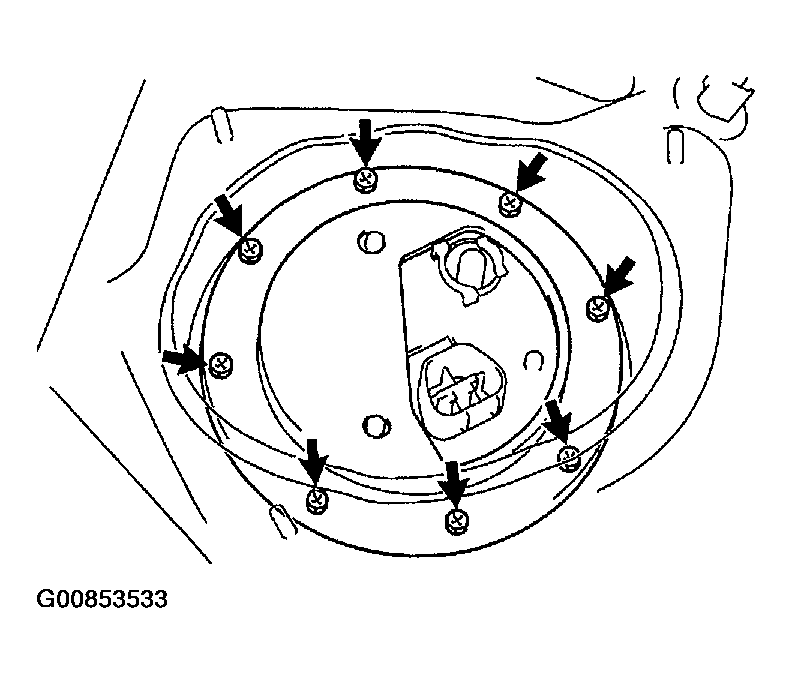

  Fig 3: Installing Fuel Tank Vent Tube Set Plate
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CONNECT FUEL TANK MAIN TUBE (FUEL TUBE CONNECTOR) TO FUEL SUCTION PLATE
1. Attach the fuel tube connector to the port of the fuel suction plate.
2. Install the tube joint clip.

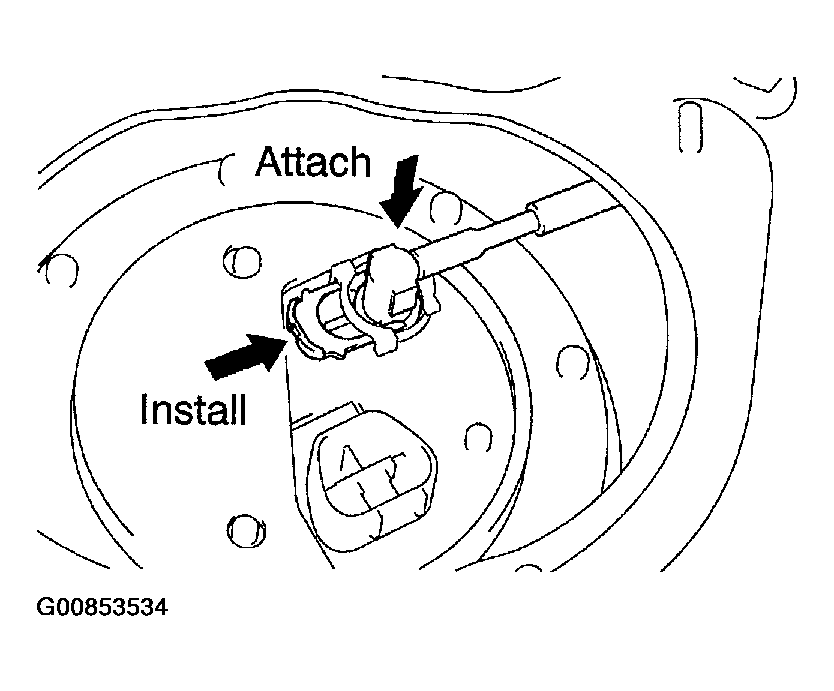

  Fig 4: Installing Tube Joint Clip
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CONNECT FUEL PUMP & SENDER GAUGE CONNECTOR
CHECK FOR FUEL LEAKS (See SFI SYSTEM )
INSTALL FLOOR SERVICE HOLE COVER
Install the service hole cover with the 3 cap nuts.

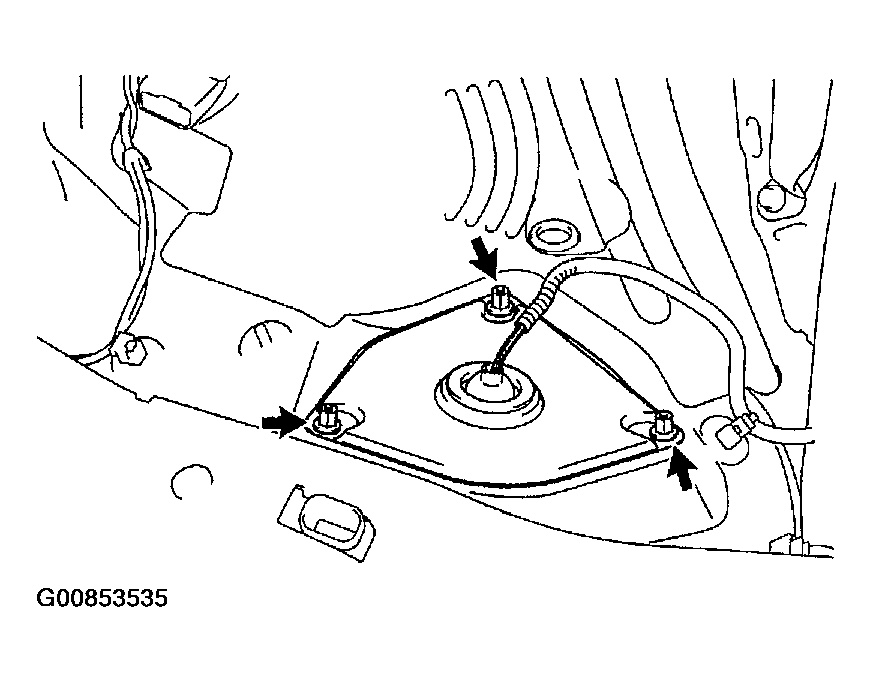

Fig 5: Installing Service Hole Cover
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR SEAT CUSHION
