Home >> Lexus >> 2004 >> GS 430 >> Repair and Diagnosis >> Engine Performance >> Fuel Delivery >> SFI System (3UZ-FE) >> Engine Coolant Temperature (ECT) Sensor >> Components

Engine Coolant Temperature (ECT) Sensor: Components

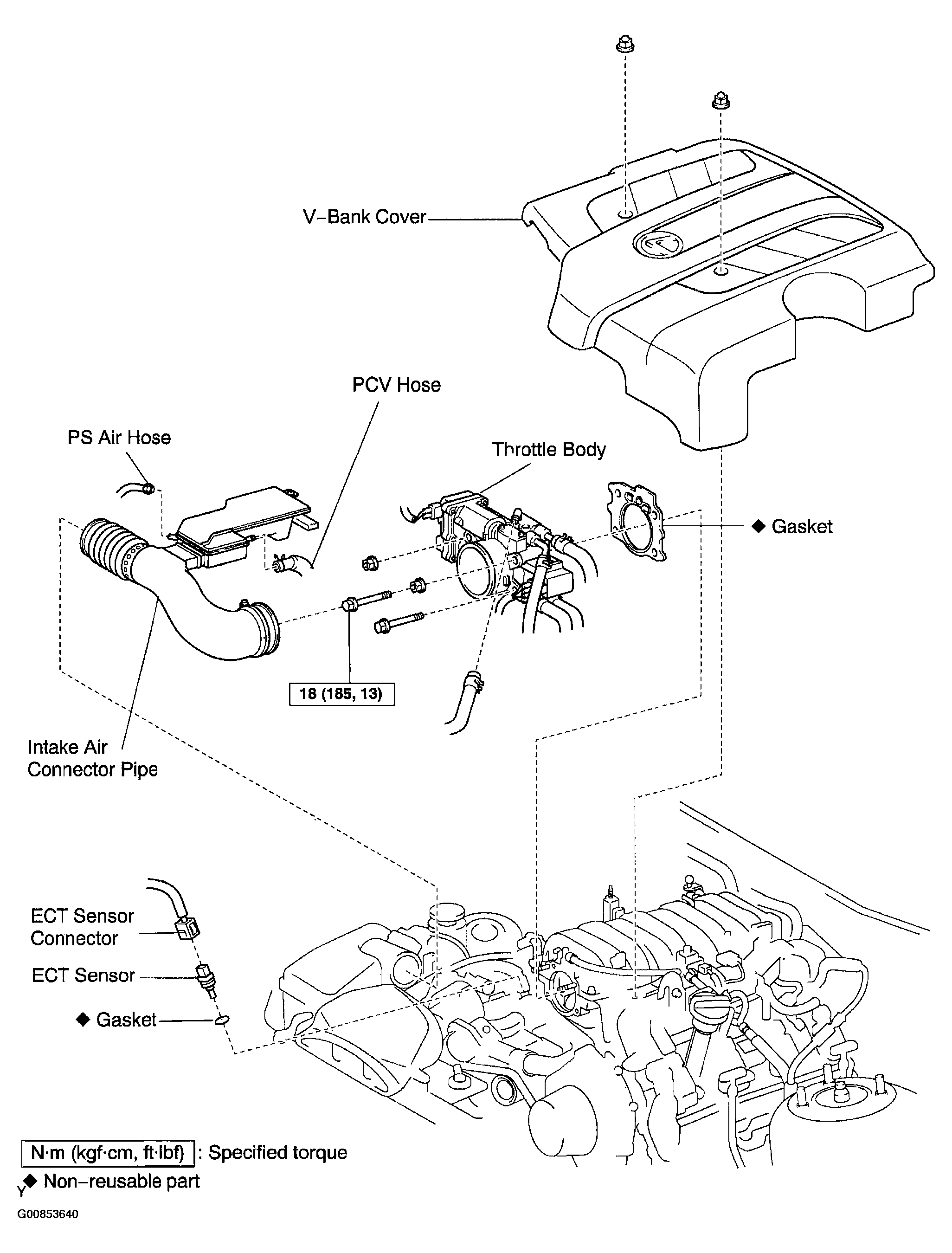

Fig 1: Identifying Engine Coolant Temperature (ECT) Sensor Components

G00853640

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
