Cylinder Block: Components

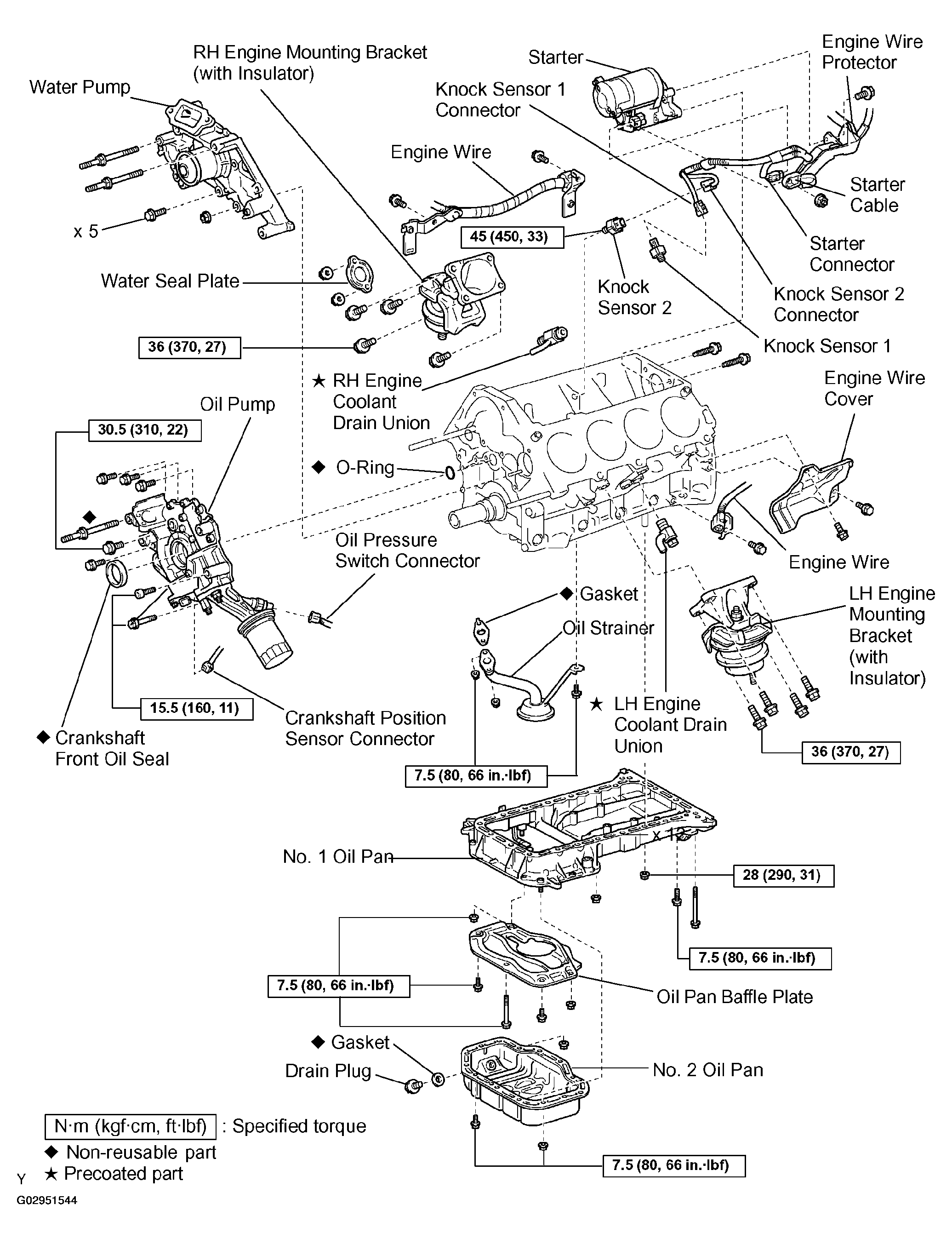

Fig 1: Identifying Cylinder Block Components (1 Of 2)
G02951544Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

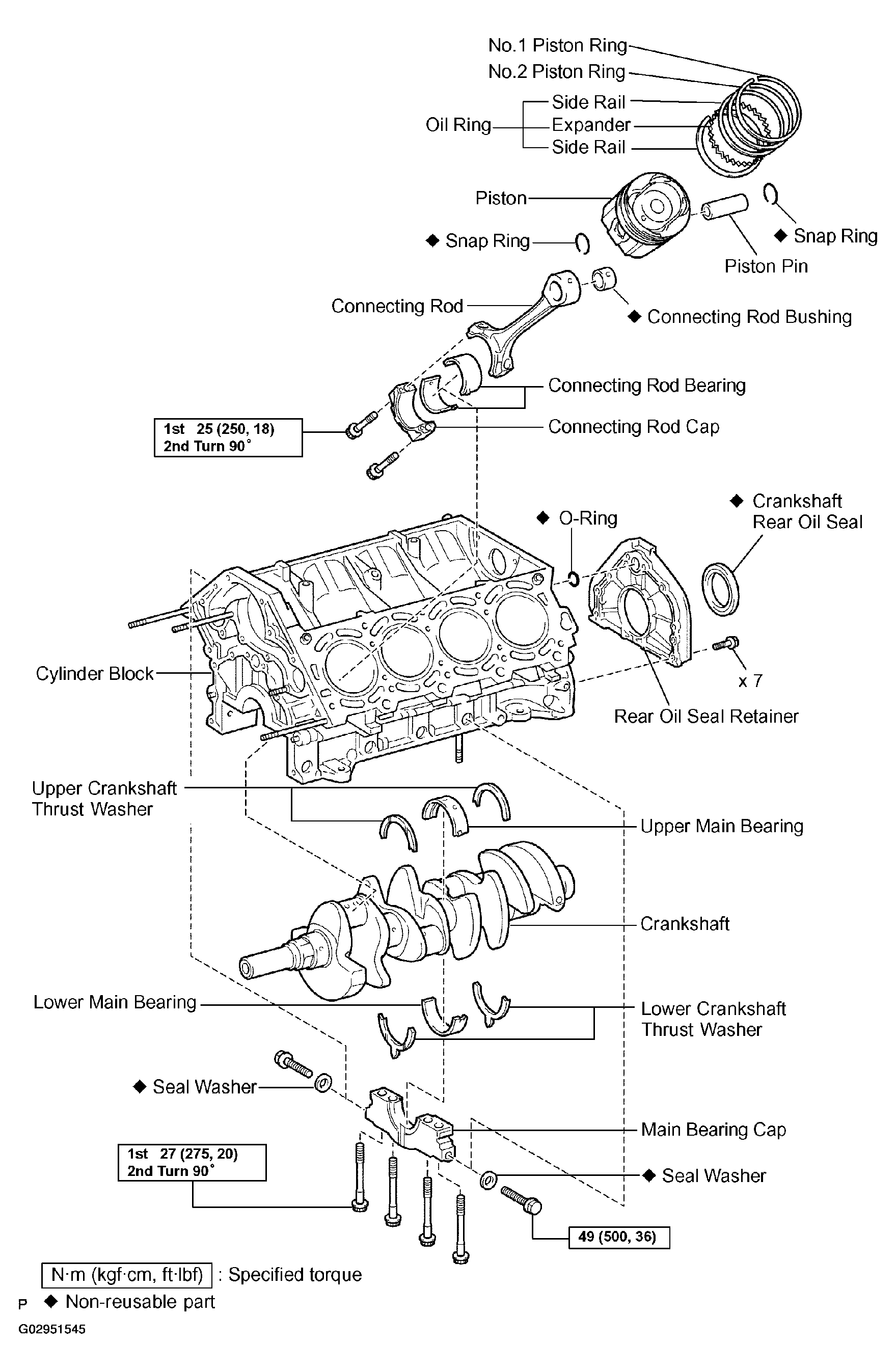

Fig 2: Identifying Cylinder Block Components (2 Of 2)
G02951545Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
