Indicator Light And Warning Light:

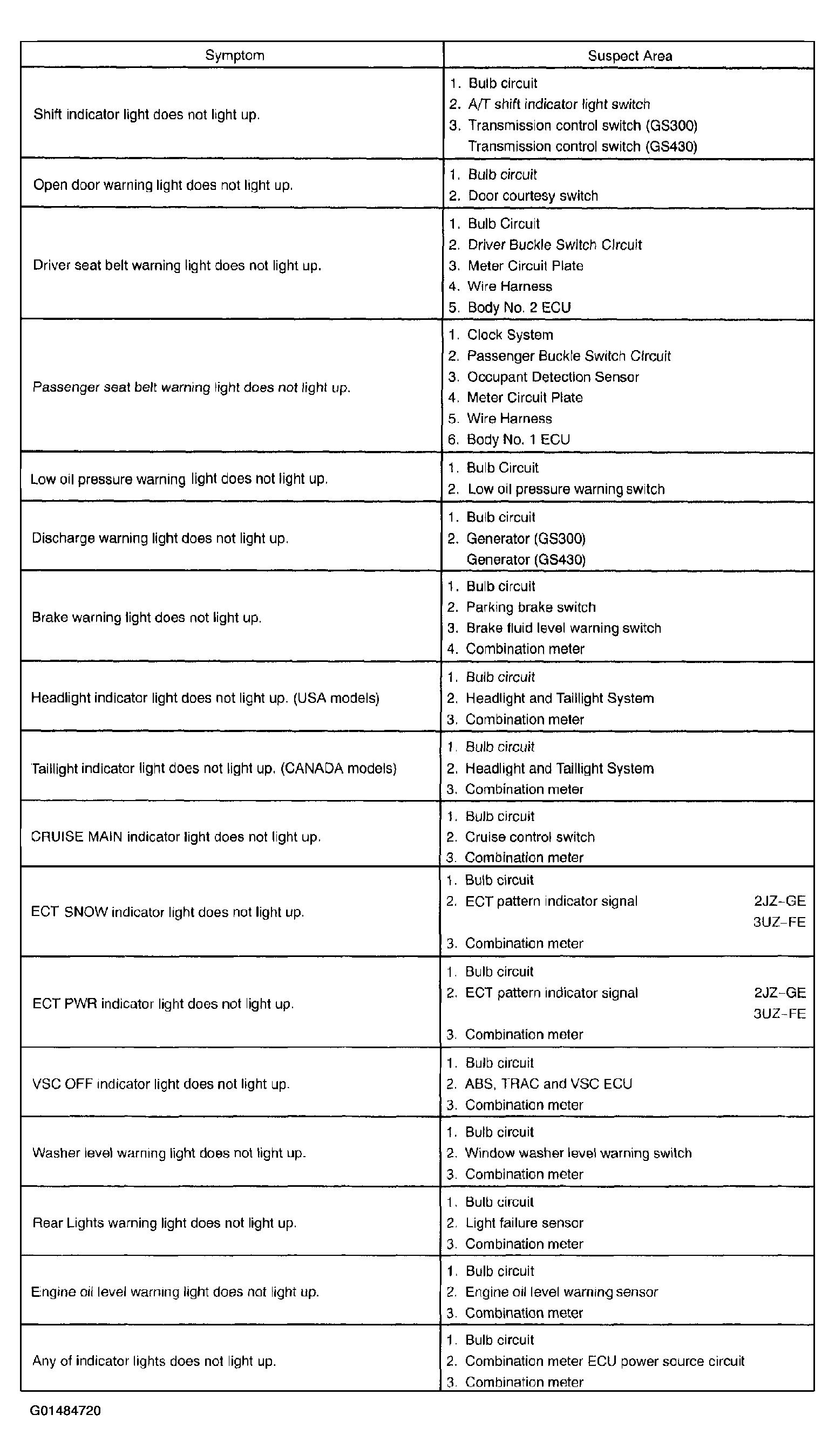

Fig 1: Symptom Chart

G01484720

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
