Home >> Lexus >> 2004 >> GS 430 >> Repair and Diagnosis >> Body & Frame >> Exterior/Interior Trim >> Front Door >> Components

Front Door: Components

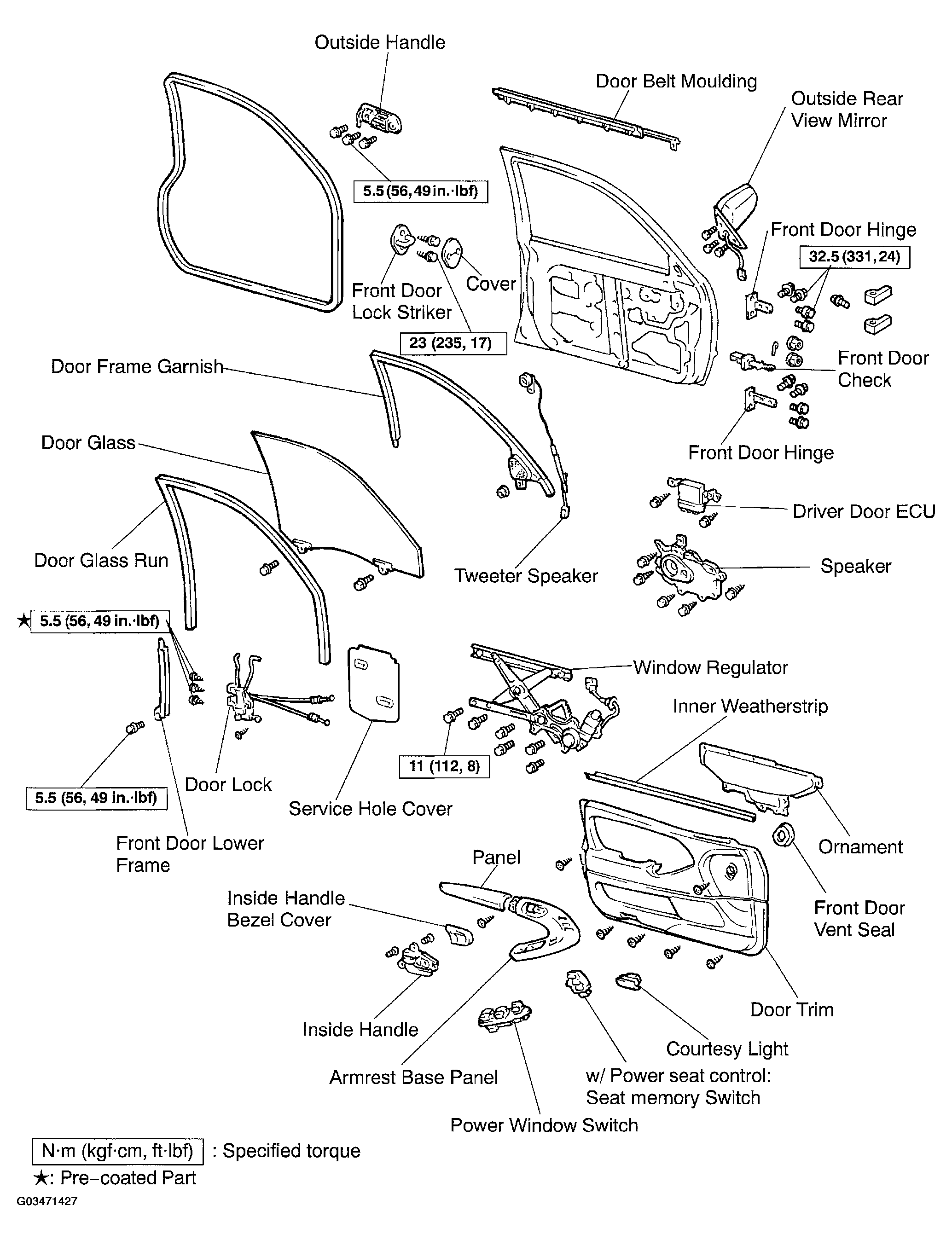

Fig 1: Identifying Front Door Components

G03471427

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
