Engine Immobilizer System: Location

The vehicle shown in this illustration is "GS430".
All components of "GS300" other than the ones used for engine are same as "GS430".

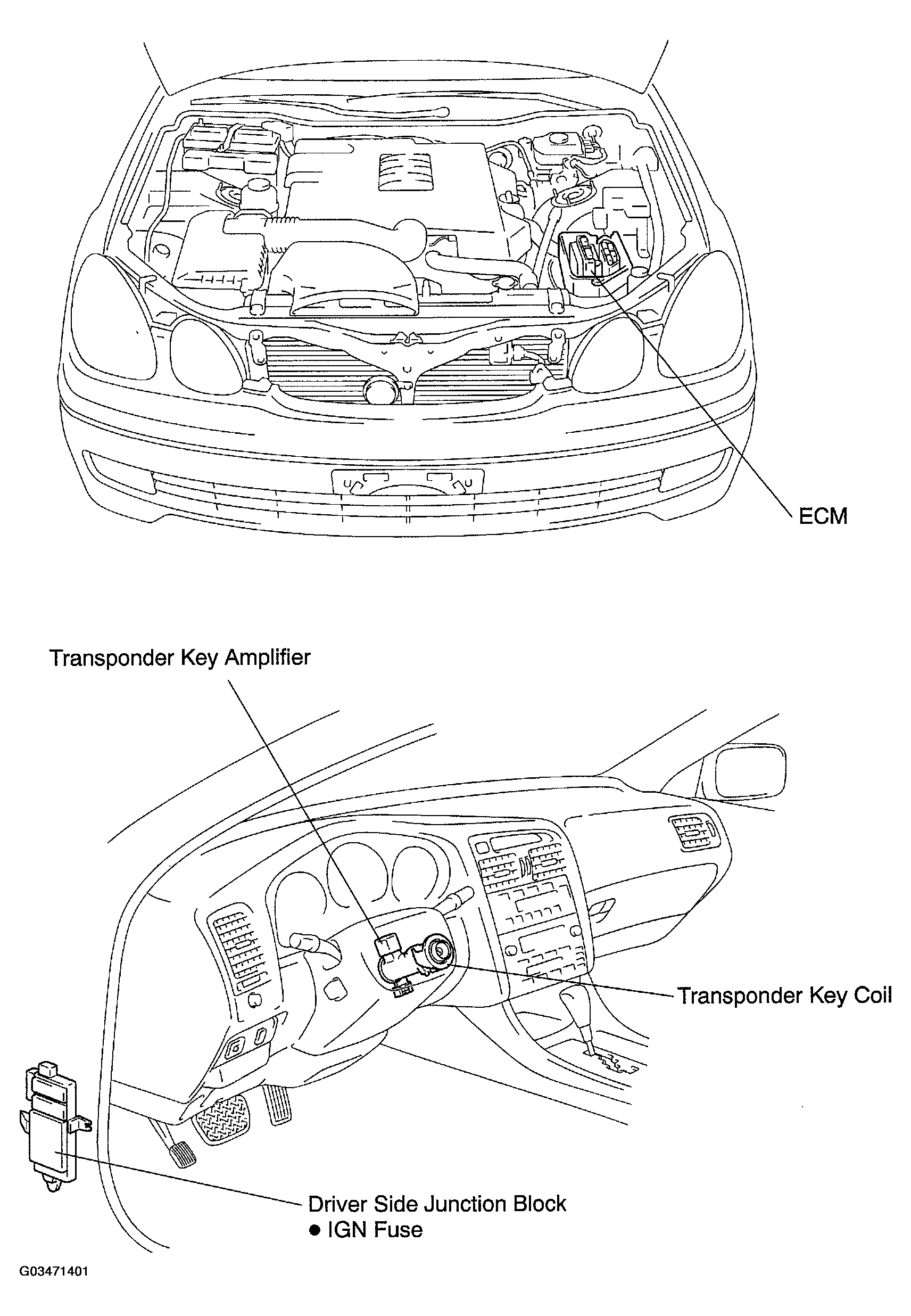

Fig 1: Locating Engine Immobiliser System
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
