Engine Immobilizer System - Diagnostics
>>
Terminals Of ECM
Terminals Of ECM

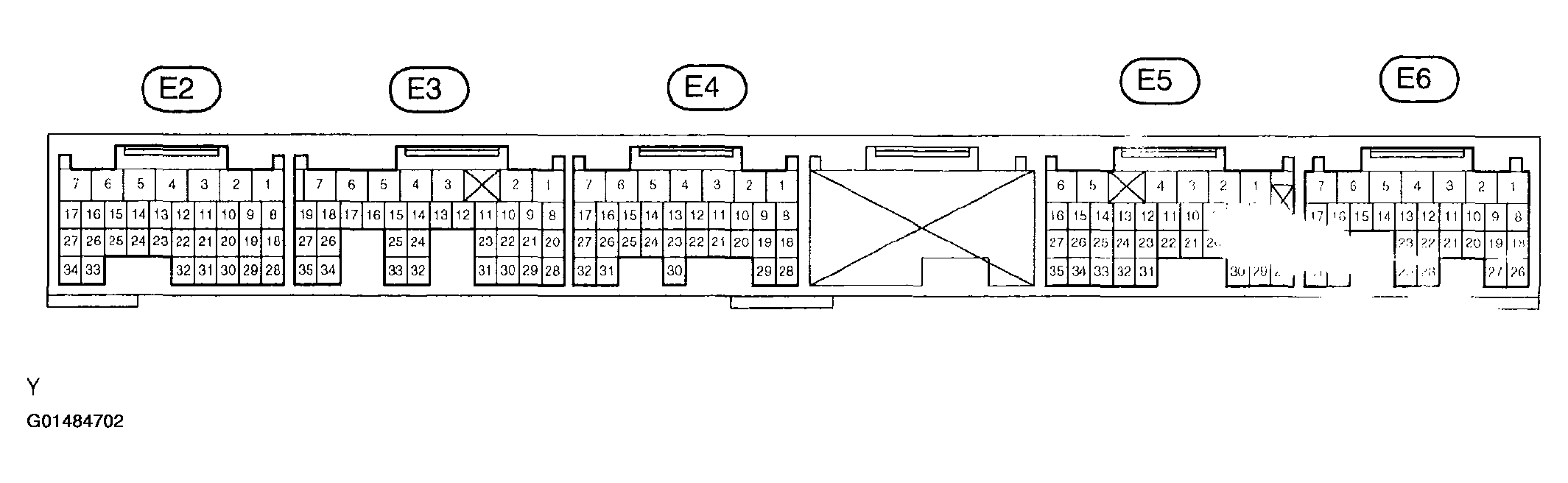

Fig 1: Identifying Terminals Of ECM
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

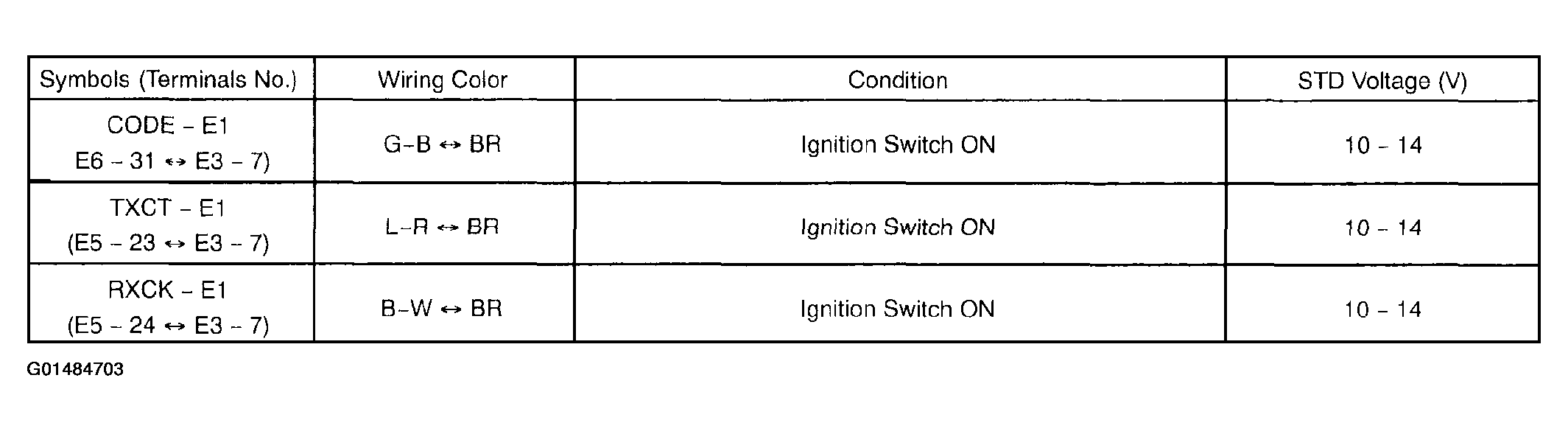

Fig 2: Symbols Specification
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
