Power source circuit: Wiring Diagram

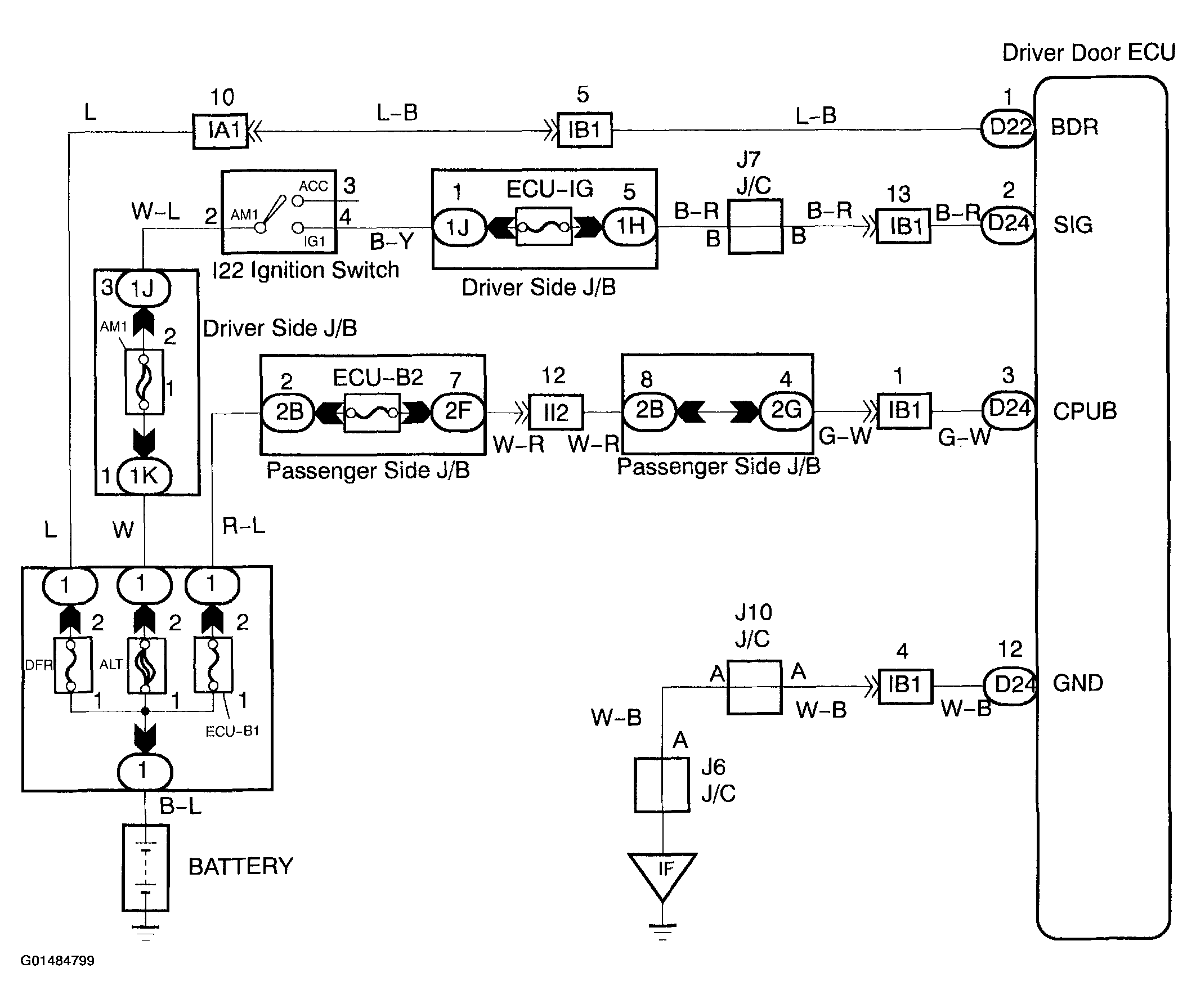

Fig 1: Power Source Circuit Wiring Diagram

G01484799

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
