Knock Sensor: Components

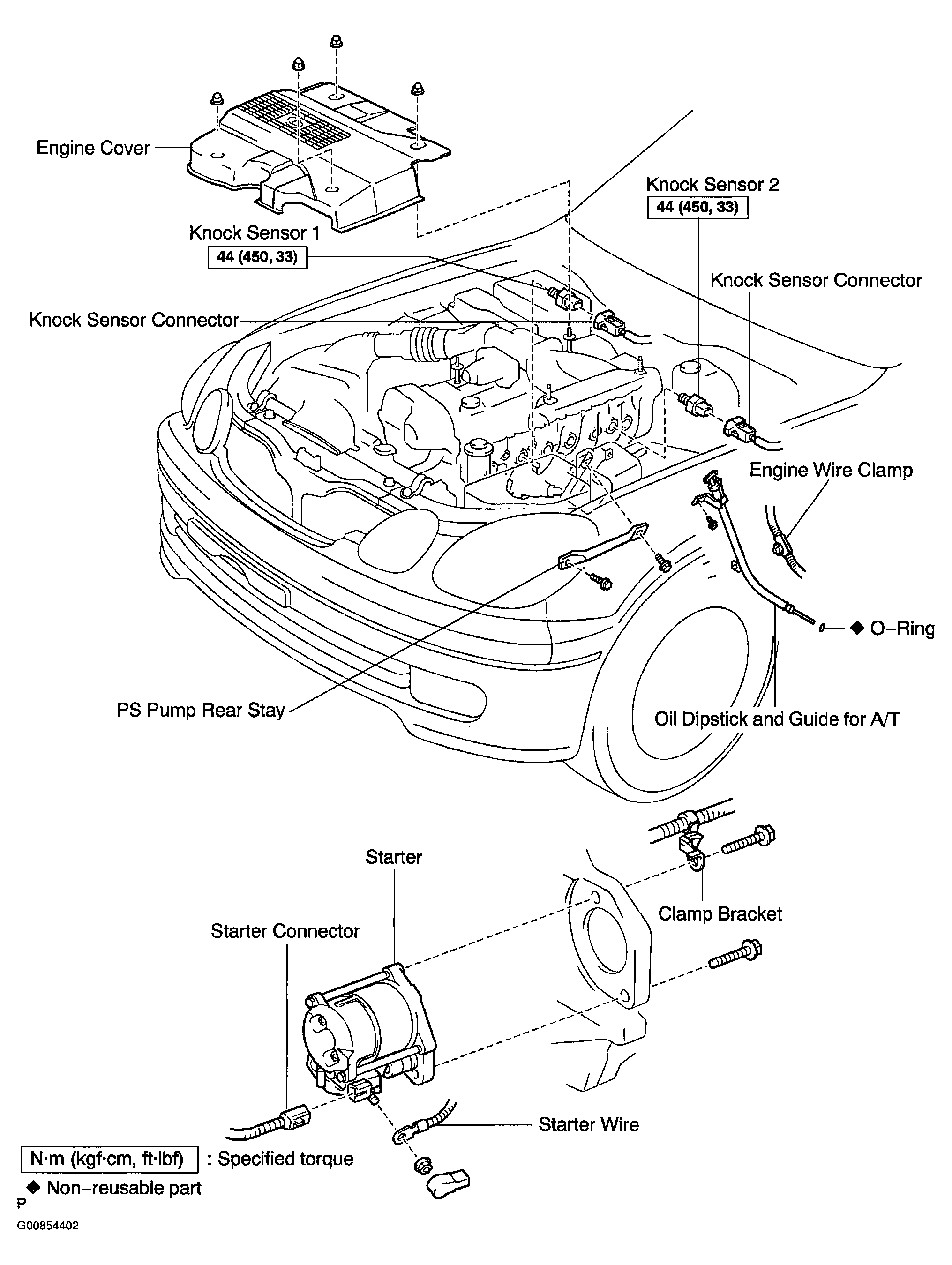

Fig 1: Identifying Knock Sensor Components

G00854402

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
