Fuel Pressure Regulator: Components

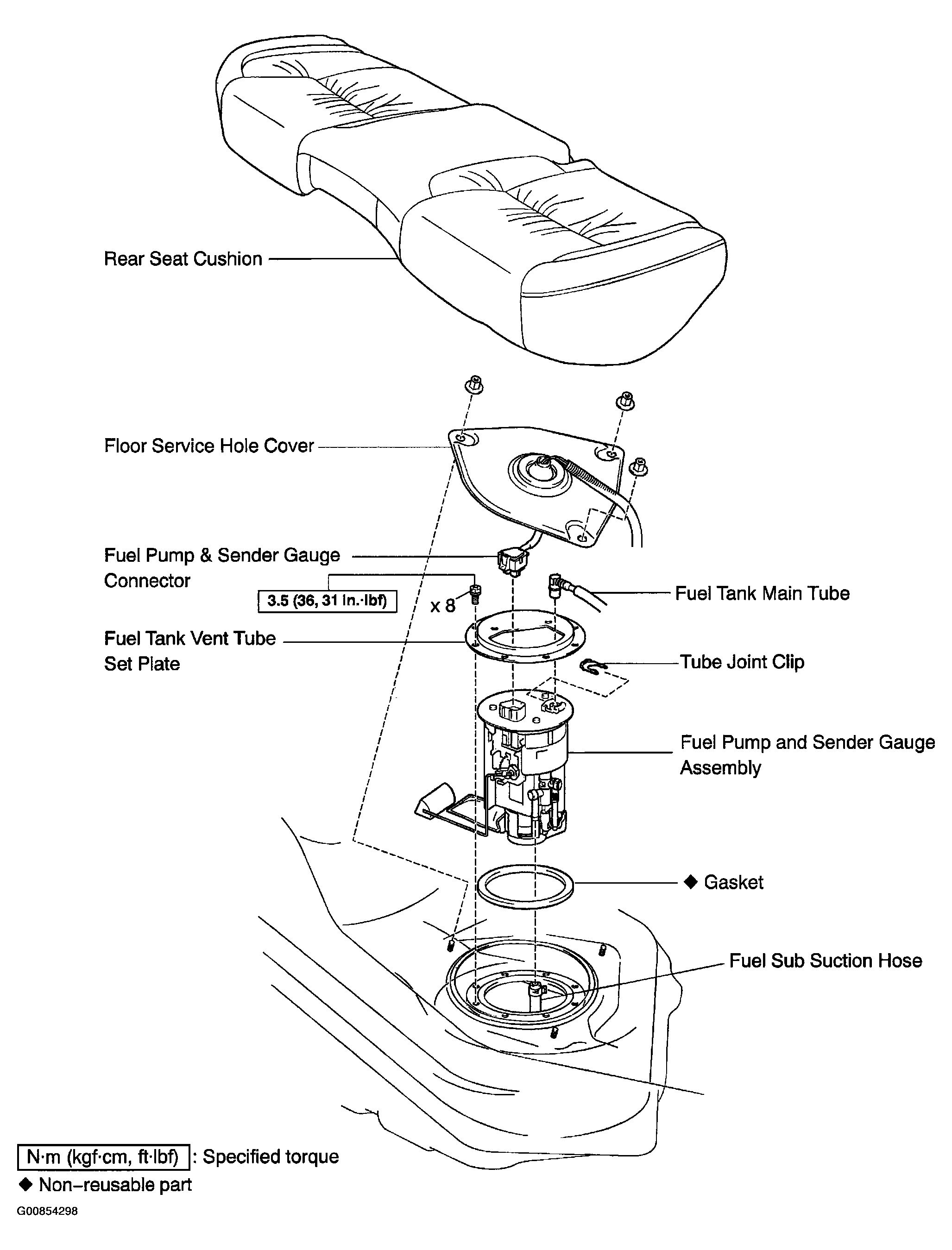

Fig 1: Identifying Fuel Pressure Regulator Components (1 Of 2)
G00854298Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

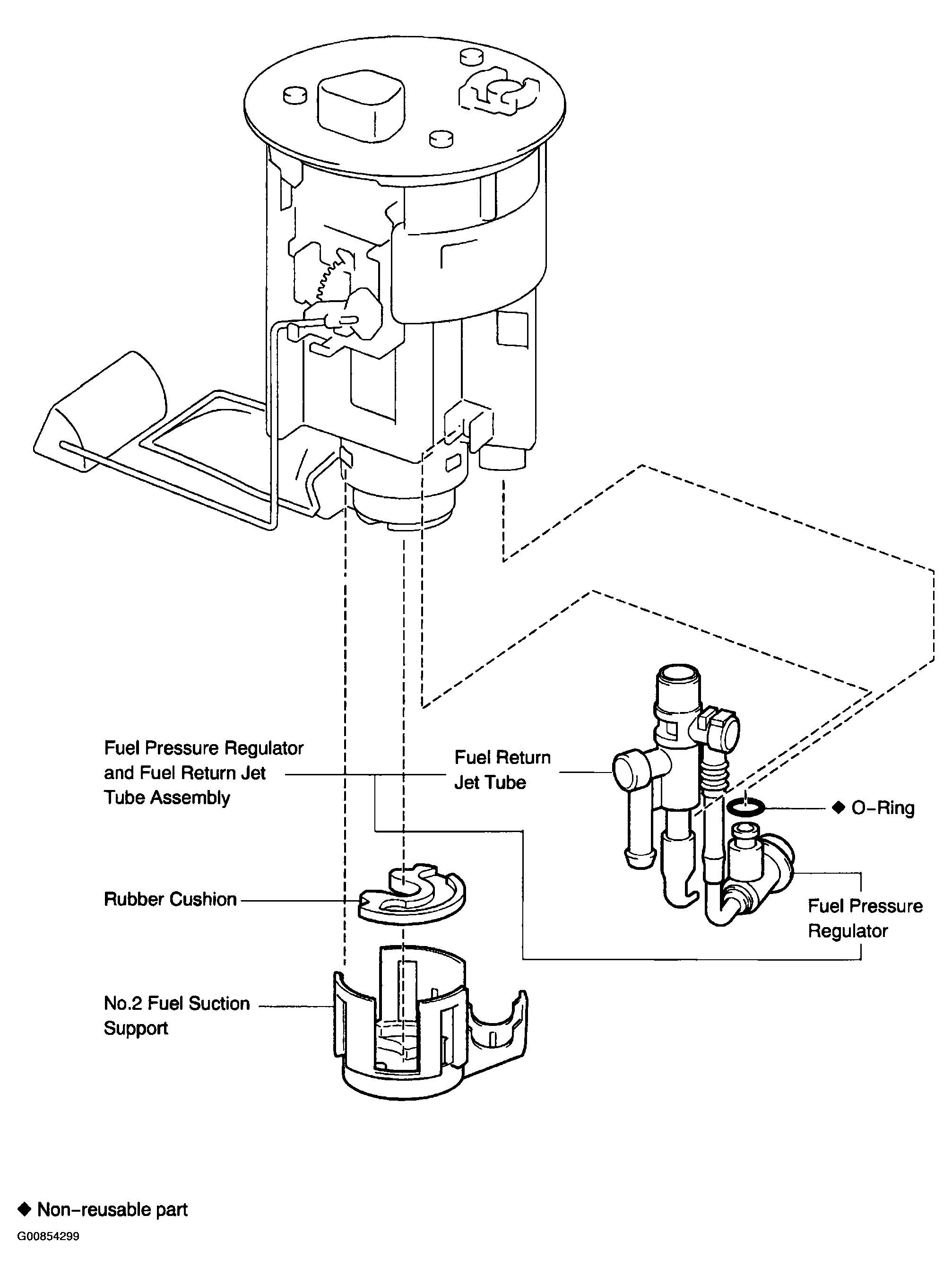

Fig 2: Identifying Fuel Pressure Regulator Components (2 Of 2)
G00854299Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
