Home >> Lexus >> 2004 >> GS 300 >> Repair and Diagnosis >> Engine Performance >> Fuel Delivery >> SFI System (2JZ-GE) >> Acoustic Control Induction System (ACIS) >> Components

Acoustic Control Induction System (ACIS): Components

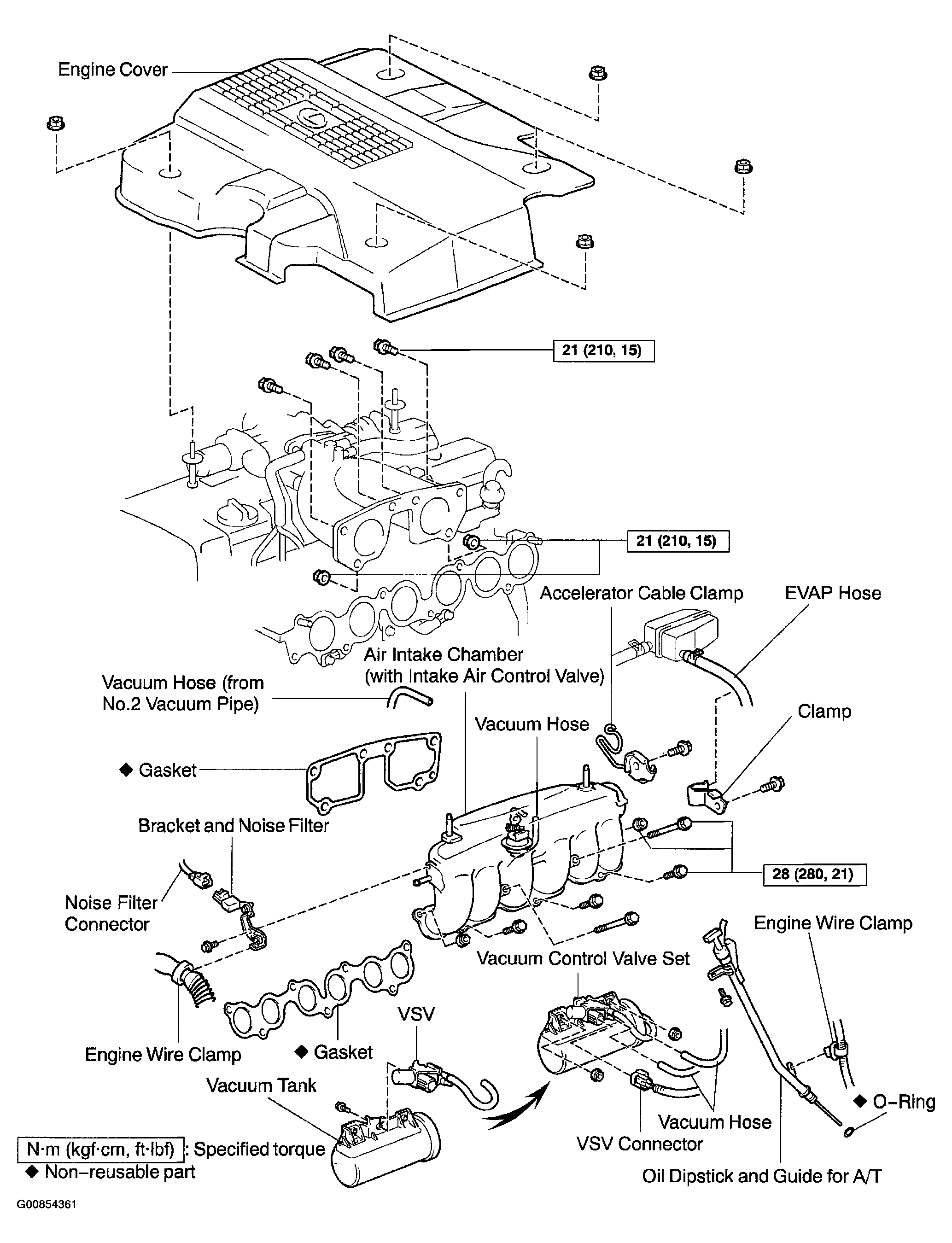

Fig 1: Identifying Acoustic Control Induction System Component

G00854361

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
