Circuit Description

ECM controls idle speed to the most appropriate speed according to a signal from the power steering pressure sensor.

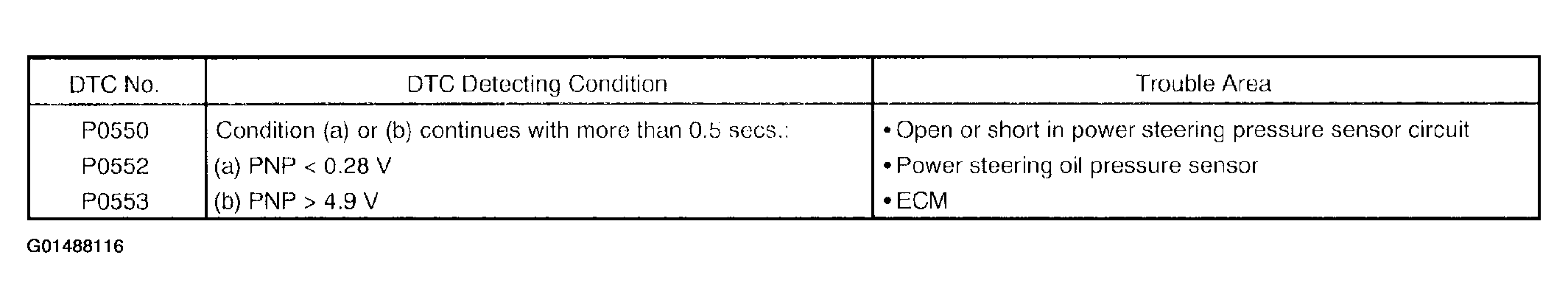

Fig 1: DTC Detecting Condition Table
G01488116Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
