Automatic Transmission (Service Specifications)
>>
Automatic Transmission / Transaxle
>>
Torque Specification
Torque Specification

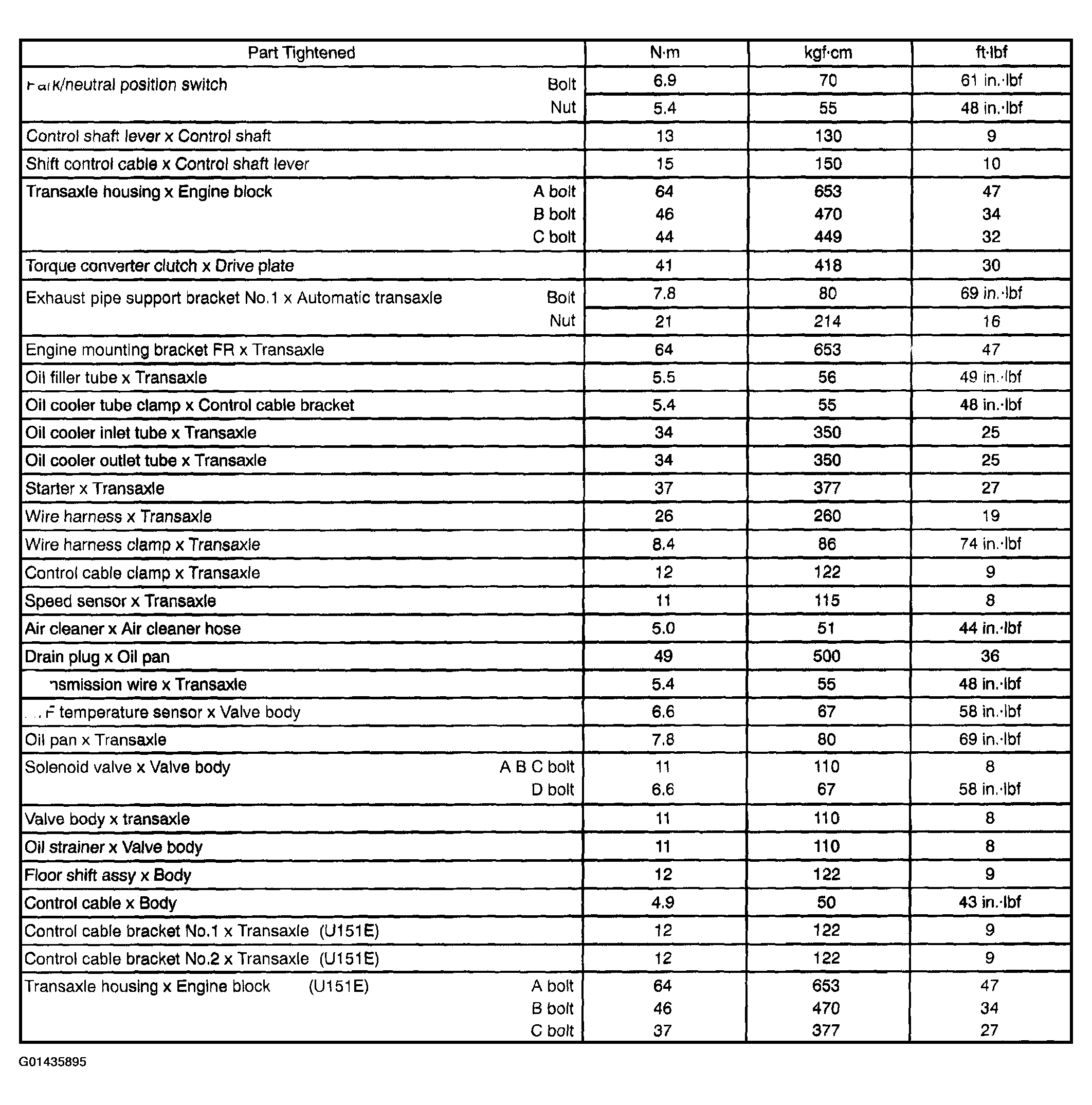

Fig 1: Automatic Transmission/Transaxle Torque Specification Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
