Vane Pump ASSY: Components

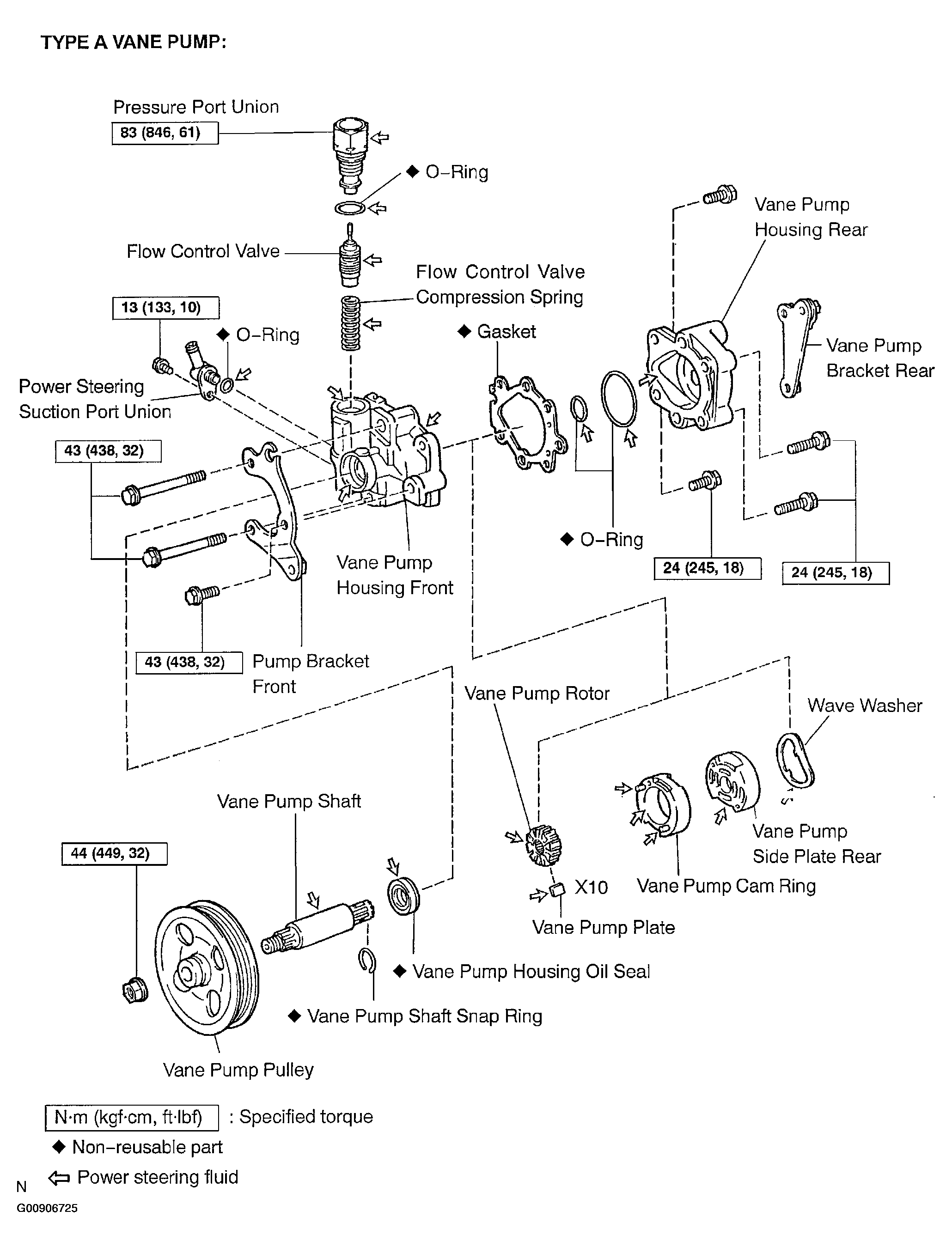

Fig 1: Identifying Vane Pump Assy (Type A) Components
G00906725Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

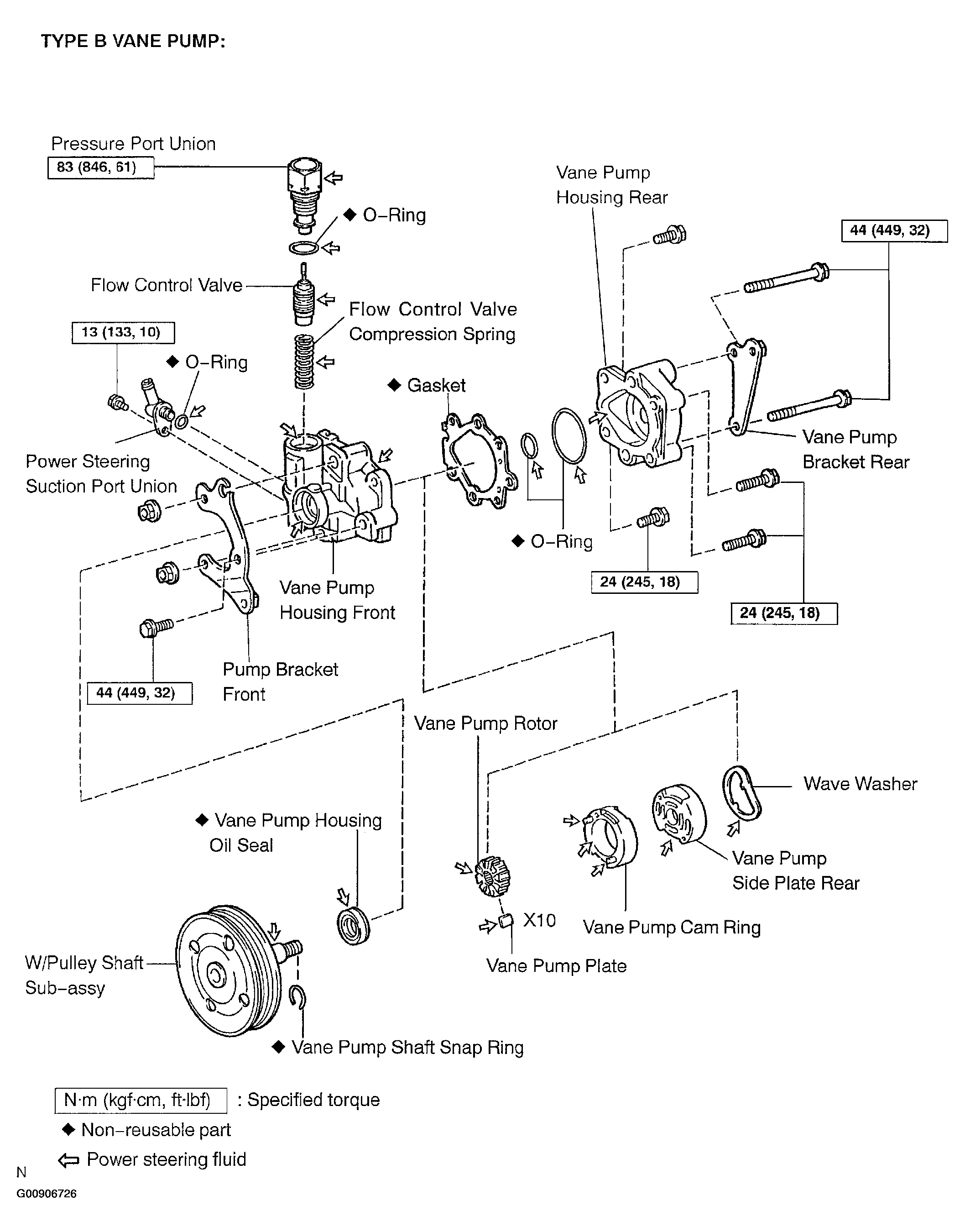

Fig 2: Identifying Vane Pump Assy (Type B) Components
G00906726Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
