On-Vehicle Inspection
WARNING: This page is about a different car, the 2005 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.
- INSPECT TURN SIGNAL FLASHER CIRCUIT
- Measure voltage between the terminals as shown in TURN SIGNAL FLASHER
.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Standard:

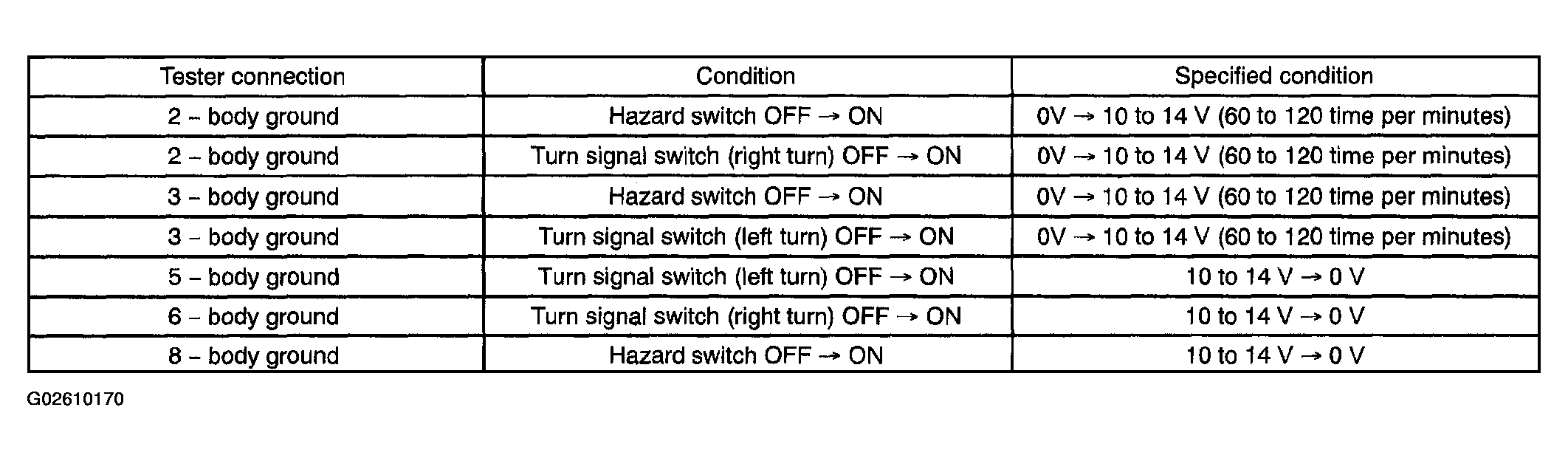

TURN SIGNAL FLASHERTester connection Condition Specified condition 1 - body ground Turn ignition switch ON 10 to 14 V 1 - body ground Turn ignition switch OFF No voltage 4 - body ground Always 10 to 14 V 7 - body ground Always Continuity - Connect the connector to turn the signal flasher and turn the ignition switch ON, and inspect the wire harness side connector from the back side as shown in Fig 2 .
- Measure voltage between the terminals as shown in TURN SIGNAL FLASHER
.
- INSPECT HEADLAMP ASSEMBLY (HEADLIGHT BEAM LEVEL CONTROL ACTUATOR OPERATION)
- Disconnect the connector from the headlamp assy.

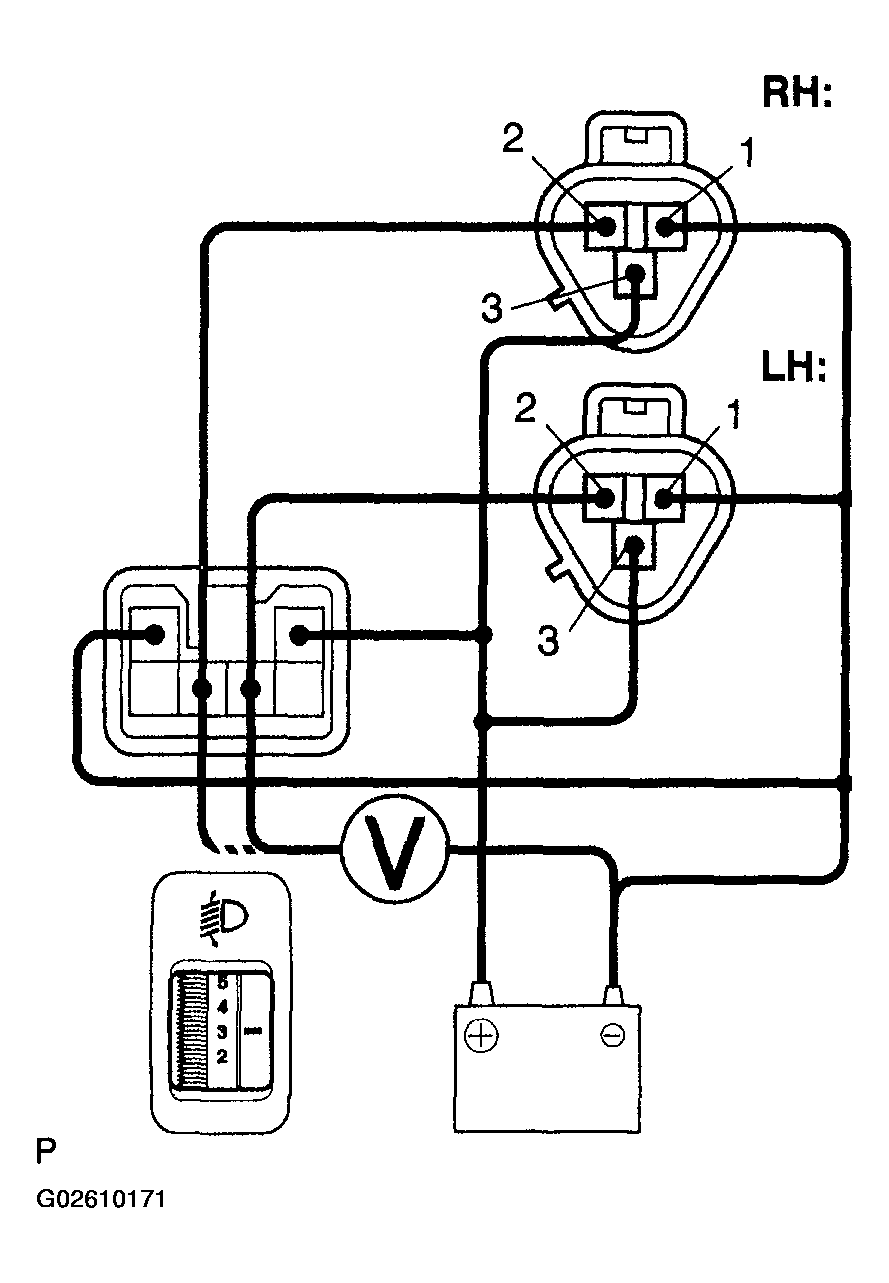

- Connect the positive (+) lead from the battery to the terminal 3 of each of the headlight beam level control actuator and negative (-) lead from the battery to the terminal 1 of each of the headlight beam level control actuator.
- Connect the positive (+) lead from the battery to the terminal 1 of the headlamp levering switch and negative (-) lead from the battery to the terminal 2 of the headlamp levering switch.
- Connect the terminal 4 of the headlamp leveling switch and the terminal 2 of the headlight beam level control actuator LH, and connect the terminal 5 of the headlamp leveling switch and the terminal 2 of the headlight beam level control actuator RH.
- Measure voltage between each of the headlight beam level control actuator and battery negative (-) terminal when headlamp levering switch is operated.
Standard:
HEADLAMP ASSEMBLY (HEADLIGHT BEAM LEVEL CONTROL ACTUATOR OPERATION)Switch position Specified voltage (V) 0 9.0 to 12.6 1 7.9 to 11.1 2 6.9 to 9.6 3 5.8 to 8.2 4 4.7 to 6.6 5 3.7 to 5.1
