LH Headlamp ASSY: Components

WARNING: This page is about a different car, the 2005 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.

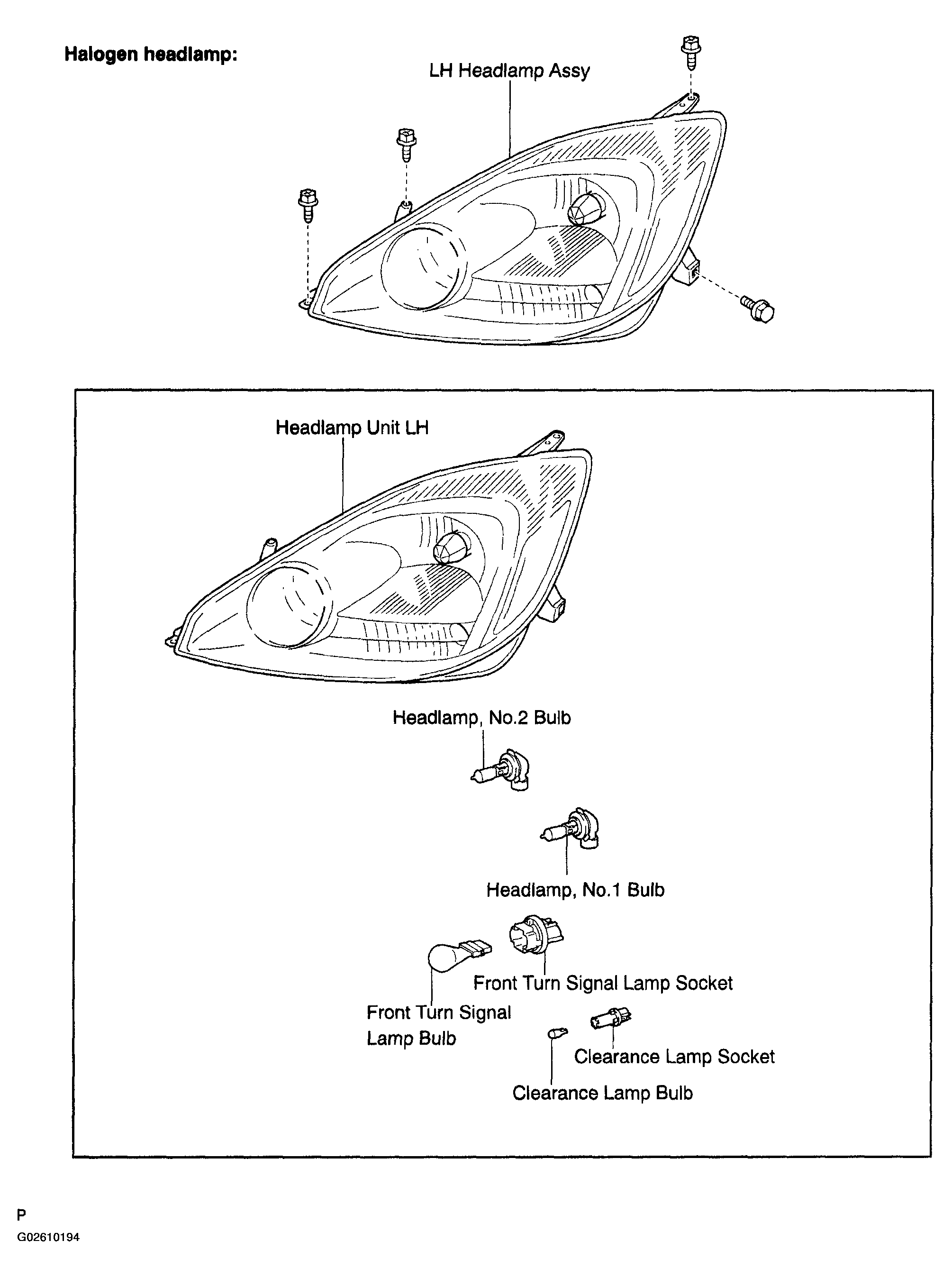

Fig 1: Identifying LH Headlamp Assy Components (Halogen Headlamp)
G02610194Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

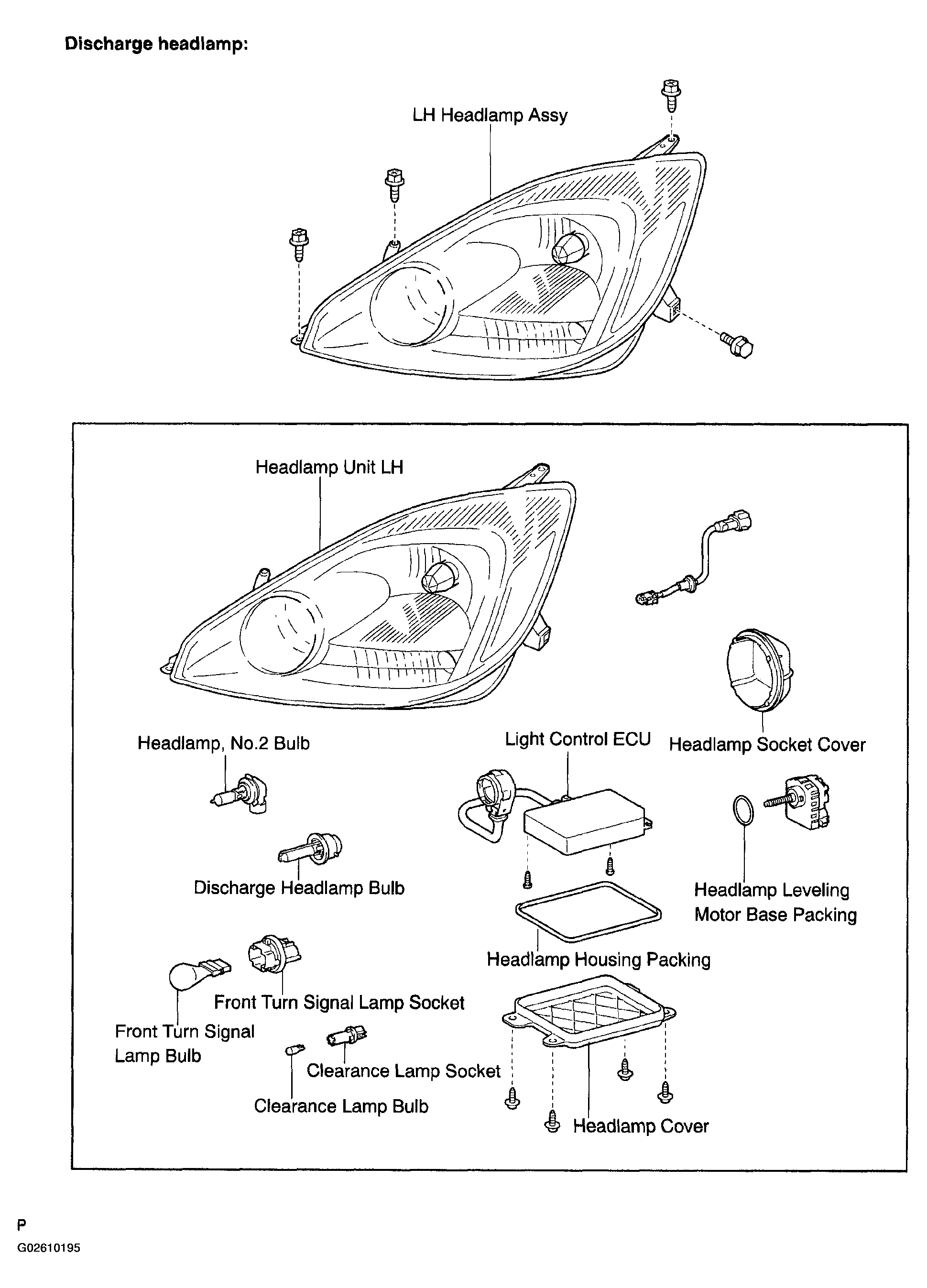

Fig 2: Identifying LH Headlamp Assy Components (Discharge Headlamp)
G02610195Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
