Radio Receiver Assembly (W/ Navigation System): Replacement

WARNING: This page is about a different car, the 2004 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: COMPONENTS: See COMPONENTS
  1. REMOVE INSTRUMENT CLUSTER FINISH PANEL CENTER NO. 1 (See  INSTRUMENT PANEL/METER  )
  2. REMOVE INSTRUMENT CLUSTER FINISH PANEL CENTER NO. 2 (See  INSTRUMENT PANEL/METER  )
  3. REMOVE INSTRUMENT CLUSTER FINISH PANEL GARNISH (See  INSTRUMENT PANEL/METER  )
  4. REMOVE RADIO RECEIVER ASSEMBLY W/BRACKET
    1. Disconnect the connectors and remove the 4 screws and the radio receiver assembly w/ bracket.

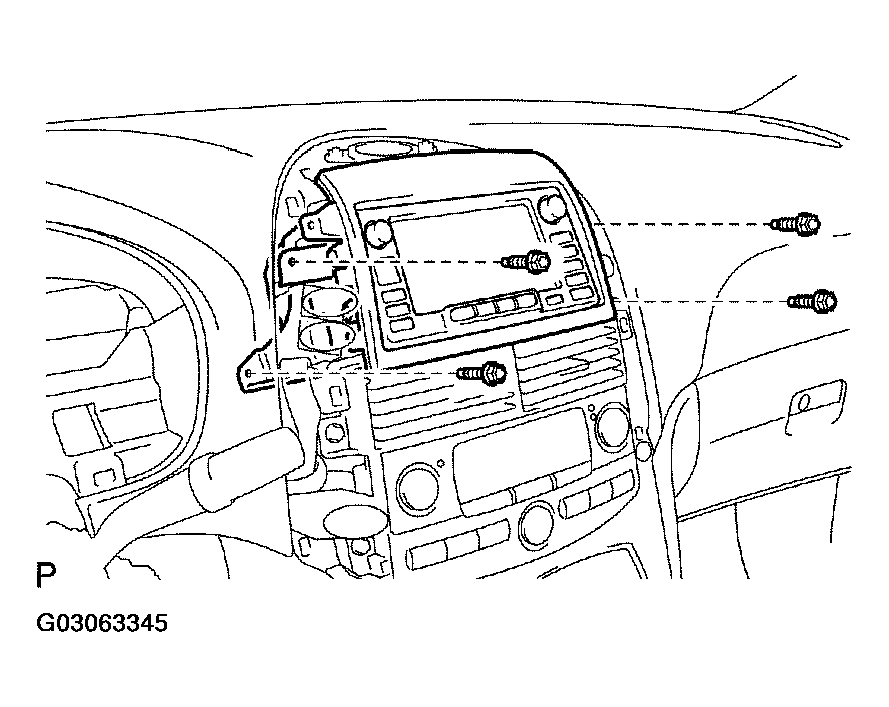

    Fig 1: Removing Radio Receiver Assembly W/Bracket
    G03063345Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE INSTRUMENT CLUSTER FINISH PANEL UPPER
    1. Remove the 4 screws and the instrument cluster finish panel upper.

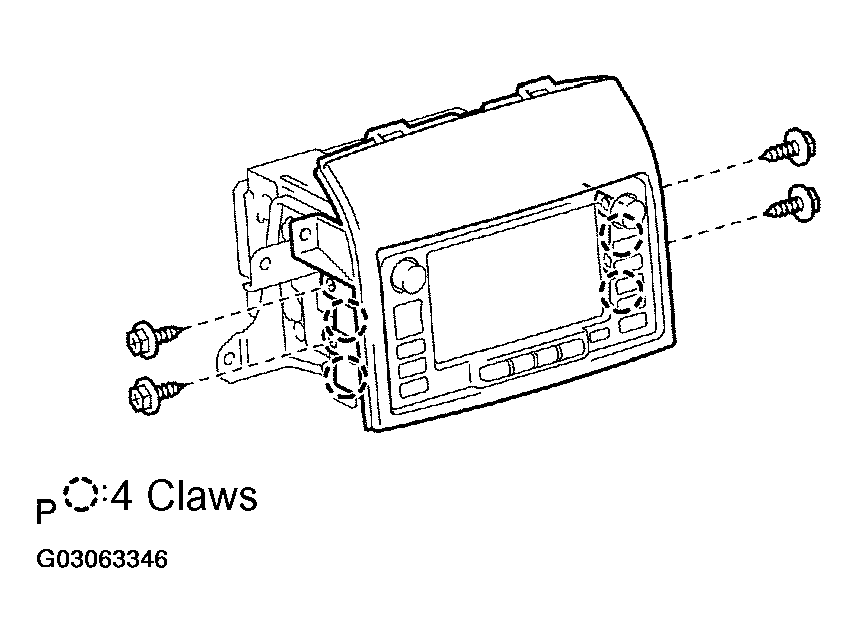

    Fig 2: Removing Instrument Cluster Finish Panel Upper
    G03063346Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE RADIO BRACKET NO. 1
    1. Remove the 4 screws and the radio bracket No. 1.

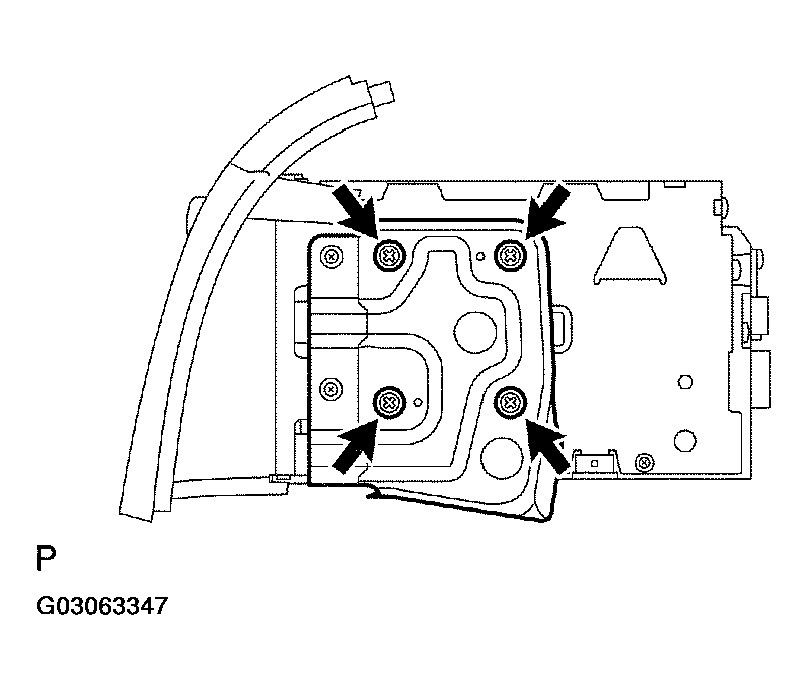

    Fig 3: Removing Radio Bracket No. 1
    G03063347Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE RADIO BRACKET NO. 2
    1. Remove the 4 screws and the radio bracket No. 2.

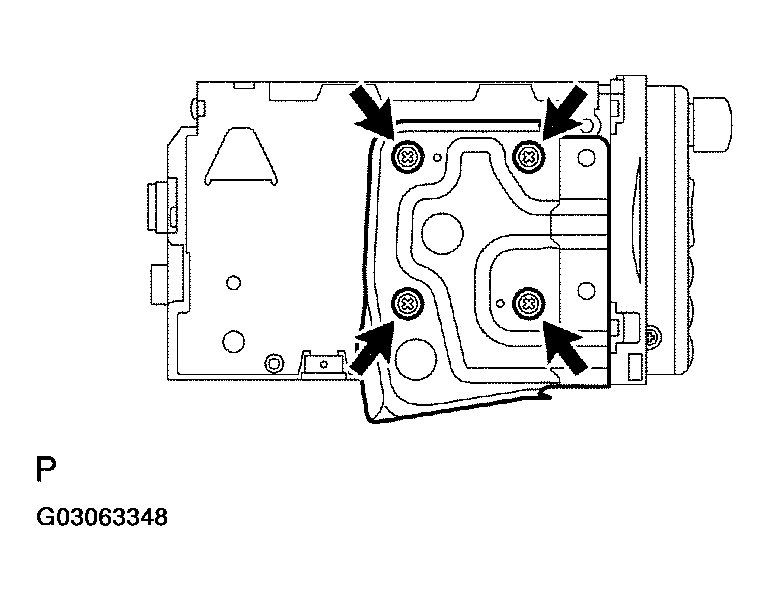

    Fig 4: Removing Radio Bracket No. 2
    G03063348Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE RADIO RECEIVER ASSY
