Section 152 (Drive Belt): Replacement

WARNING: This page is about a different car, the 2004 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE RIGHT HAND FRONT WHEEL
REMOVE RIGHT HAND FRONT FENDER APRON SEAL
REMOVE V BELT NO.1 (GENERATOR TO CRANKSHAFT PULLEY)
1. Loosen bolts A and B. See Fig 1.
2. Loosen the adjusting bolt C, and remove the V-ribbed belt.

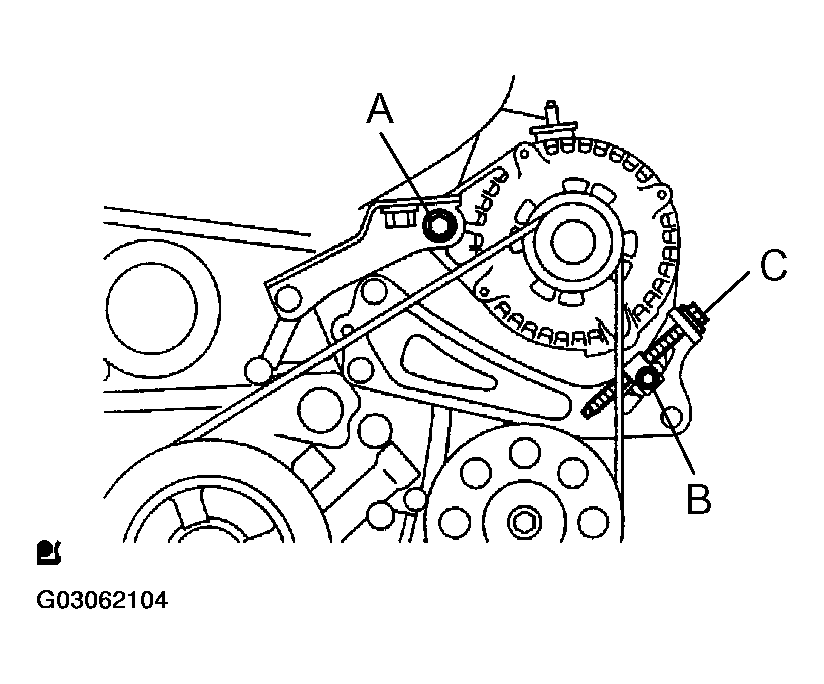

Fig 1: Identifying Generator Adjustment Bolts

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE VANE PUMP V BELT
1. Loosen bolts A and B, and remove the V-ribbed belt. See Fig 2.

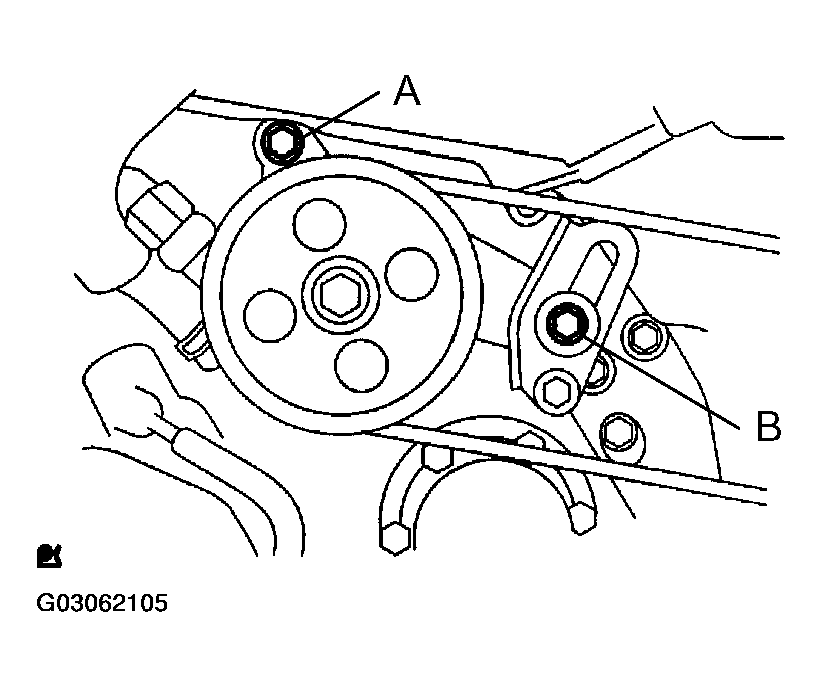

Fig 2: Identying Vane Pump Adjustment Bolts

INSTALL VANE PUMP V BELT
1. Install the V-ribbed belt on each pulley.
2. Using a bar, adjust the V-ribbed belt tension and tighten bolt B. See Fig 2.
  Torque: 44 N.m (449 kgf.cm, 32 ft. lbs.)
3. Tighten bolt A.
  Torque: 44 N.m (449 kgf.cm, 32 ft. lbs.)
INSTALL V BELT NO.1 (GENERATOR TO CRANKSHAFT PULLEY)
1. Install the V-ribbed belt on each pulley.
2. Tighten the adjusting bolt C, and adjust the V-ribbed belt tension. See Fig 1.
3. First tighten bolt A, then tighten bolt B.
Torque:

Bolt A 58 N.m (591 kgf.cm, 43 ft. lbs.)

Bolt B 18 N.m (184 kgf.cm, 13 ft. lbs.)
INSPECT DRIVE BELT DEFLECTION AND TENSION (REFERENCE).
INSTALL RIGHT HAND FRONT WHEEL
Torque: 103 N.m (1,050 kgf.cm, 76 ft. lbs.)
