Circuit Description

The throttle motor is operated by the ECM and it opens and closes the throttle valve.

The opening angle of the throttle valve is detected by the throttle position sensor which is mounted on the throttle body. The throttle position sensor provides feedback to the ECM. This feedback allows the ECM to control the throttle motor and monitor the throttle opening angle as the ECM responds to driver inputs.

HINT: This Electrical Throttle Control System (ETCS) does not use a throttle cable.

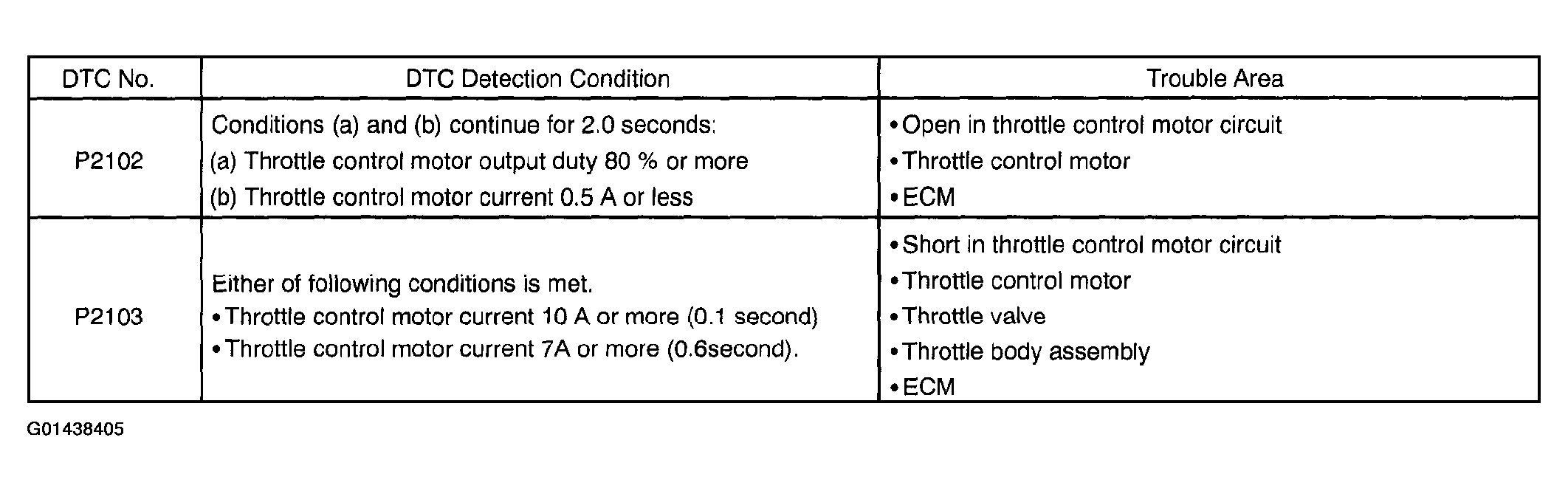

Fig 1: DTC P2102 And P2103 Diagnostic Chart
G01438405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
