Monitor Strategy

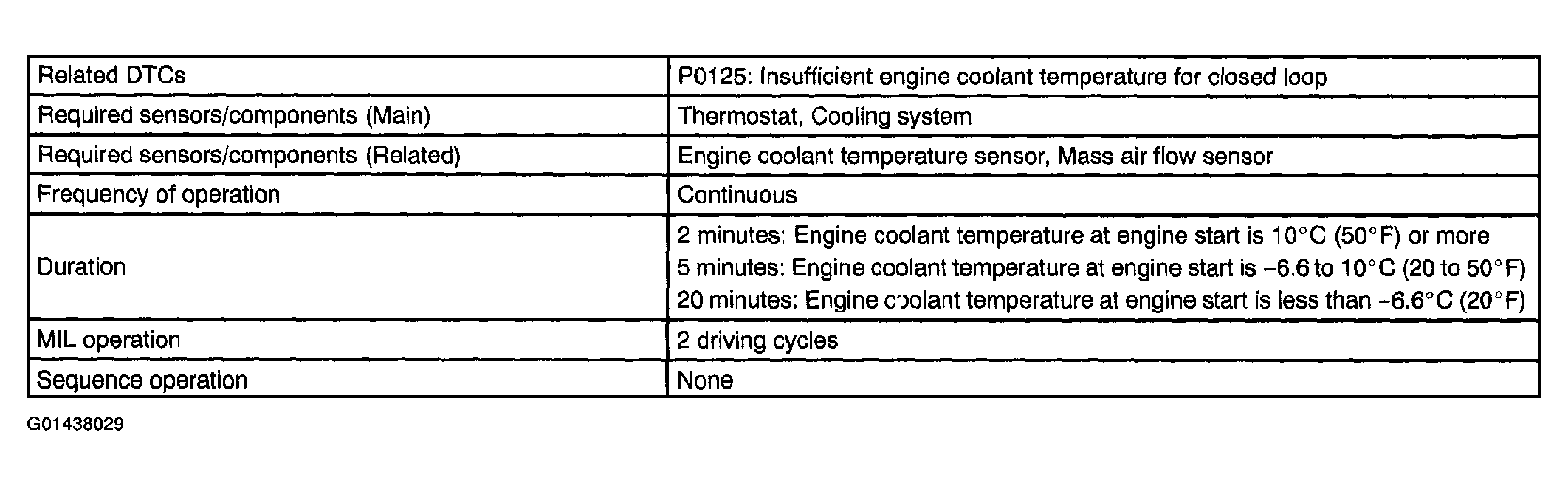

Fig 1: Monitor Strategy Table
G01438029Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
