Terminals Of Ecu

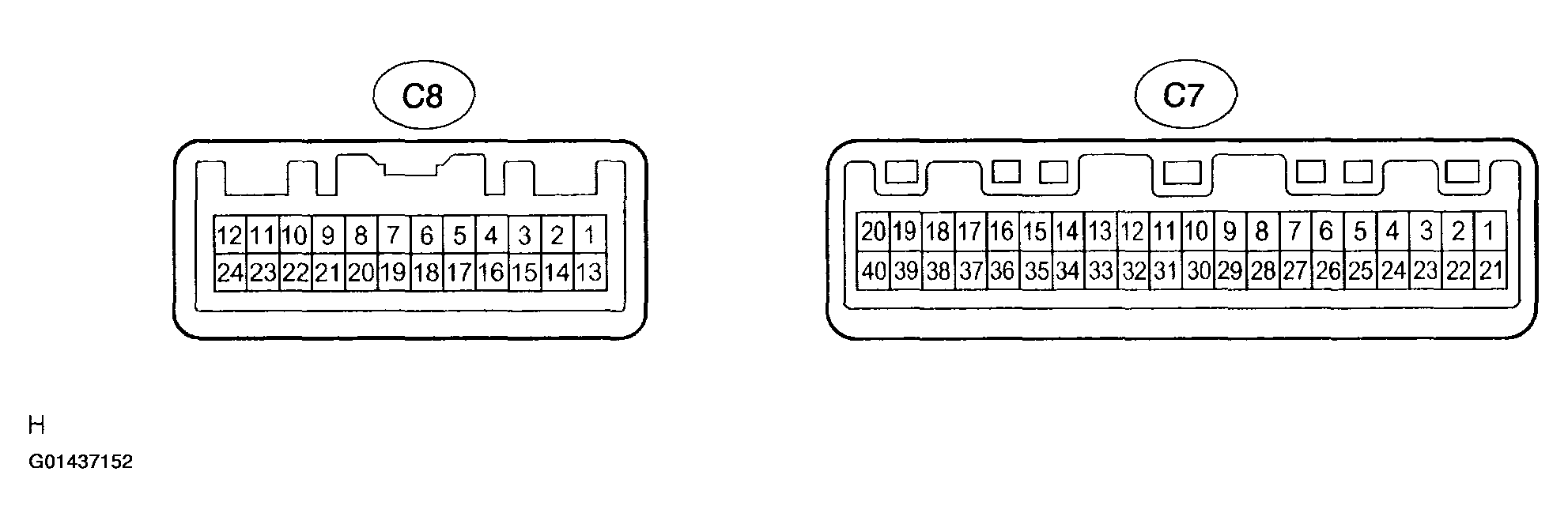

Fig 1: Identifying Connector Terminals Of C7 And C8

G01437152

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

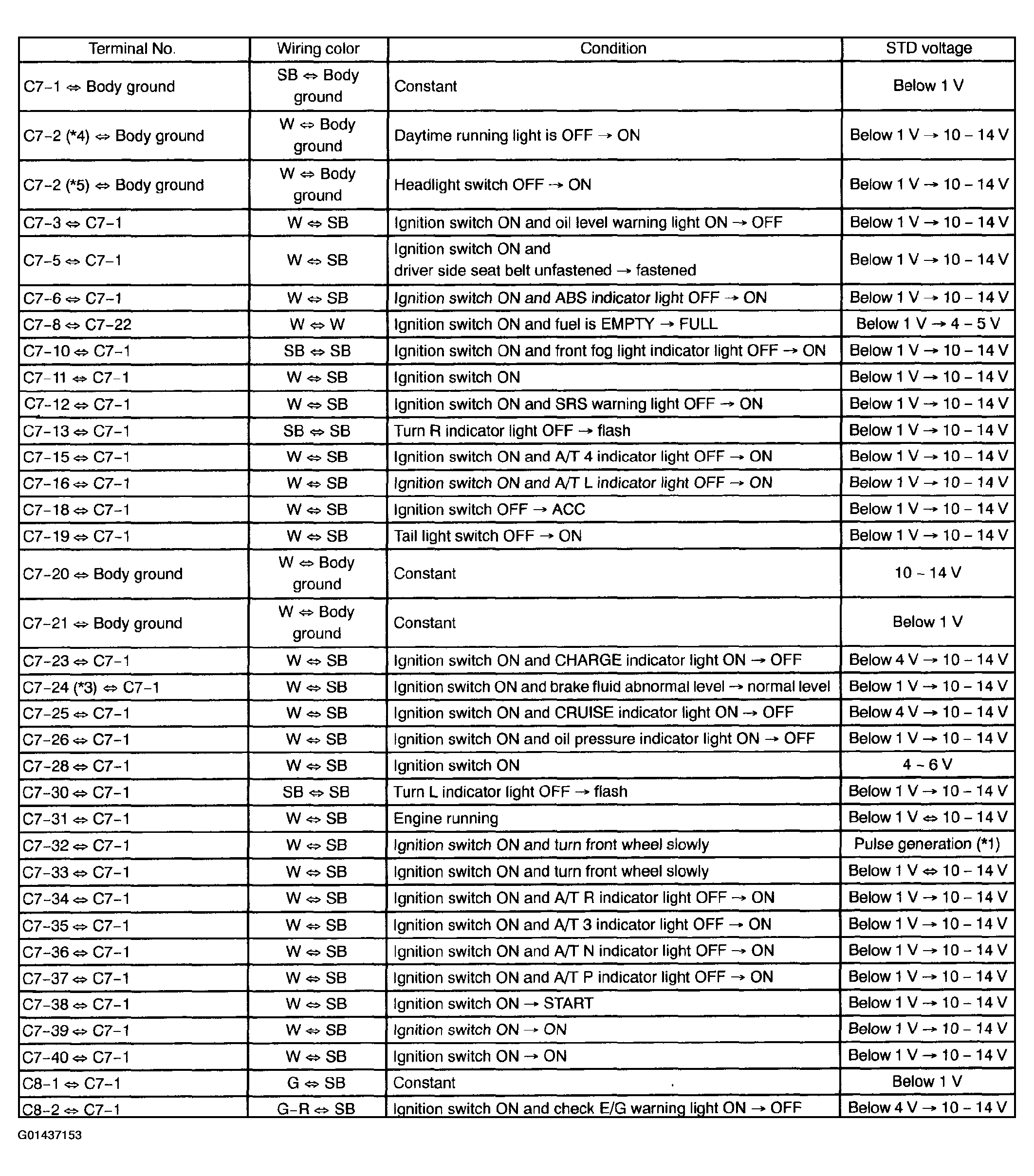

Fig 2: Terminal Reference Chart (1 Of 2)

G01437153

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

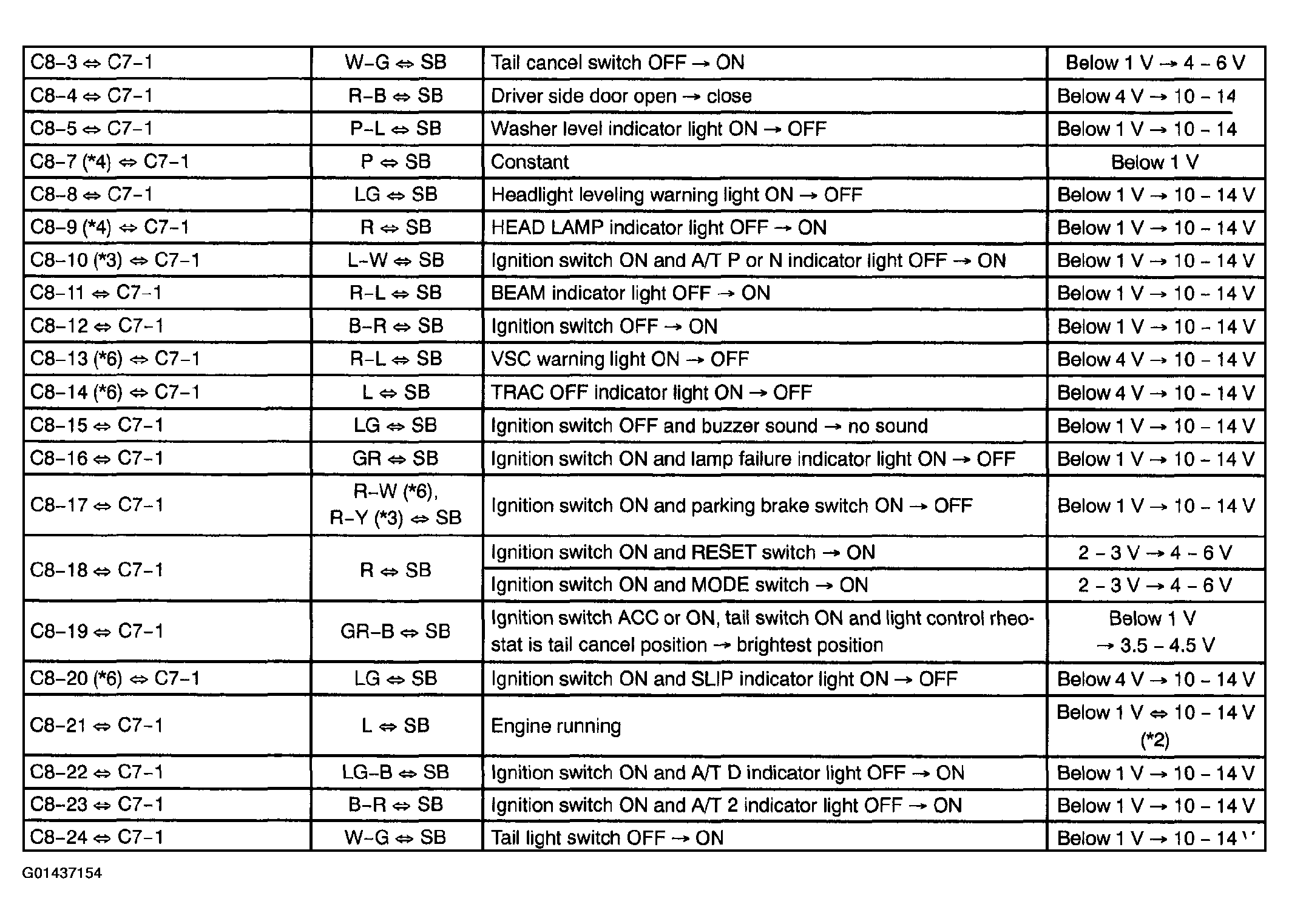

Fig 3: Terminal Reference Chart (2 Of 2)

G01437154

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

(*1): Reference: Using oscilloscope:

Fig 4: Oscilloscope Wave Graph (*1)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

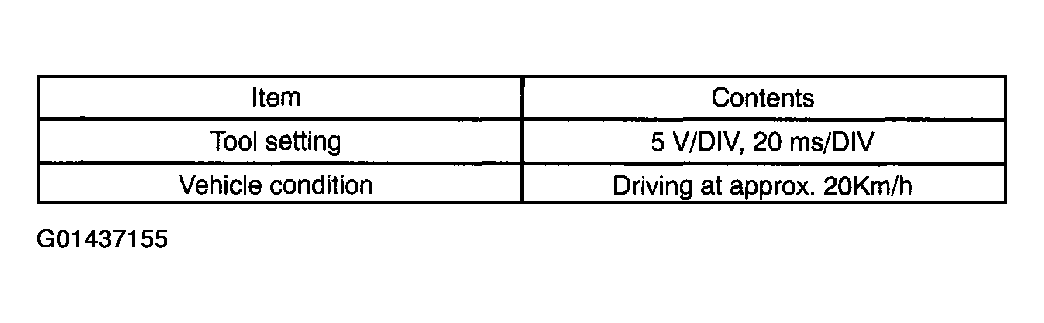

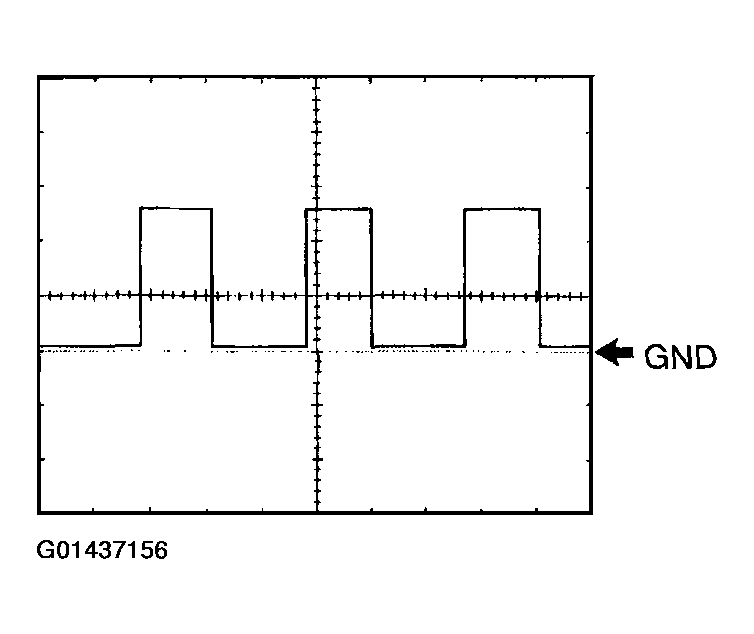

Fig 5: Oscilloscope Wave Chart (*1)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
(*2): Reference: Using oscilloscope:

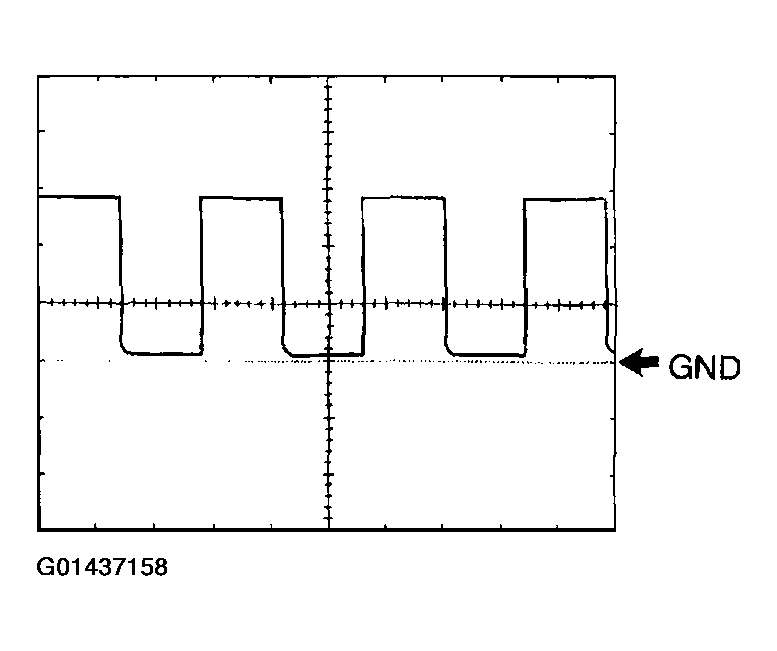

Fig 6: Oscilloscope Wave Graph (*2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

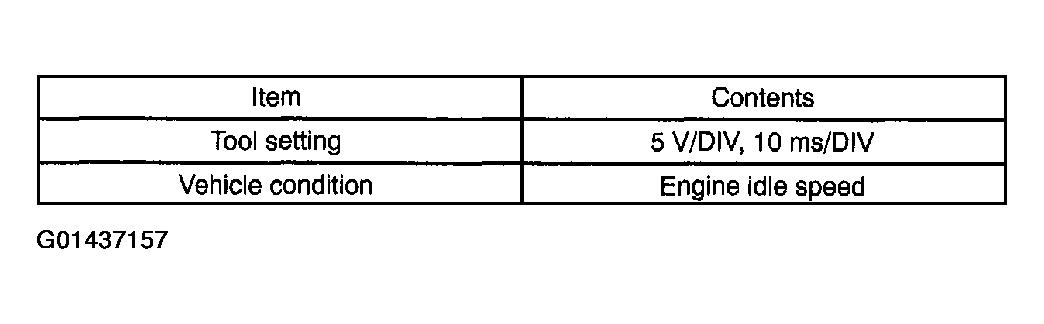

Fig 7: Oscilloscope Wave Chart (*2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*3: w/o VSC
*4: w/ DRL
*5: w/o DRL
*6: w/ VSC
