Combination Meter - Diagnosis: Location

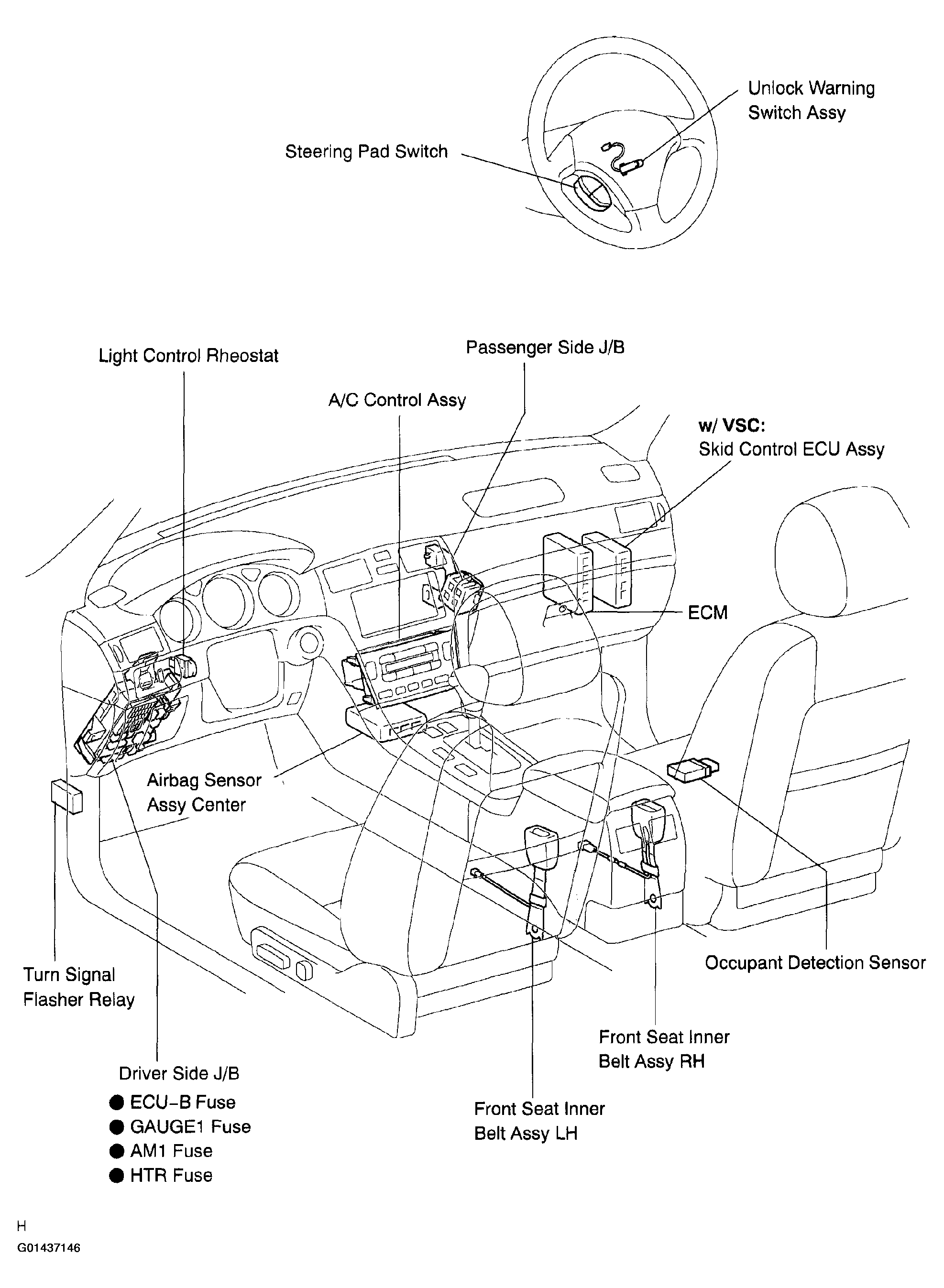

Fig 1: Identifying Combination Meter Components (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

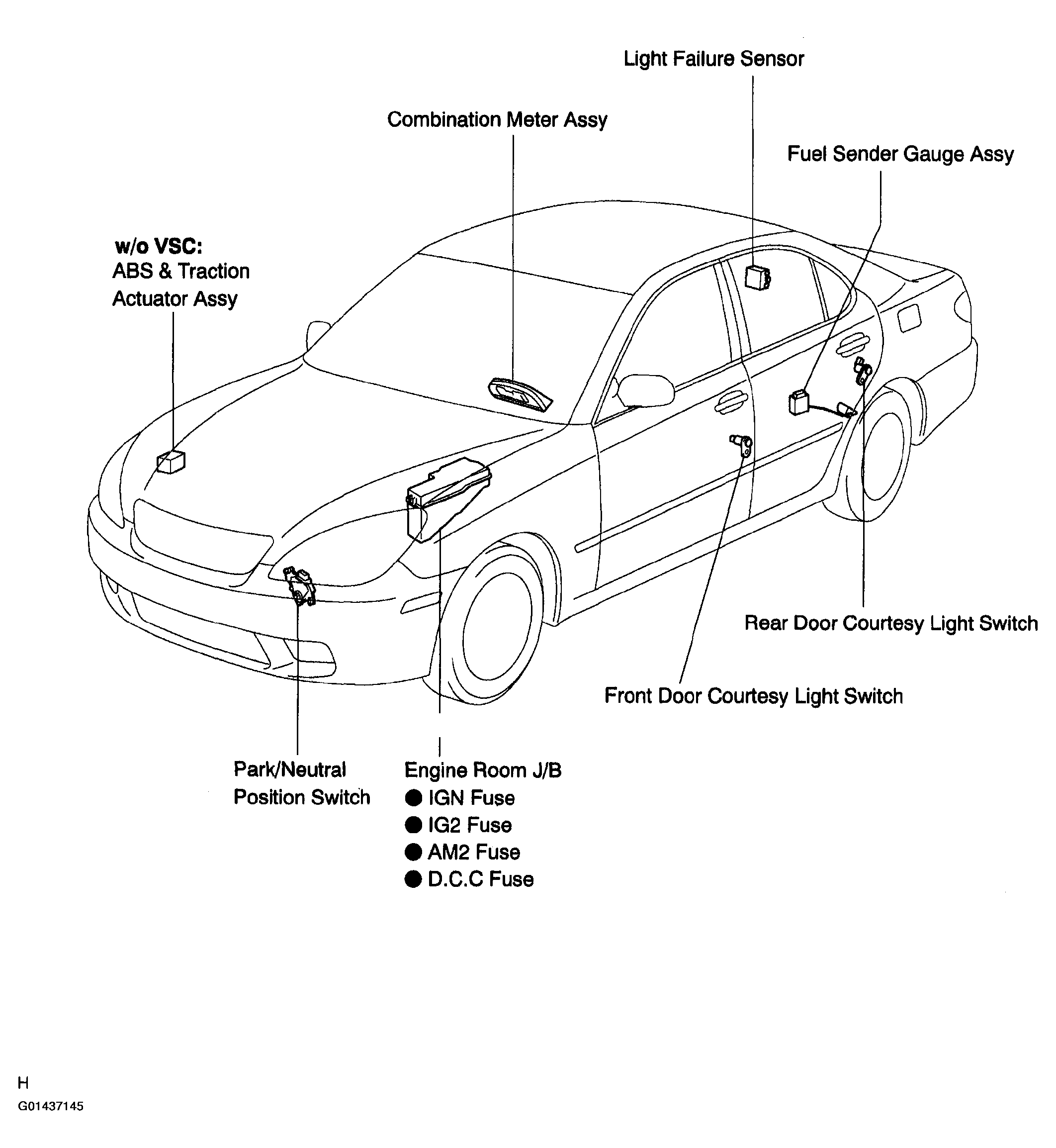

Fig 2: Identifying Combination Meter Components (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

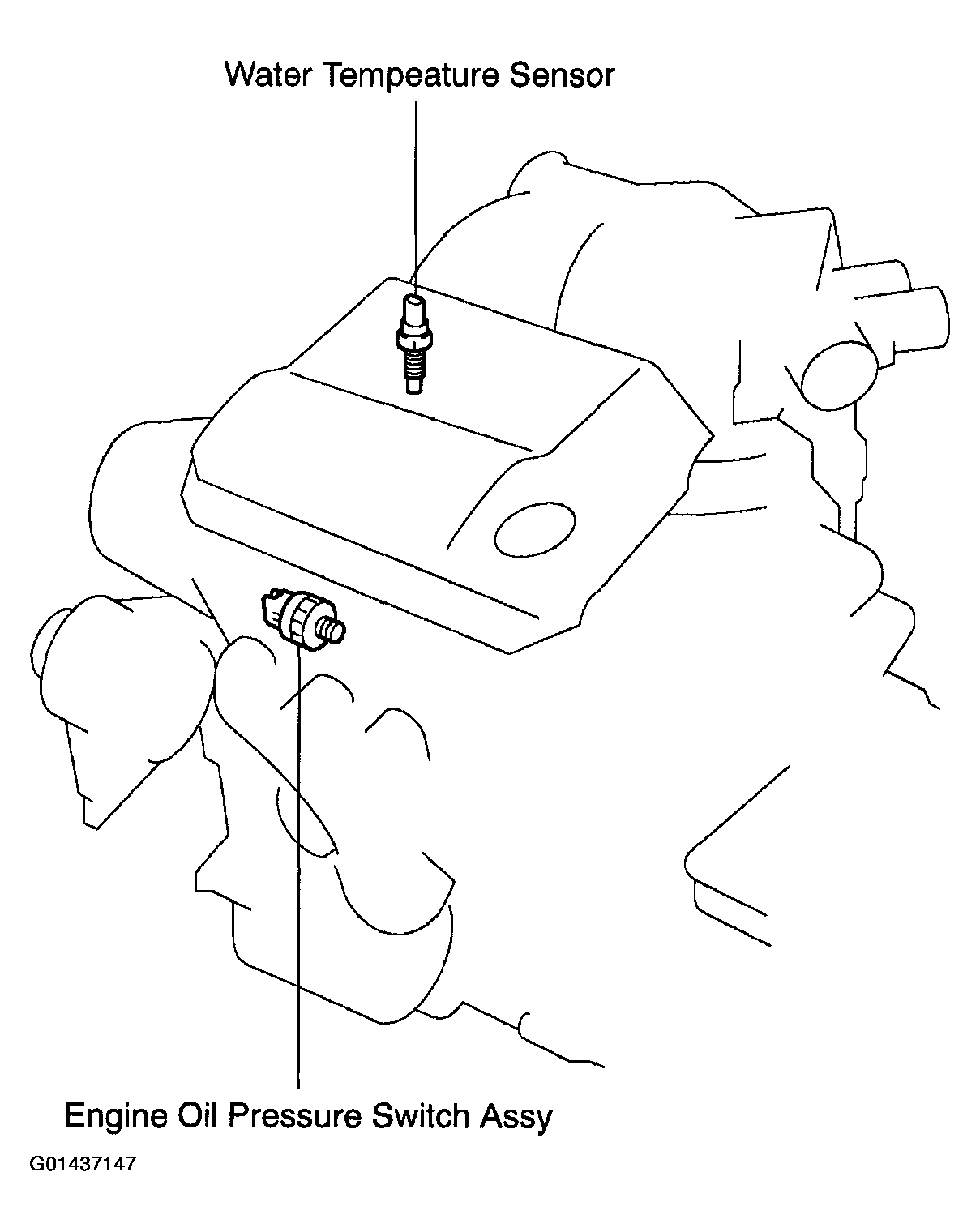

Fig 3: Identifying Water Temperature Sensor & Engine Oil Pressure Sensor Assy Locations

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

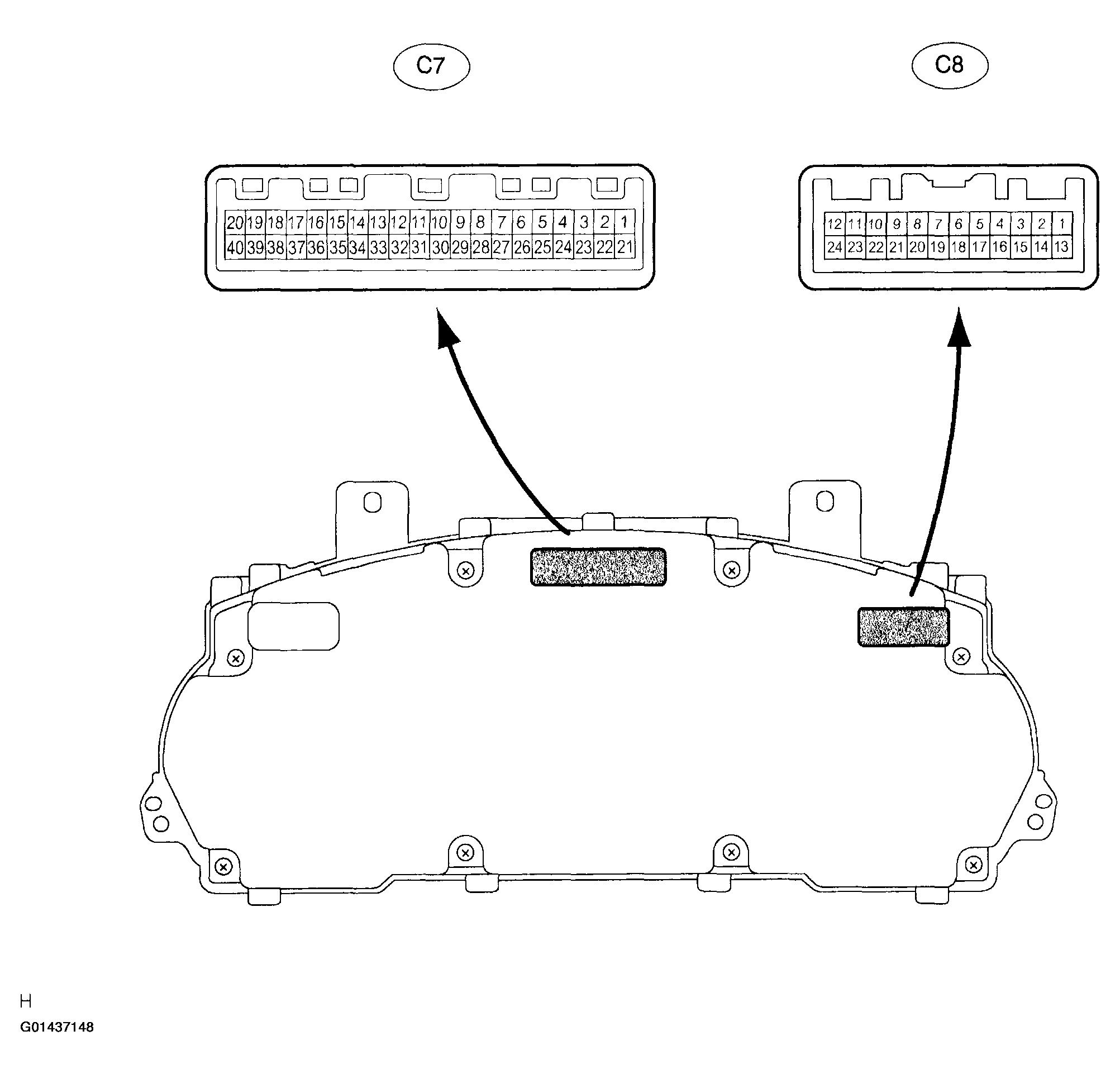

Fig 4: Identifying Terminals C7 & C8 Locations

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

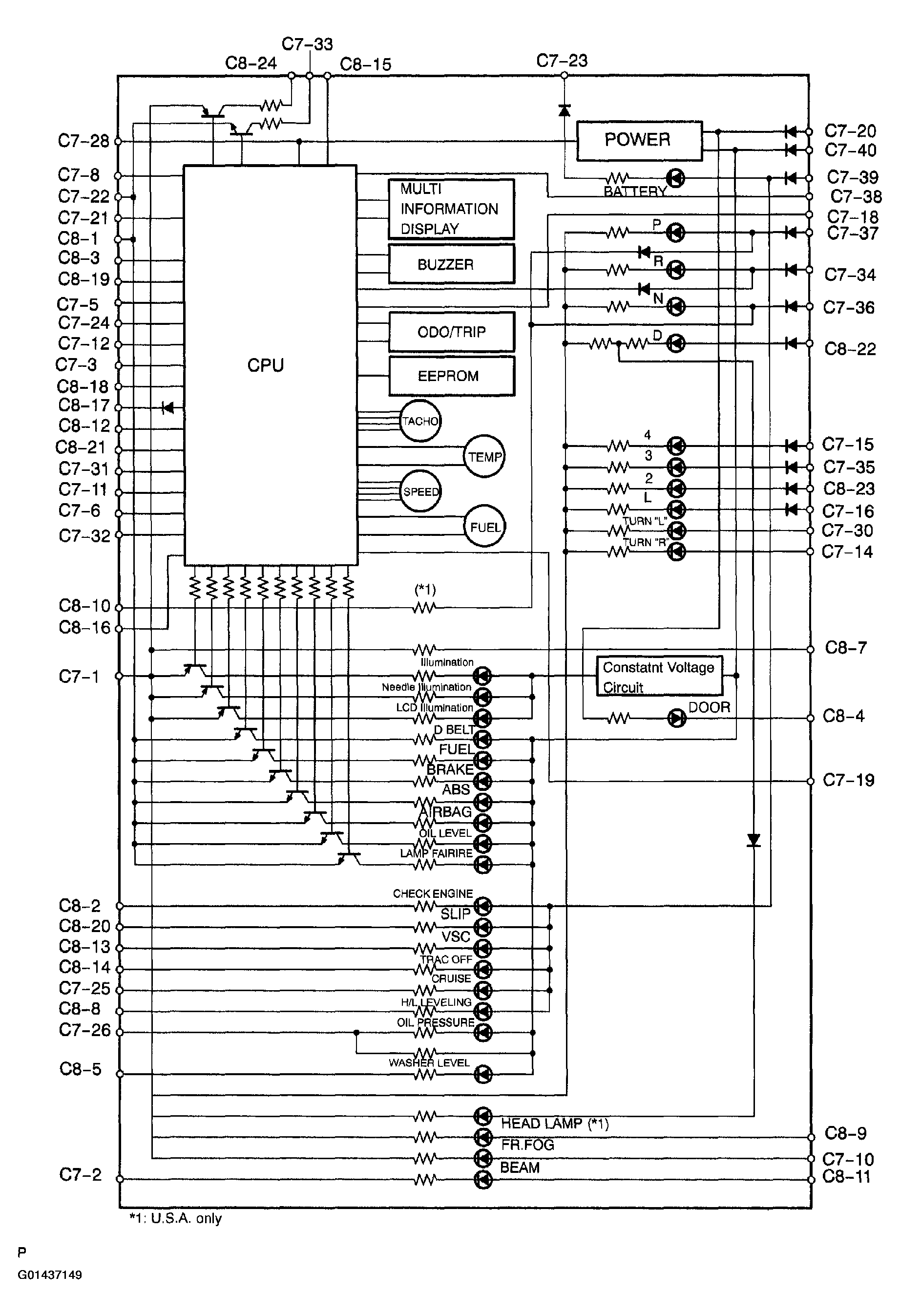

Fig 5: Identifying Combination Meter Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

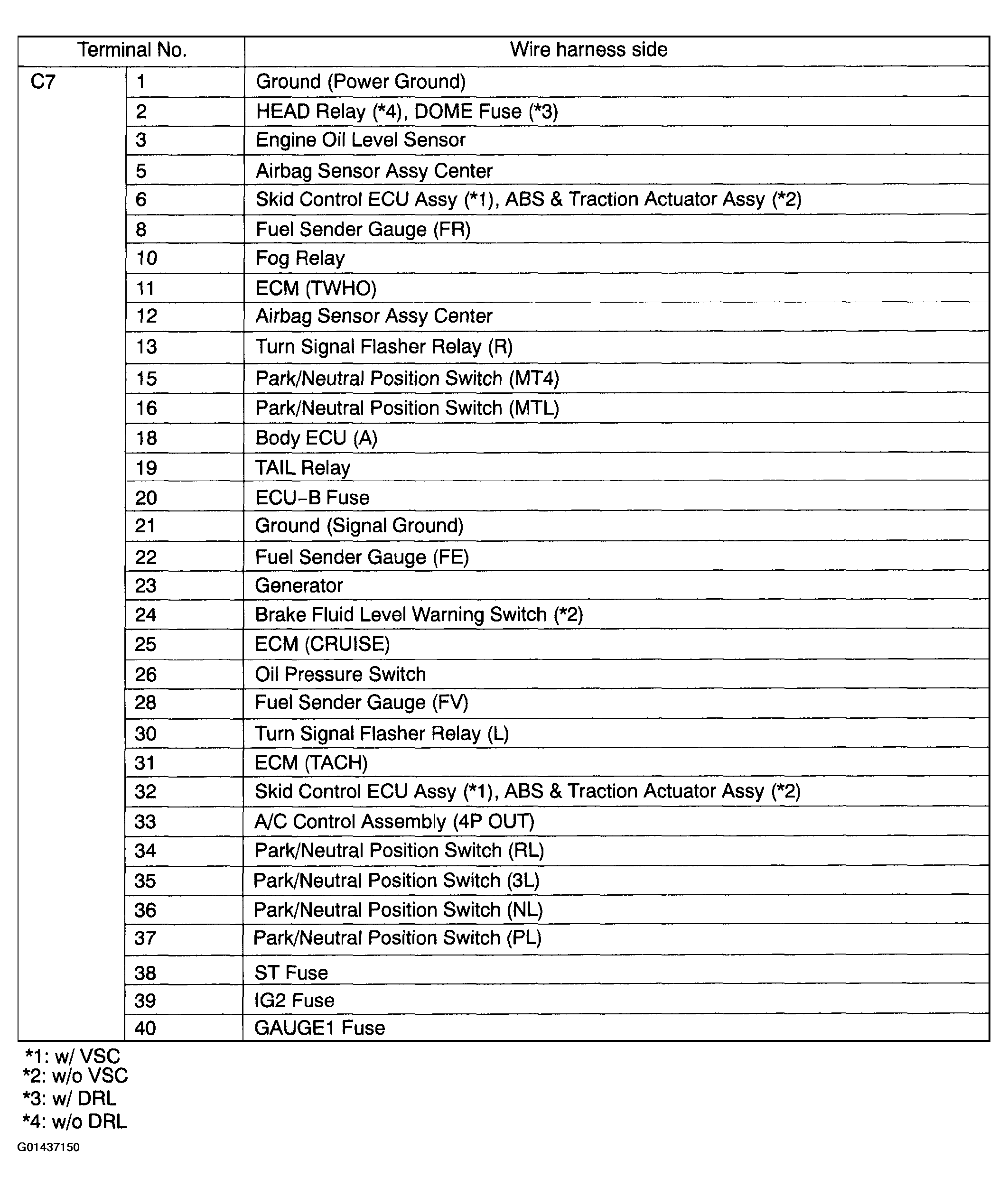

Fig 6: Terminal Reference Chart (C7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

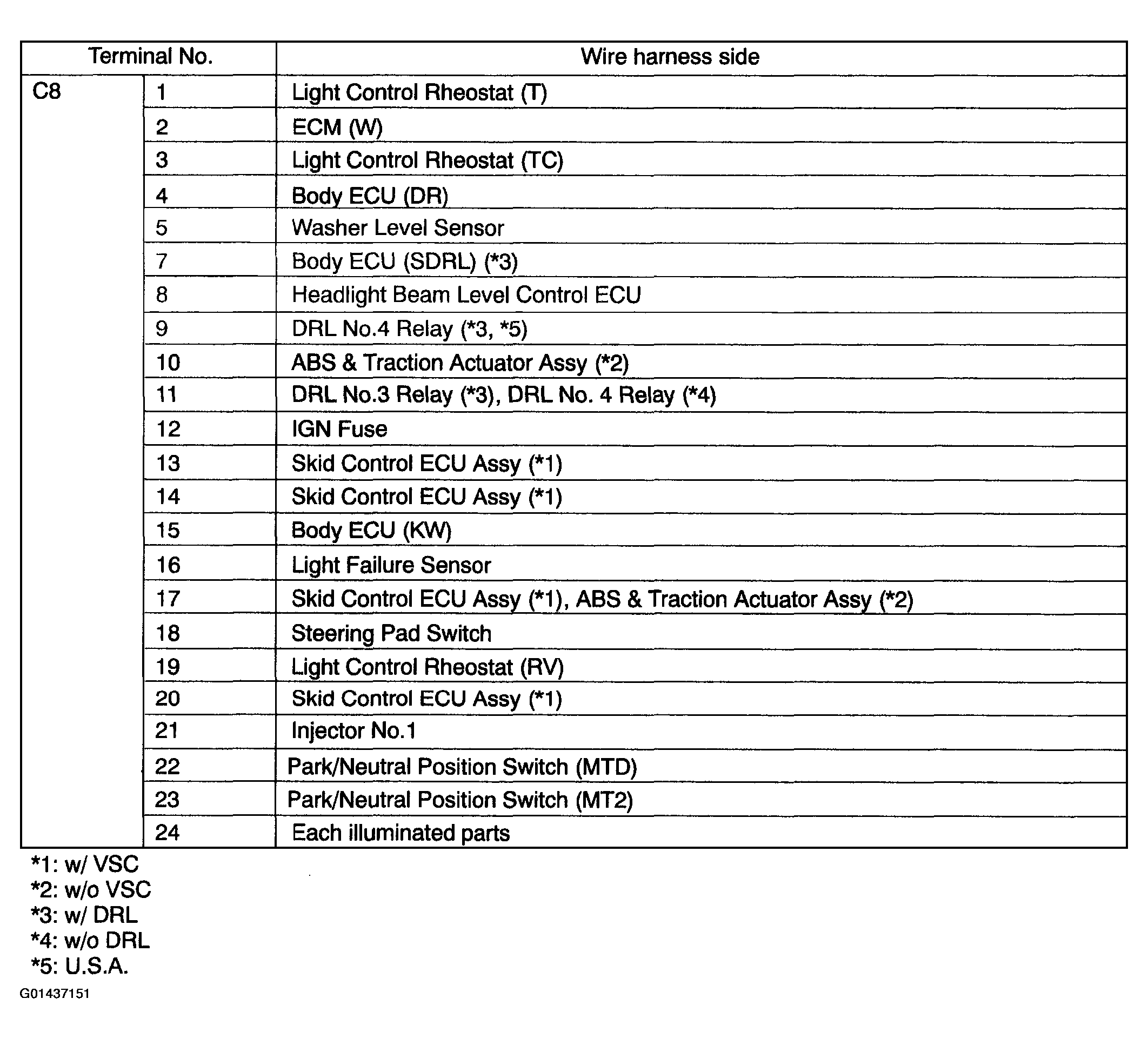

Fig 7: Terminal Reference Chart (C8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
